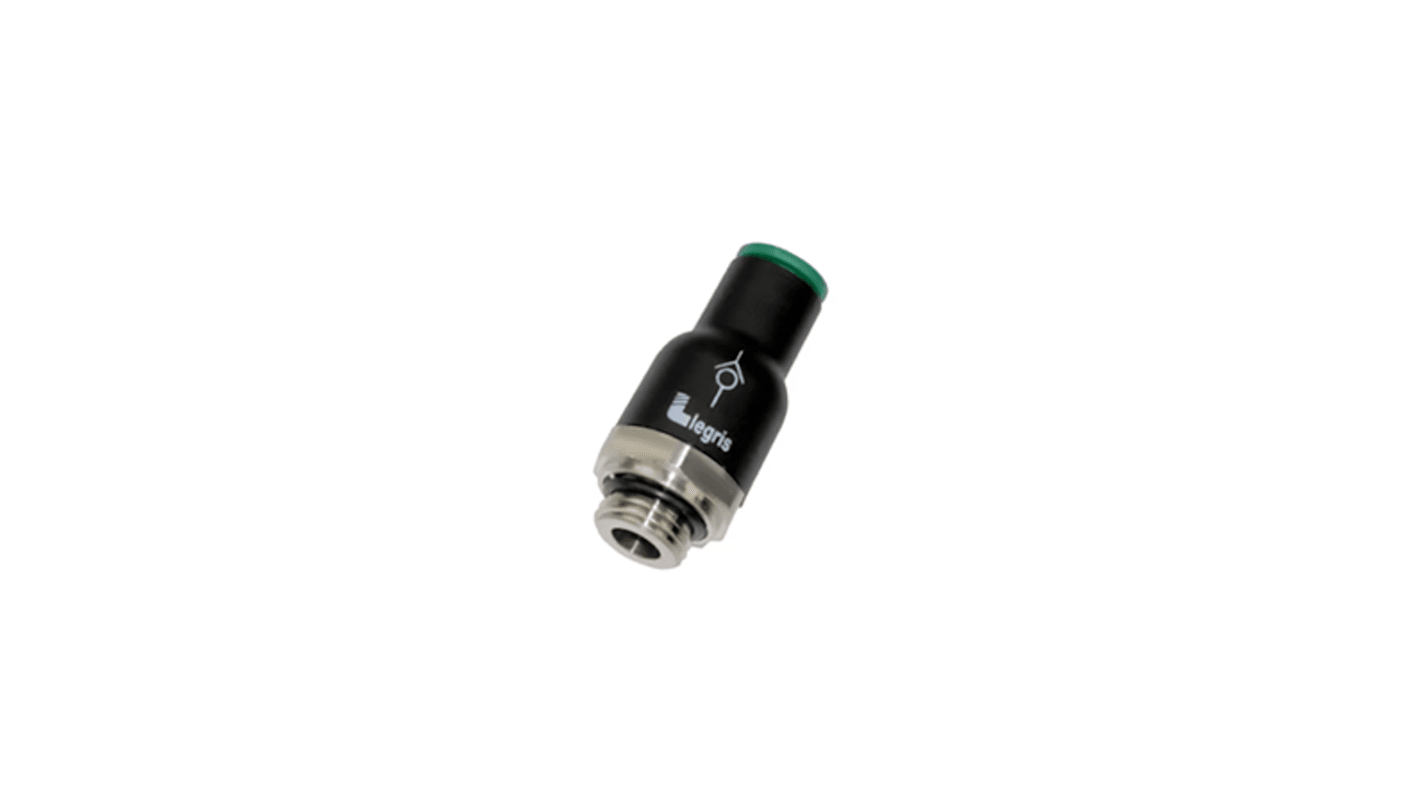

Legris 7984 Non Return Valve, 1 bar Inlet Male Threaded G 1/8 in 8 mm
- RS Stock No.:
- 281-5388
- Mfr. Part No.:
- 7984 08 10
- Brand:
- Legris
Subtotal (1 box of 10 units)*
£188.01
(exc. VAT)
£225.61
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £188.01 | £18.801 |
*price indicative
- RS Stock No.:
- 281-5388
- Mfr. Part No.:
- 7984 08 10
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Product Type | Non Return Valve | |
| Inlet Connection Type | Threaded | |
| Inlet Connection Size | 1/8 in | |
| Outlet Connection Size | 8 mm | |
| Series | 7984 | |
| Inlet Thread Standard | G | |
| Inlet Port Gender | Male | |
| Maximum Operating Pressure | 1 bar | |
| Select all | ||
|---|---|---|
Brand Legris | ||
Product Type Non Return Valve | ||
Inlet Connection Type Threaded | ||
Inlet Connection Size 1/8 in | ||
Outlet Connection Size 8 mm | ||
Series 7984 | ||
Inlet Thread Standard G | ||
Inlet Port Gender Male | ||
Maximum Operating Pressure 1 bar | ||
RoHS Status: Exempt
The Legris Pneumatic non return valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection. Using different colour codes for supply and exhaust versions, those valves avoid any mistakes in the installation process. By making the installation safer and more intuitive, installation costs are reduced.
Lip seals for improved sealing performance
Excellent vibration resistance
Compact
Lightweight
