SMC XT34 Check Valve, 0.7 Mpa Inlet Male Threaded 1/8 in, Outlet Female Threaded G 1/8 in
- RS Stock No.:
- 457-148
- Mfr. Part No.:
- XT34-303-F04
- Brand:
- SMC
Subtotal (1 unit)*
£241.66
(exc. VAT)
£289.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £241.66 |
*price indicative
- RS Stock No.:
- 457-148
- Mfr. Part No.:
- XT34-303-F04
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Check Valve | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Threaded | |
| Inlet Connection Size | 1/8 in | |
| Outlet Connection Size | 1/8 in | |
| Series | XT34 | |
| Inlet Port Gender | Male | |
| Minimum Operating Pressure | 0.1MPa | |
| Minimum Operating Temperature | -5°C | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, ISO 6358 | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Outlet Thread Standard | G | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Check Valve | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Threaded | ||
Inlet Connection Size 1/8 in | ||
Outlet Connection Size 1/8 in | ||
Series XT34 | ||
Inlet Port Gender Male | ||
Minimum Operating Pressure 0.1MPa | ||
Minimum Operating Temperature -5°C | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, ISO 6358 | ||
Maximum Operating Pressure 0.7 Mpa | ||
Outlet Thread Standard G | ||

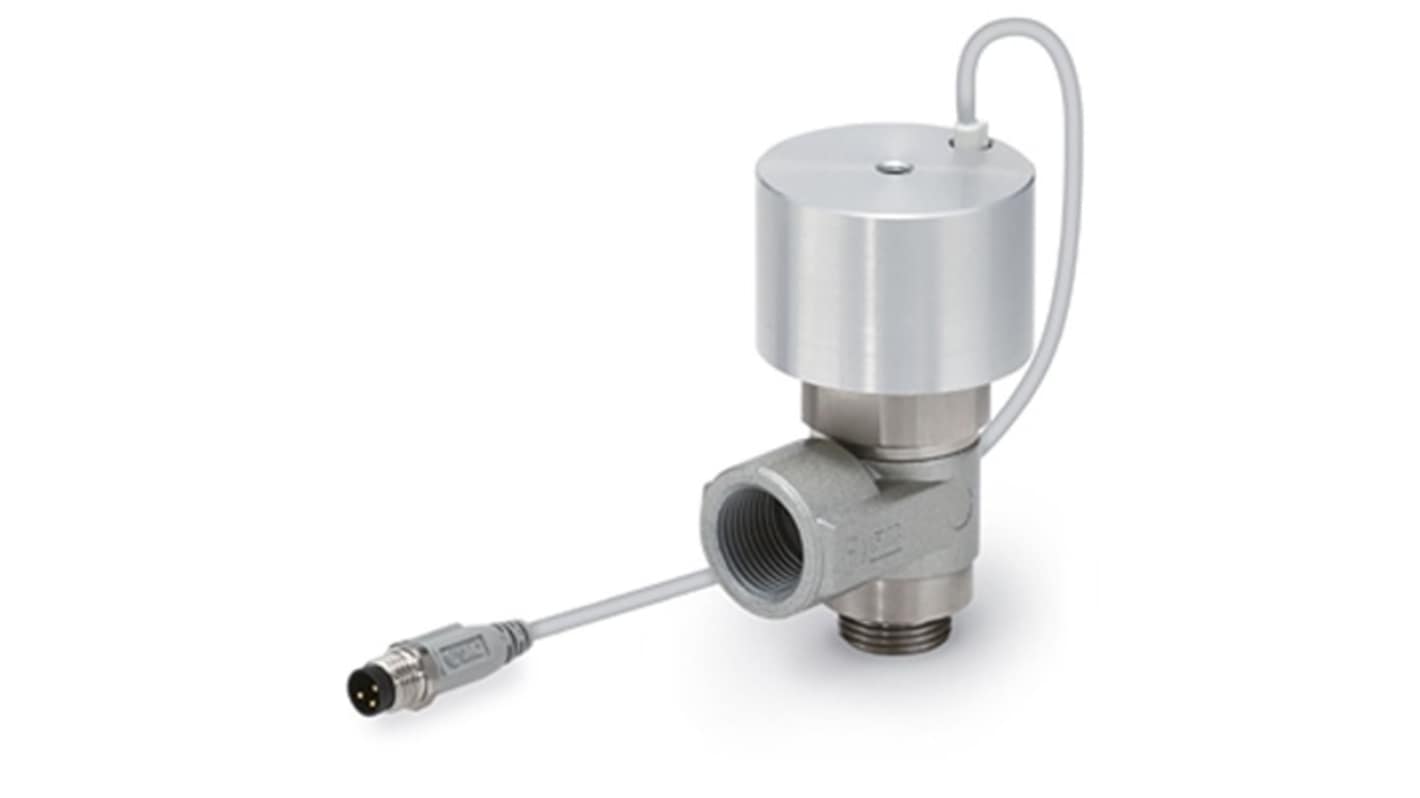

The SMC XT34-303 is a check valve with status detection, compliant with ISO 13849. It features a PNP static position detector (D-M9) and has a cable connection of 500mm with an M8 connector.
Operating pressure range 0.1 to 0.7 MPa
Ambient and operating temperatures -5 to 60°C frost-free
