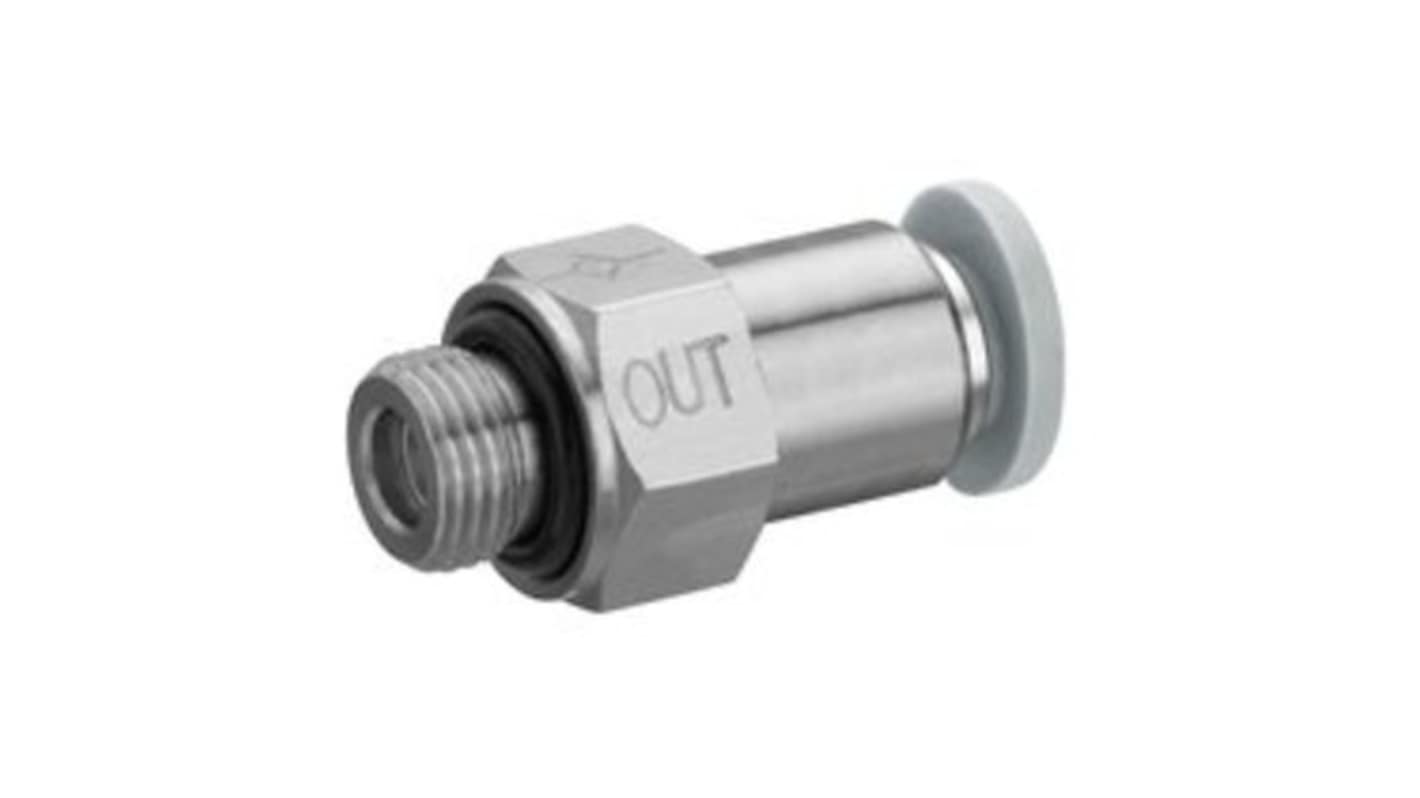

EMERSON – AVENTICS QR1-ANR Non Return Valve, 16 bar Threaded 6 mm Threaded G 1/4 in G
- RS Stock No.:
- 303-509
- Mfr. Part No.:
- R412005568
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 box of 5 units)*
£159.69
(exc. VAT)
£191.63
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £159.69 | £31.938 |
*price indicative
- RS Stock No.:
- 303-509
- Mfr. Part No.:
- R412005568
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Non Return Valve | |
| Inlet Connection Type | Threaded | |
| Inlet Connection Size | 6 mm | |
| Outlet Connection Type | Threaded | |
| Outlet Connection Size | 1/4 in G | |
| Series | QR1-ANR | |
| Minimum Operating Pressure | 0.8bar | |
| Material | Brass (Housing), Polyamide, Acrylonitrile Butadiene Rubber (Seal) | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS Exempt | |
| Maximum Operating Pressure | 16 bar | |
| Outlet Thread Standard | G | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Non Return Valve | ||
Inlet Connection Type Threaded | ||
Inlet Connection Size 6 mm | ||
Outlet Connection Type Threaded | ||
Outlet Connection Size 1/4 in G | ||
Series QR1-ANR | ||
Minimum Operating Pressure 0.8bar | ||
Material Brass (Housing), Polyamide, Acrylonitrile Butadiene Rubber (Seal) | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS Exempt | ||
Maximum Operating Pressure 16 bar | ||
Outlet Thread Standard G | ||
RoHS Status: Exempt
The Aventics Non-return valve are designed for safety relevant processes. The valves enable automatic blocking of the air supply to immediately stop the working stroke.
Poppet valve
Compressed air connection 1 is 6mm diameter
Compressed air connection 2 is G 1 by 14
Material release ring is polyamide
