- RS Stock No.:
- 210-2877
- Mfr. Part No.:
- 03036802RS
- Brand:
- Norgren
2 In stock - FREE next working day delivery available
Added
Price Each
£130.57
(exc. VAT)
£156.68
(inc. VAT)
Units | Per unit |
1 - 4 | £130.57 |
5 - 9 | £126.65 |
10 + | £122.48 |
- RS Stock No.:
- 210-2877
- Mfr. Part No.:
- 03036802RS
- Brand:
- Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

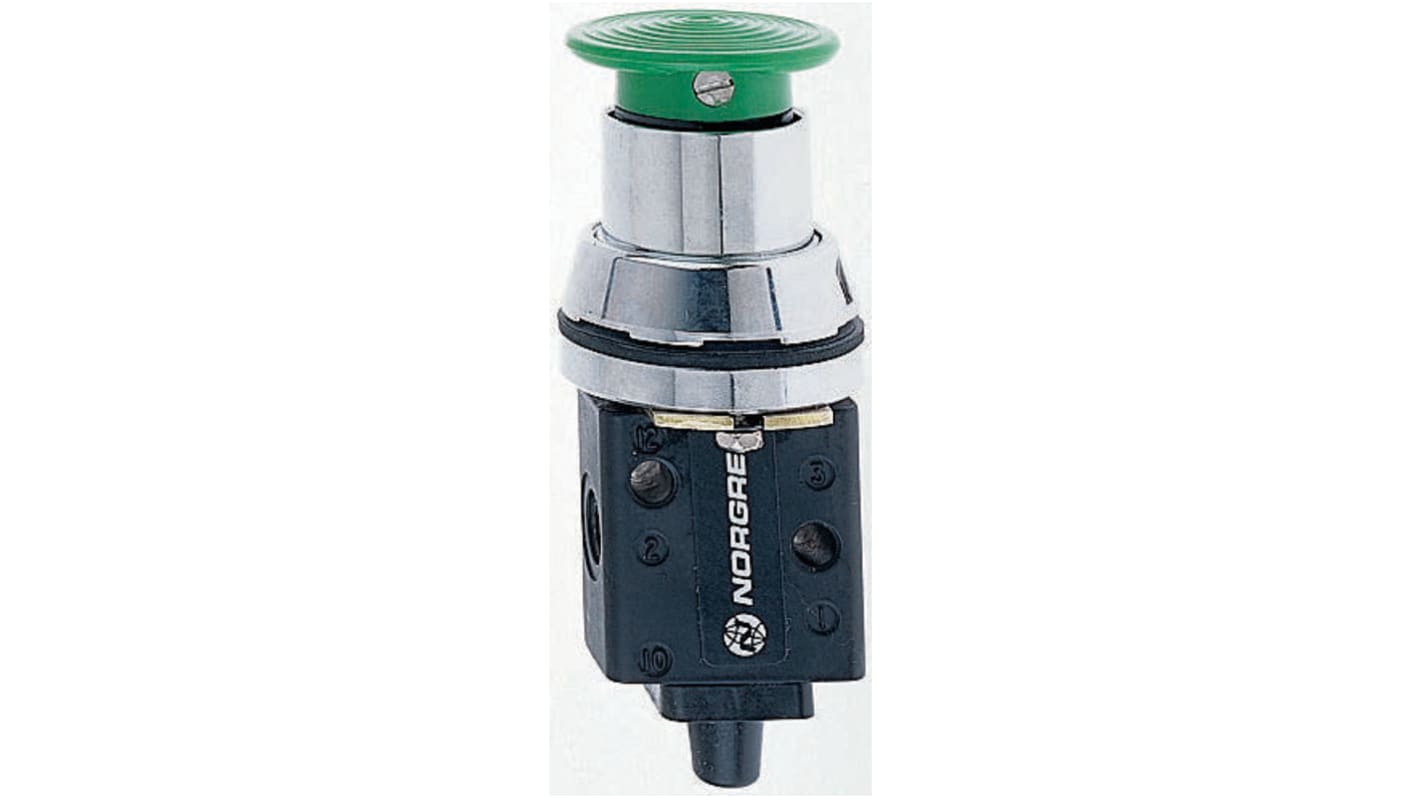

IMI Norgren Pneumatic Manual Control Valve, 335L/min Maximum Flow Rate, -0.9 to 10 Bar Operating Pressure - 03 Series - 03036802RS
Keep airflow control at your fingertips with this pneumatic manual control valve from IMI Norgren. A 3/2 port configuration lets you easily divert air between different lines, while the push button gives you a super-simple switching method. Thanks to the spool operation, this versatile valve is capable of working at pressures between -0.9 and 10 bar. This makes it a great all-rounder for vacuum and low-to-medium-power pneumatic systems. As the unit handles flow rates up to 335 litres per minute, your processes can go full steam ahead.
Features & Benefits
Performs reliably in a temperature range from 0°C to +70°C
Nitrile rubber seals for durability and leak-free performance
Versatile component works with both lubricated and non-lubricated air
Possible to connect multiple air supplies to keep systems flexible
Nitrile rubber seals for durability and leak-free performance
Versatile component works with both lubricated and non-lubricated air
Possible to connect multiple air supplies to keep systems flexible
Applications
Industrial automation
Pneumatic cylinders
Actuators
Vacuum pumps
Pneumatic cylinders
Actuators
Vacuum pumps
How do I mount this pneumatic manual control valve?
Through-holes in the body mean you can mount this valve in-line, making installation simple and space-saving. A G1/8 thread ensures a secure fit with standard pipelines.
Push Button & Selector - Norgren
3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.
Specifications
Attribute | Value |
---|---|
Control Mechanism | Push Button |
Connection Port Thread | G 1/8 |
Function | 3/2 |
Thread Size | 1/8in |
Thread Standard | G |
Manufacturer Series | 03 |
Control Button/Switch Colour | Black |
Maximum Operating Pressure | 10 bar |
Body Material | Zinc Alloy |
Maximum Flow Rate | 335L/min |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +70°C |
Number of Positions | 2 |
Number of Ports | 3 |
