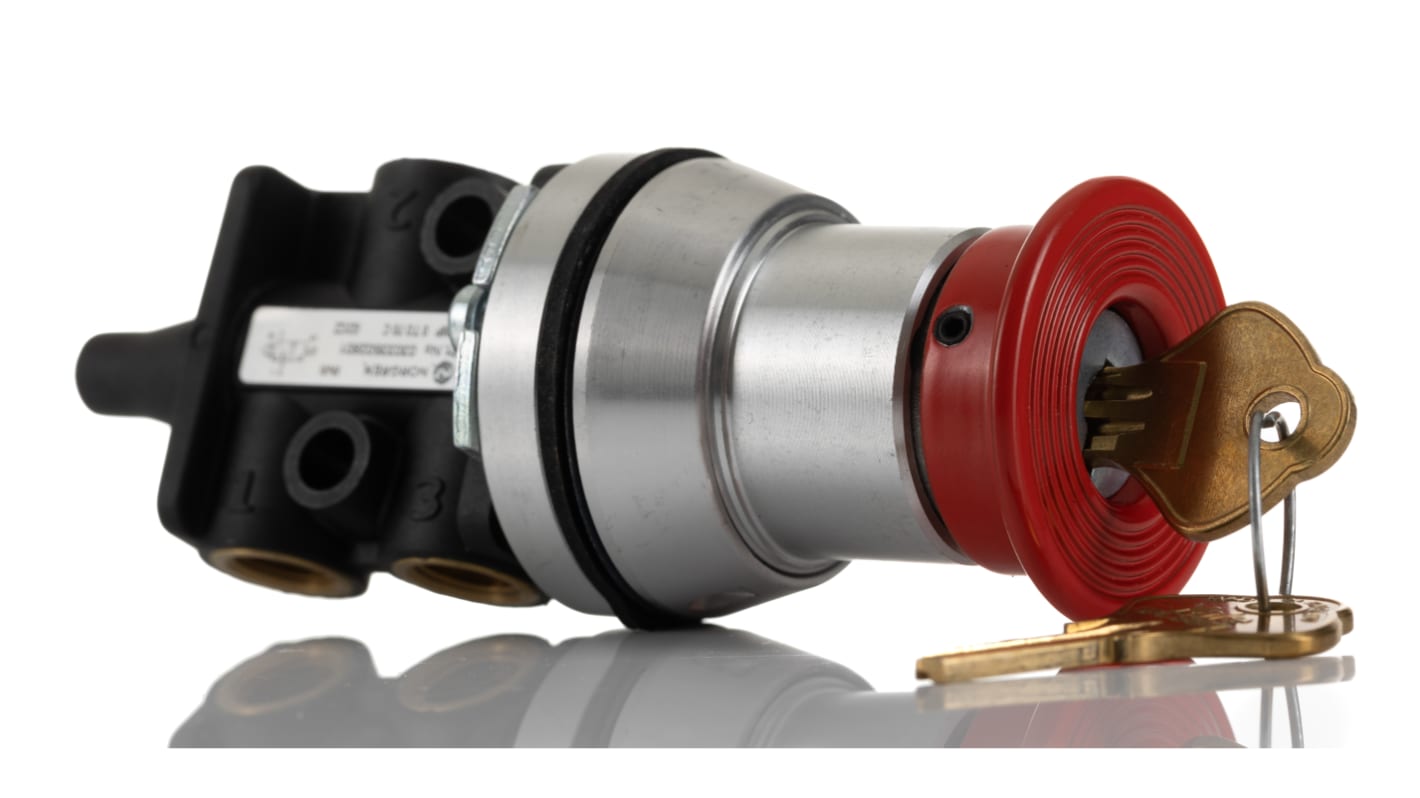

Norgren Push Button 3/2 Pneumatic Manual Control Valve 03 Series, G 1/8, 1/8in, III B
- RS Stock No.:
- 210-2833
- Mfr. Part No.:
- 03033502801
- Brand:
- Norgren
Save 6% when you buy 10 units
Subtotal (1 unit)*
£263.20
(exc. VAT)
£315.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £263.20 |
5 - 9 | £255.04 |
10 + | £246.89 |
*price indicative
- RS Stock No.:
- 210-2833
- Mfr. Part No.:
- 03033502801
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Control Mechanism | Push Button | |
Connection Port Thread | G 1/8 | |
Function | 3/2 | |
Thread Size | 1/8in | |
Thread Standard | G | |
Manufacturer Series | 03 | |
Control Button/Switch Colour | Red | |
Maximum Operating Pressure | 10 bar | |
Body Material | Die Cast Aluminium Alloy | |
Maximum Flow Rate | 335L/min | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +70°C | |
Number of Positions | 2 | |
Number of Ports | 3 | |
Model Number p | III B | |
Select all | ||
---|---|---|
Brand Norgren | ||
Control Mechanism Push Button | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8in | ||
Thread Standard G | ||
Manufacturer Series 03 | ||
Control Button/Switch Colour Red | ||
Maximum Operating Pressure 10 bar | ||
Body Material Die Cast Aluminium Alloy | ||
Maximum Flow Rate 335L/min | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +70°C | ||
Number of Positions 2 | ||
Number of Ports 3 | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Manual Control Valve, -0.9 to 10 Bar Operating Pressure, 200g Weight - 03Series - 03033502801
Achieve close control over your airflow with this 3/2 pneumatic manual control valve from IMI Norgren. You can use it to direct compressed air from one tube to another. With a palm button, it's a cinch to operate. Since the unit features a maximum flow rate of 335l/min, it can handle a high volume of air for suitability in large pneumatic systems. Its die-cast aluminium body protects it from corrosion and impact damage to deliver a long service life. For durable use in extreme environments, it has a broad operating temperature range between 0°C and +70°C.
Features & Benefits
• G1/8 port thread for wide compatibility
• Red push button makes it easy to identify
• Nitrile rubber seals deliver resistance to chemicals
• Key actuation available for secure use by authorised personnel
• Red push button makes it easy to identify
• Nitrile rubber seals deliver resistance to chemicals
• Key actuation available for secure use by authorised personnel
Applications
• Oil and gas plants
• Chemical processing
• Water treatment facilities
• HVAC systems
• Chemical processing
• Water treatment facilities
• HVAC systems
How do I mount this manual control valve?
You mount it using the through-holes located in the valve body. This method ensures a strong and reliable connection.
Push Button & Selector - Norgren
3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.
