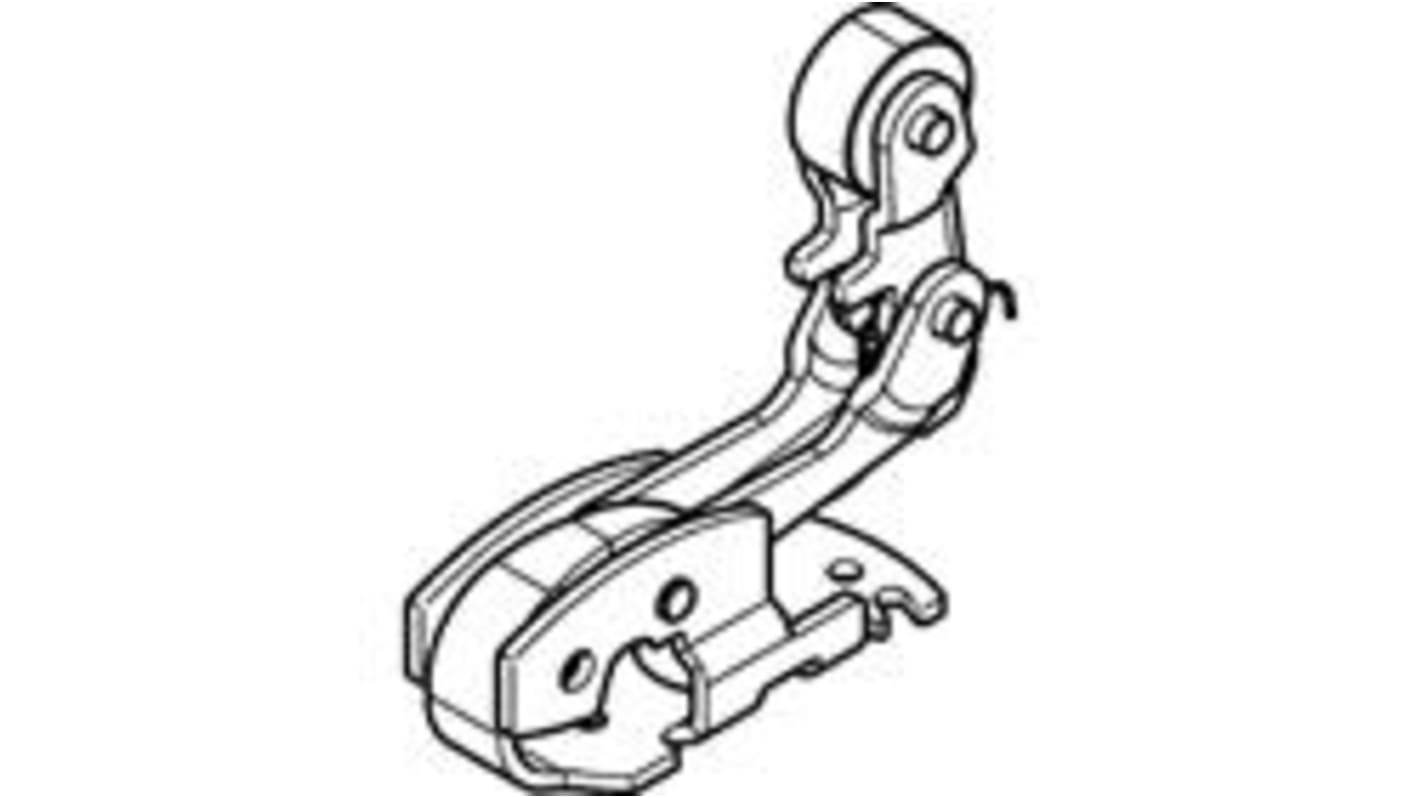

Festo Roller Lever Return Pneumatic Manual Control Valve VAOM Series, 2.5mm, 8049237

View this category
Bulk discount available

Subtotal (1 unit)*

£35.20

(exc. VAT)

£42.24

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£35.20
5 +£33.79

*price indicative

RS Stock No.:
181-6456
Mfr. Part No.:
VAOM-R4-20-D2-32
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Control Mechanism

Roller Lever

Function

Return

Thread Size

2.5mm

Manufacturer Series

VAOM

Maximum Operating Pressure

8bar

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+60°C

Model Number p

8049237

COO (Country of Origin):
HU
With the actuator attachments VAOM, it is possible to extend stem actuated valves from the series VMEF. If an actuator attachment VAOM is screwed onto the corresponding stem actuated valve from the series VMEF, it creates a toggle lever valve.Toggle lever valves can only be actuated by a cam from one side, only in one direction (forwards movement). If control is applied from the other direction (backwards movement), the valve is not actuated. The actuator attachment VAOM can also be used to replace mechanically worn actuators for toggle lever valves.
