Festo Roller Lever Return Pneumatic Manual Control Valve VAOM Series, 2.5mm, 8049236
- RS Stock No.:
- 181-6455
- Mfr. Part No.:
- VAOM-R4-20-D2-52
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£35.20
(exc. VAT)
£42.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £35.20 |
5 + | £33.79 |
*price indicative
- RS Stock No.:
- 181-6455
- Mfr. Part No.:
- VAOM-R4-20-D2-52
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Control Mechanism | Roller Lever | |
Function | Return | |
Thread Size | 2.5mm | |
Manufacturer Series | VAOM | |
Maximum Operating Pressure | 8bar | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Model Number p | 8049236 | |
Select all | ||
---|---|---|
Brand Festo | ||
Control Mechanism Roller Lever | ||
Function Return | ||
Thread Size 2.5mm | ||
Manufacturer Series VAOM | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Model Number p 8049236 | ||
- COO (Country of Origin):
- HU

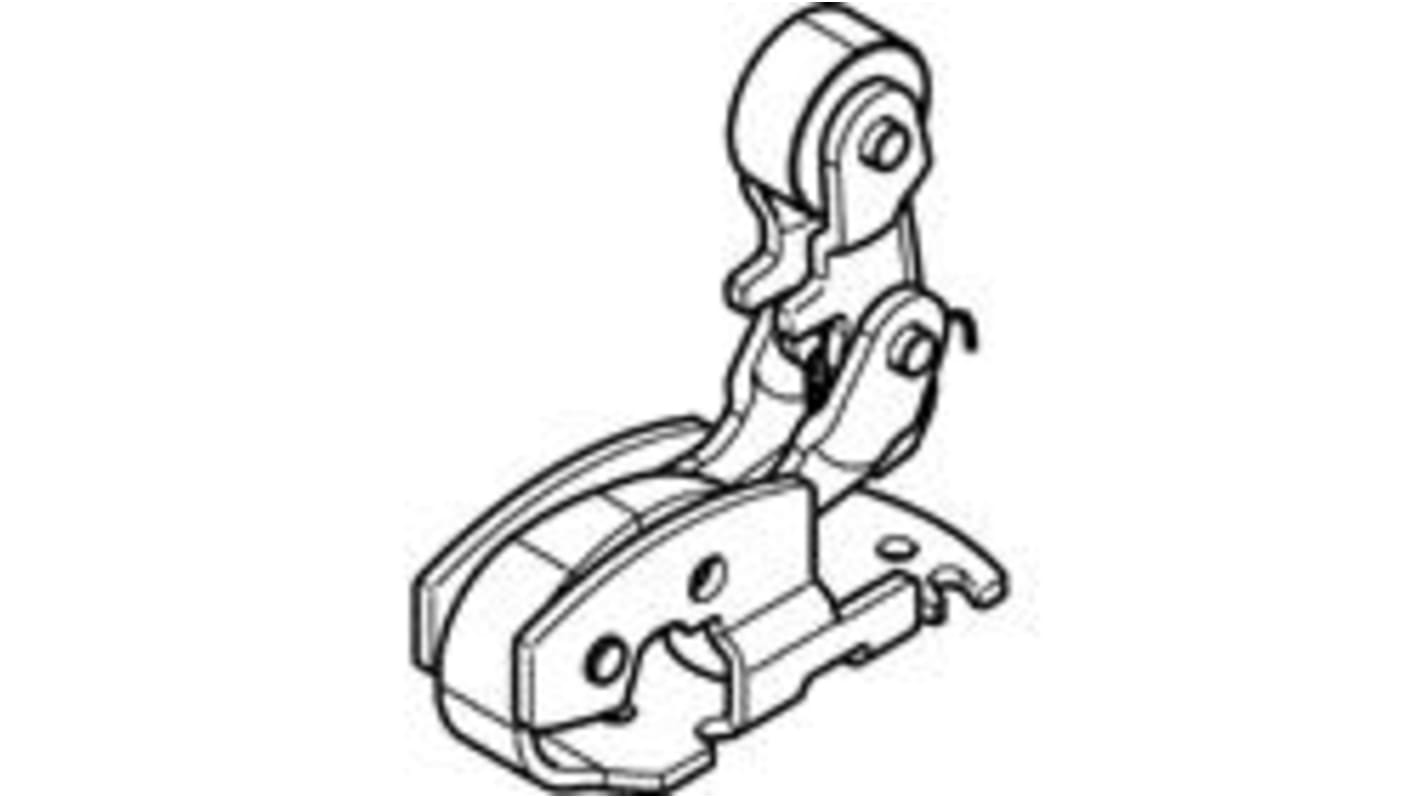

With the actuator attachments VAOM, it is possible to extend stem actuated valves from the series VMEF. If an actuator attachment VAOM is screwed onto the corresponding stem actuated valve from the series VMEF, it creates a toggle lever valve.Toggle lever valves can only be actuated by a cam from one side, only in one direction (forwards movement). If control is applied from the other direction (backwards movement), the valve is not actuated. The actuator attachment VAOM can also be used to replace mechanically worn actuators for toggle lever valves.
