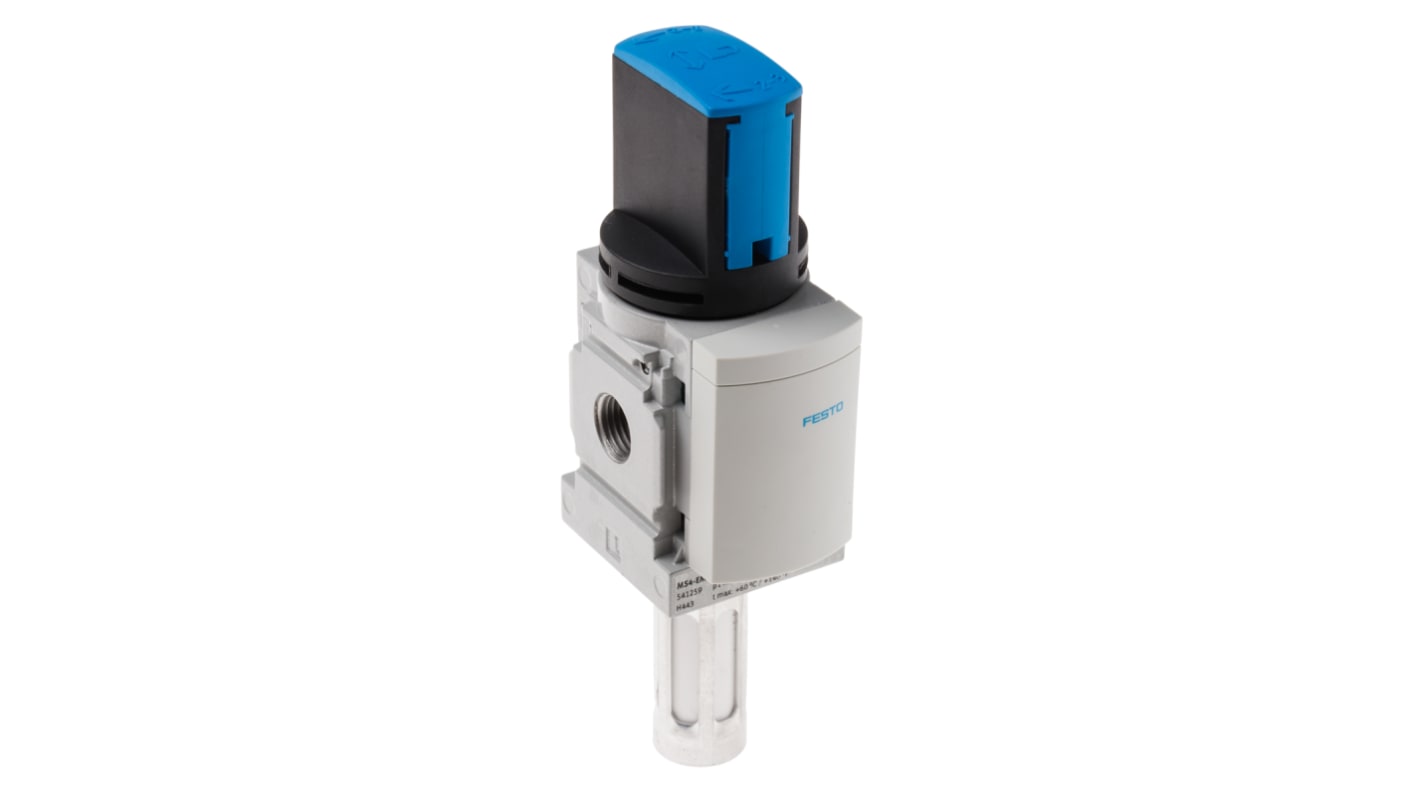

Festo Rotary 3/2 Pneumatic Manual Control Valve MS Series, G 1/4, 1/4in, 541259
- RS Stock No.:
- 121-5649
- Mfr. Part No.:
- MS4-EM1-1/4-S
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£54.54
(exc. VAT)
£65.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £54.54 |
| 5 - 9 | £52.36 |
| 10 + | £50.18 |
*price indicative
- RS Stock No.:
- 121-5649
- Mfr. Part No.:
- MS4-EM1-1/4-S
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Control Mechanism | Rotary | |
| Connection Port Thread | G 1/4 | |
| Function | 3/2 | |
| Thread Size | 1/4in | |
| Thread Standard | G | |
| Manufacturer Series | MS | |
| Control Button/Switch Colour | Black | |
| Maximum Operating Pressure | 14 bar | |
| Body Material | Aluminium | |
| Maximum Flow Rate | 2200L/min | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Number of Ports | 3 | |
| Number of Positions | 2 | |
| Model Number p | 541259 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Control Mechanism Rotary | ||
Connection Port Thread G 1/4 | ||
Function 3/2 | ||
Thread Size 1/4in | ||
Thread Standard G | ||
Manufacturer Series MS | ||
Control Button/Switch Colour Black | ||
Maximum Operating Pressure 14 bar | ||
Body Material Aluminium | ||
Maximum Flow Rate 2200L/min | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Number of Ports 3 | ||
Number of Positions 2 | ||
Model Number p 541259 | ||
- COO (Country of Origin):
- HU
Festo Pneumatic Manual Control Valve, Aluminium Body, 14 Bar Maximum Operating Pressure - MS4-EM1-1/4-S
Get a handle on your airflow with this manual control valve from Festo. It has a rotary knob that makes it a doddle to turn your supply on and off, meaning you can safely start and stop processes or manage pressure. Direct piloting ensures your switching is responsive. With a maximum operating pressure of 14 bar and a flow rate of 2,200L/min, it has no trouble keeping up with high-power systems. Thanks to the shape of the knob, you can see at a glance whether the valve is open or closed. As it's mountable in any position along your line, this is a versatile bit of kit.
Features & Benefits
• Aluminium body is highly durable and resists corrosion
• Free from copper and PTFE, meaning it won't contaminate your clean air supply
• Wide operating temperature range of -10°C to +60°C, to handle harsh conditions
• Free from copper and PTFE, meaning it won't contaminate your clean air supply
• Wide operating temperature range of -10°C to +60°C, to handle harsh conditions
Applications
• Process control
• Food and beverage
• Packaging equipment
• Assembly lines
• Food and beverage
• Packaging equipment
• Assembly lines
Can I combine this pneumatic manual control valve with other components?
Yes. The modular design of this control valve makes it easy to add accessories such as a pressure gauge (250-2686) and silencer (121-4320).
