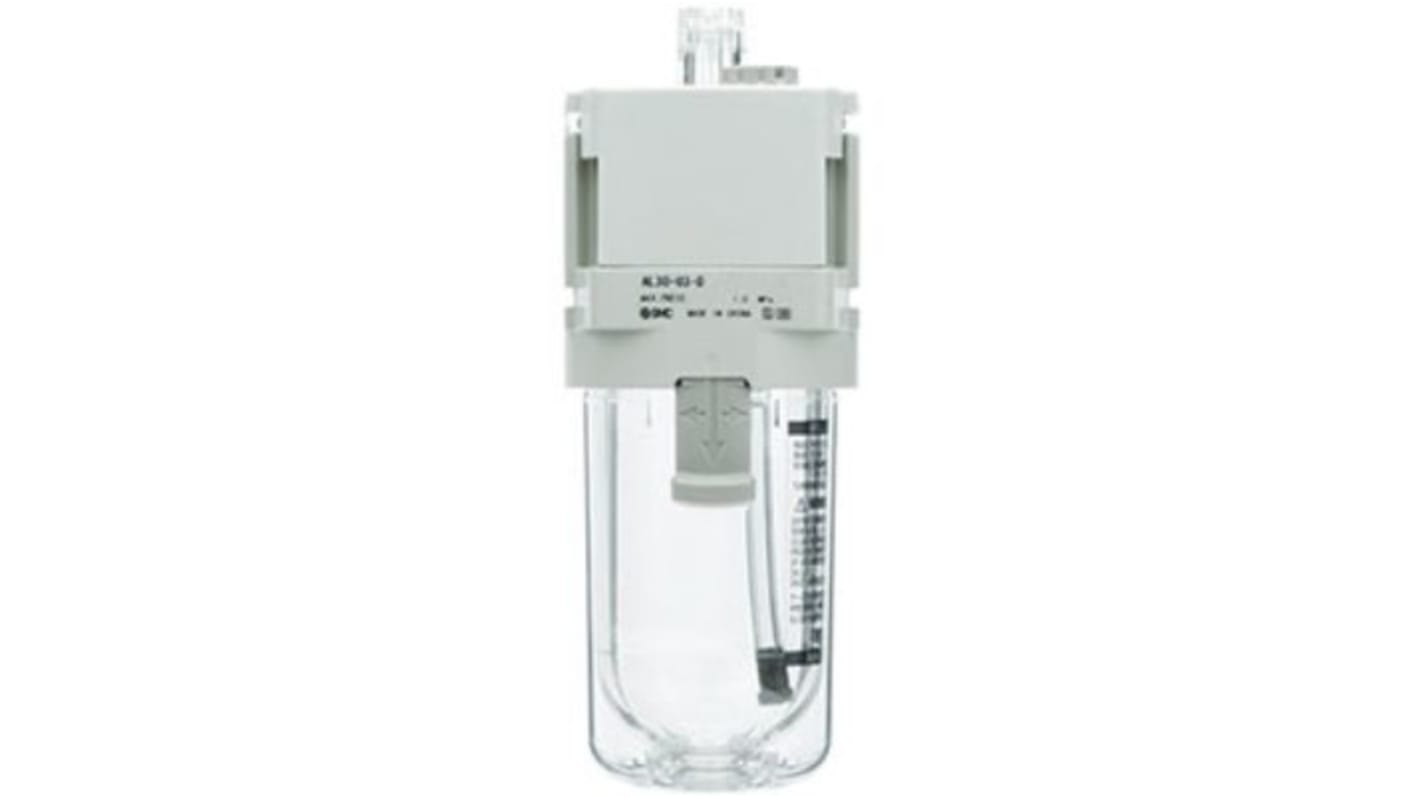

SMC Pneumatic Air Lubricator 10 bar, AL-D Series
- RS Stock No.:
- 255-3274
- Mfr. Part No.:
- AL20-F01-D
- Brand:
- SMC
Subtotal (1 unit)*
£32.14
(exc. VAT)
£38.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.14 |
*price indicative
- RS Stock No.:
- 255-3274
- Mfr. Part No.:
- AL20-F01-D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Air Lubricator | |
| Series | AL-D | |
| Connection Thread Standard | G | |
| Oil Capacity | 25cm³ | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Overall Width | 40mm | |
| Overall Height | 115mm | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Air Lubricator | ||
Series AL-D | ||
Connection Thread Standard G | ||
Oil Capacity 25cm³ | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Overall Width 40mm | ||
Overall Height 115mm | ||
Bowl Material Polycarbonate | ||
The SMC modular lubricator from AL-D series is suitable for body size 20, it comes with G type pipe threads, the port size is for this product is 1/8.
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
