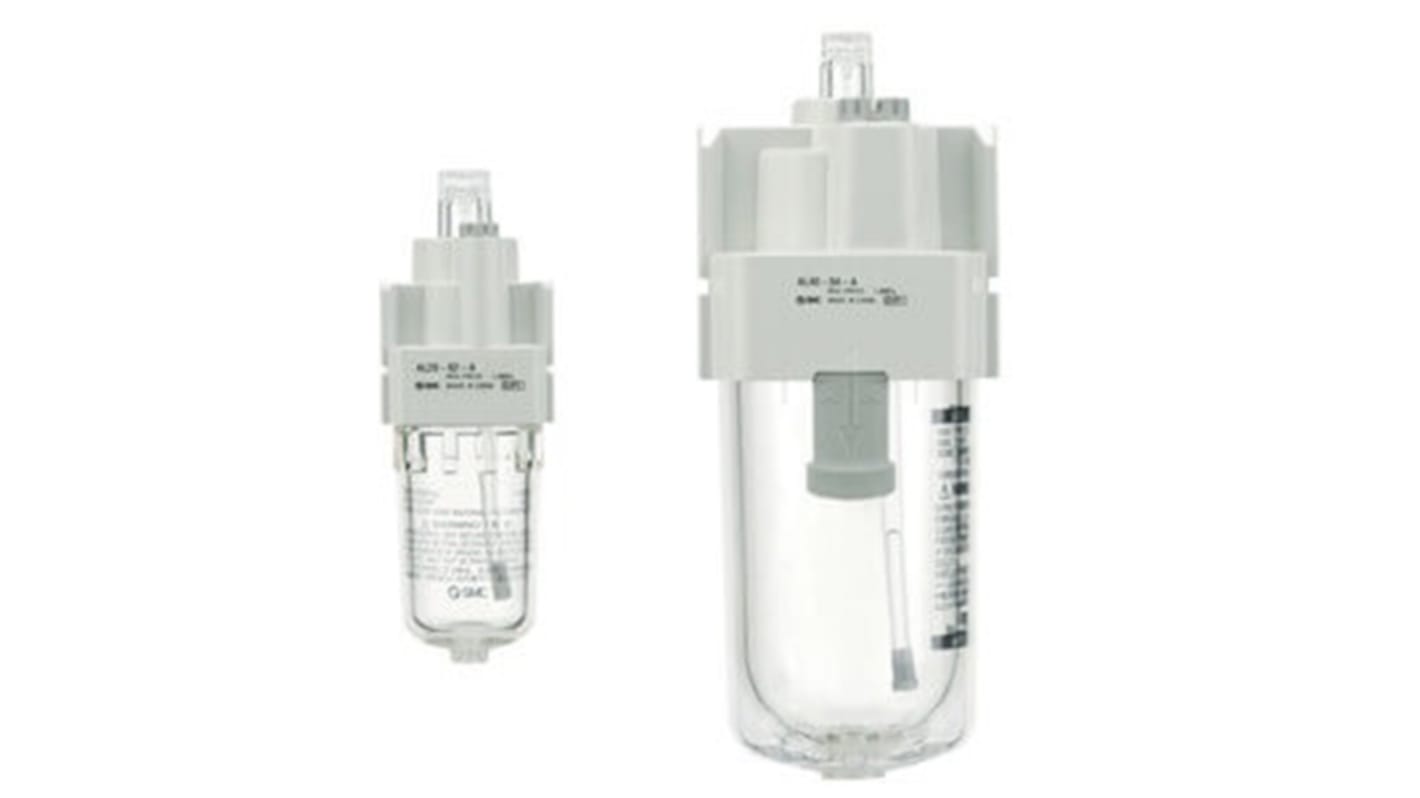

SMC 1/8 in Pneumatic Air Lubricator 10 bar, AL20 Series
- RS Stock No.:
- 234-4145
- Mfr. Part No.:
- AL20-F01B-A
- Brand:
- SMC
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£30.11
(exc. VAT)
£36.13
(inc. VAT)
- RS Stock No.:
- 234-4145
- Mfr. Part No.:
- AL20-F01B-A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Air Lubricator | |
| Port Size | 1/8 in | |
| Series | AL20 | |
| Connection Thread Standard | G | |
| Oil Capacity | 25cm³ | |
| Maximum Operating Pressure | 10 bar | |
| Drain | Yes | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Height | 115.2mm | |
| Overall Width | 50mm | |
| Standards/Approvals | RoHS | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Air Lubricator | ||
Port Size 1/8 in | ||
Series AL20 | ||
Connection Thread Standard G | ||
Oil Capacity 25cm³ | ||
Maximum Operating Pressure 10 bar | ||
Drain Yes | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Overall Height 115.2mm | ||
Overall Width 50mm | ||
Standards/Approvals RoHS | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- CN
The SMC Series AL-A modular style lubricator provides accurate lubrication of downstream equipment. The oil drop rate is adjustable depending on equipment requirements. The AL-A modular design allows connection with other SMC air preparation equipment
Body sizes available 10 ∼ 60
Thread type M5, Rc(PT), NPT, G(PF)
Port sizes M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1
