Festo 1/8 in G Pneumatic Air Lubricator 16 bar, LOE-D Series
- RS Stock No.:
- 202-3144
- Mfr. Part No.:
- LOE-1/8-D-MINI
- Brand:
- Festo
Subtotal (1 unit)*
£62.26
(exc. VAT)
£74.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £62.26 |
*price indicative
- RS Stock No.:
- 202-3144
- Mfr. Part No.:
- LOE-1/8-D-MINI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Port Size | 1/8 in G | |
| Product Type | Pneumatic Air Lubricator | |
| Series | LOE-D | |
| Oil Capacity | 45cm³ | |
| Maximum Operating Pressure | 16 bar | |
| Oil Feed Type | Mist | |
| Minimum Operating Temperature | -10°C | |
| Drain | Yes | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Overall Width | 64mm | |
| Overall Height | 169mm | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Port Size 1/8 in G | ||
Product Type Pneumatic Air Lubricator | ||
Series LOE-D | ||
Oil Capacity 45cm³ | ||
Maximum Operating Pressure 16 bar | ||
Oil Feed Type Mist | ||
Minimum Operating Temperature -10°C | ||
Drain Yes | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Overall Width 64mm | ||
Overall Height 169mm | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- HU

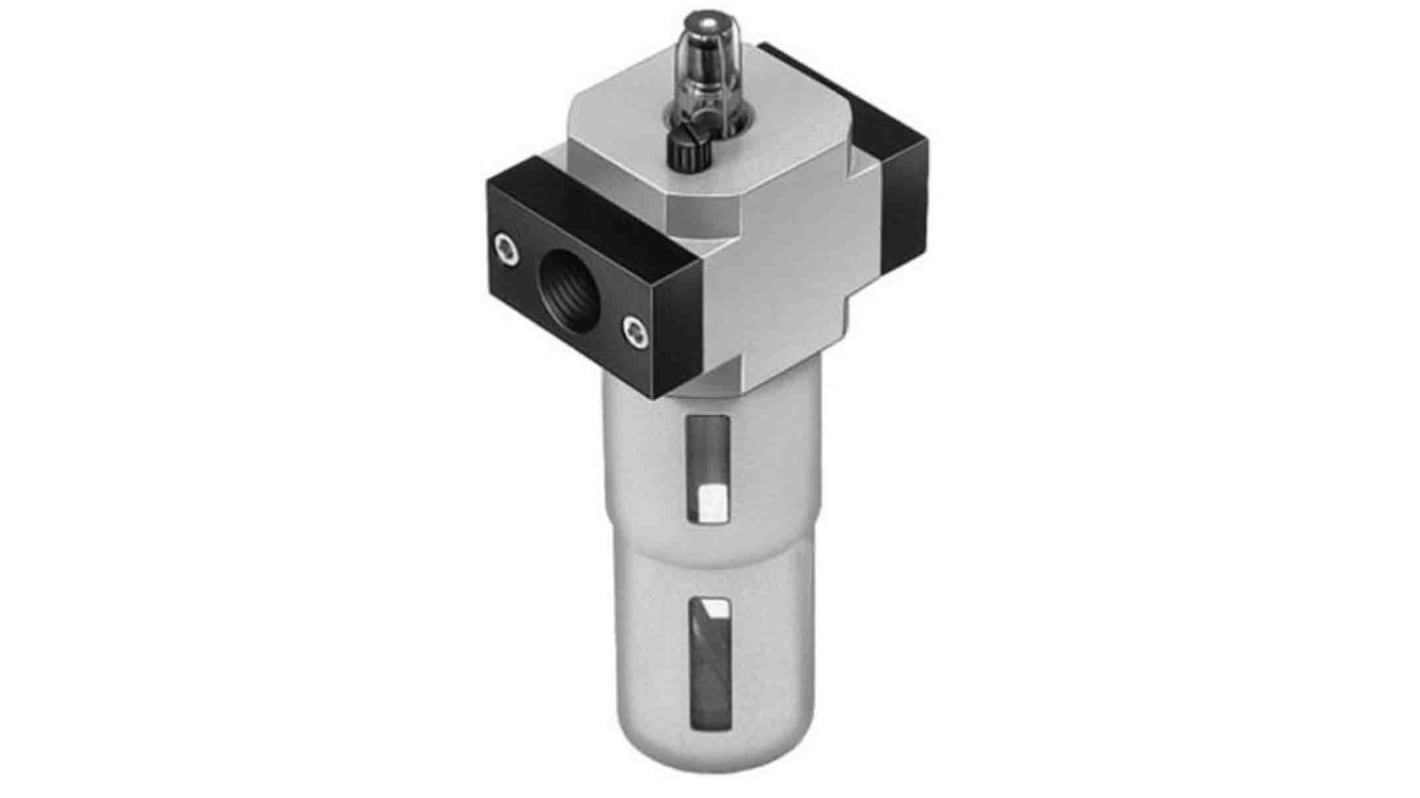

The Festo lubricator LOE-1/8-D-MINI with metal bowl guard. The modern alternatives can be found by entering the first four characters of the type code in the search field.
Size Mini
Series D
Assembly position Vertical +/- 5°
Design structure proportional standard mist lubricator
Max. oil capacity 45 cm3
