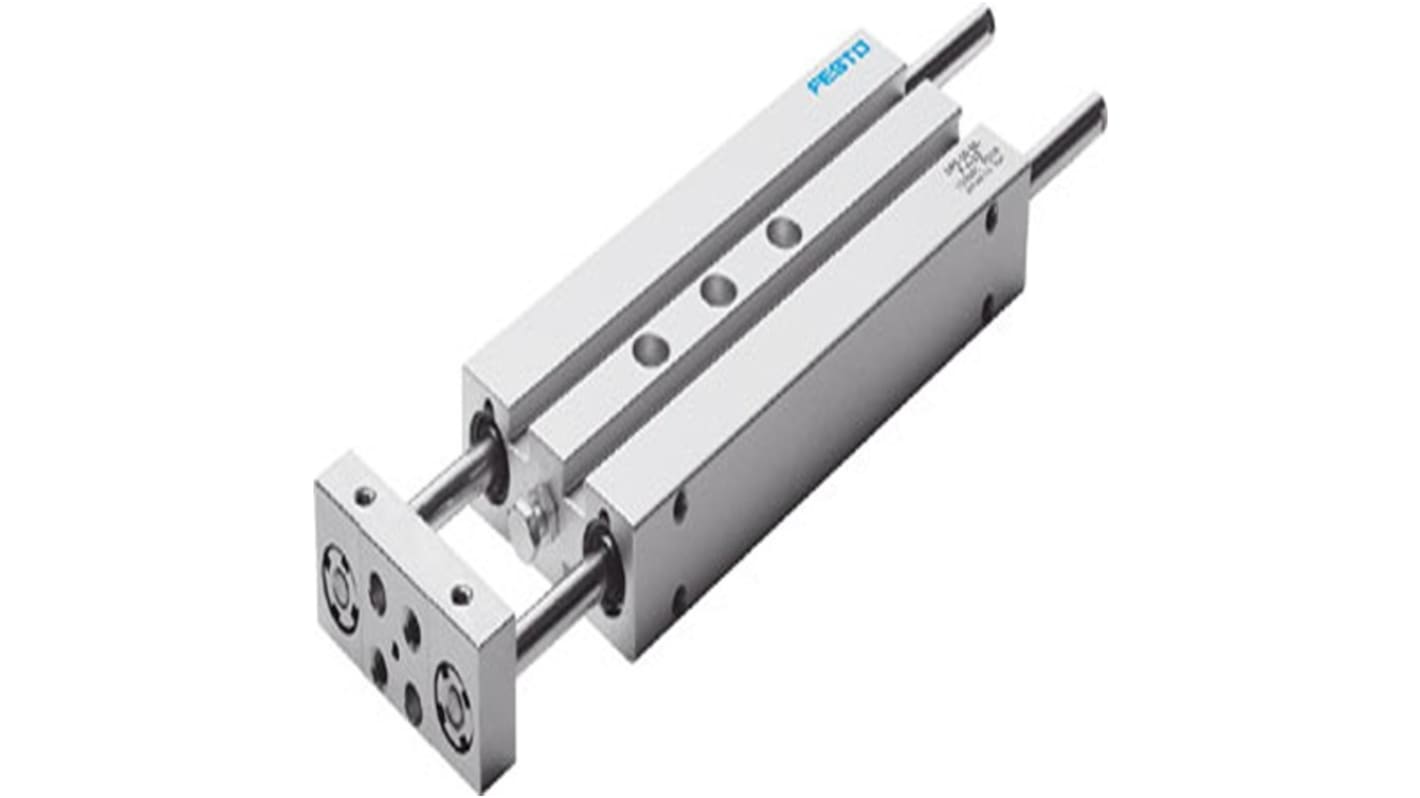

Festo Pneumatic Guided Cylinder - 159895 32 mm Bore, DPZ-32-80-P-A-S2 Series, 80 mm Double Acting Acting
- RS Stock No.:
- 275-4504
- Mfr. Part No.:
- DPZ-32-80-P-A-S2
- Brand:
- Festo
Subtotal (1 unit)*
£855.33
(exc. VAT)
£1,026.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £855.33 |
*price indicative
- RS Stock No.:
- 275-4504
- Mfr. Part No.:
- DPZ-32-80-P-A-S2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DPZ-32-80-P-A-S2 | |
| Action Type | Double Acting | |
| Mount Type | Optional | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Guide Type | Ball Bearing | |
| Minimum Operating Temperature | -20°C | |
| Rod Type | Through Piston Rod | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | |
| Stroke Length | 80mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DPZ-32-80-P-A-S2 | ||
Action Type Double Acting | ||
Mount Type Optional | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Guide Type Ball Bearing | ||
Minimum Operating Temperature -20°C | ||
Rod Type Through Piston Rod | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | ||
Stroke Length 80mm | ||
The Festo twin cylinder that has high force with excellent protection against rotation, twice the force in half the space. Widely spaced piston rods for high load capacity, it has standard bolt with lock nut enables adjustment of the standard strokes within a range of 10 mm.
Precision stroke adjustment
Different drive combinations
