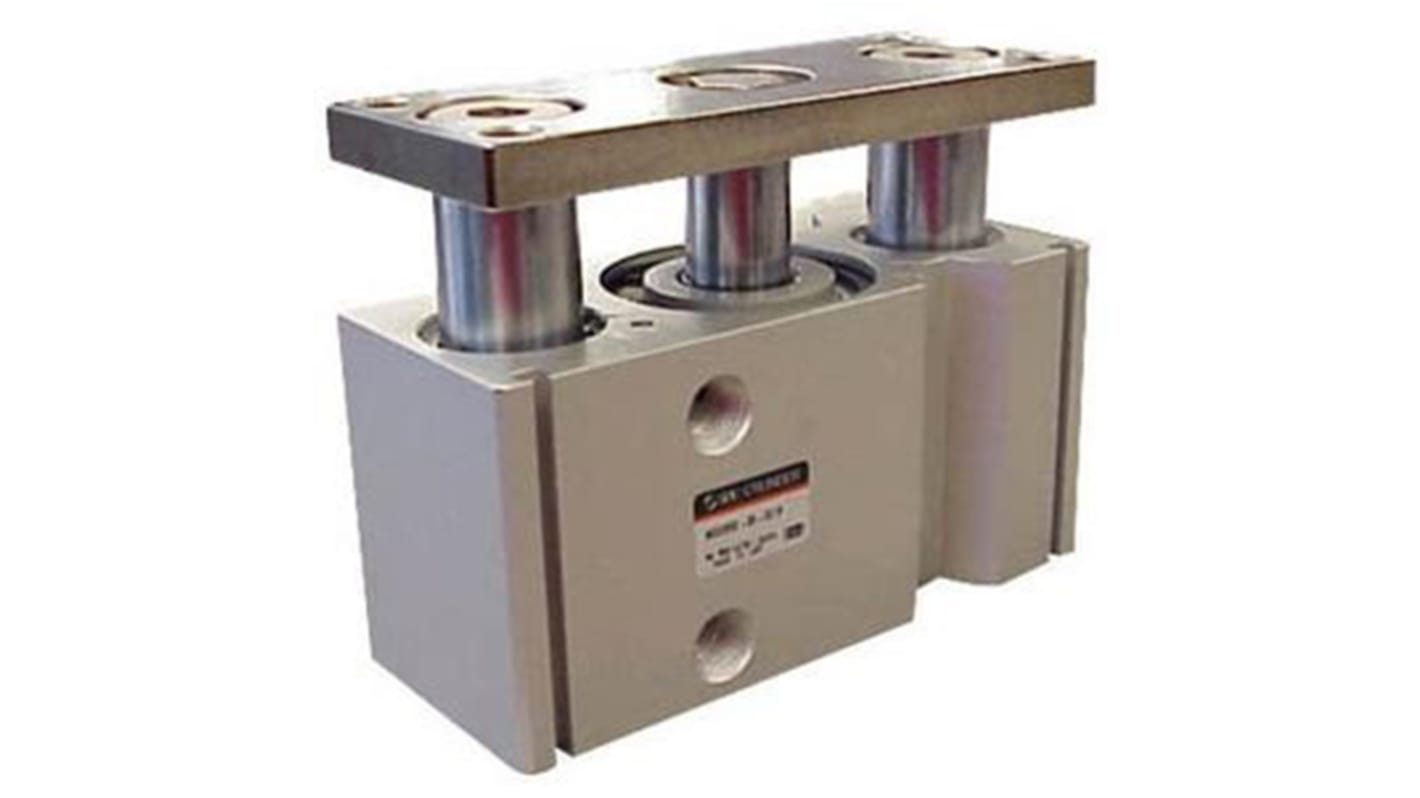

SMC Pneumatic Guided Cylinder - 20 mm Bore, MGQ Series, 175 mm Double Acting Acting
- RS Stock No.:
- 237-3550
- Mfr. Part No.:
- MGQM20-175
- Brand:
- SMC
Subtotal (1 unit)*
£300.76
(exc. VAT)
£360.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £300.76 |
*price indicative
- RS Stock No.:
- 237-3550
- Mfr. Part No.:
- MGQM20-175
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 20mm | |
| Series | MGQ | |
| Action Type | Double Acting | |
| Mount Type | Surface | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Rubber Cushioning at Both Ends | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Thread Size | M5 x 0.8 | |
| Guide Type | Slide Bearing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Stroke Length | 175mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 20mm | ||
Series MGQ | ||
Action Type Double Acting | ||
Mount Type Surface | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Rubber Cushioning at Both Ends | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Thread Size M5 x 0.8 | ||
Guide Type Slide Bearing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Stroke Length 175mm | ||
The SMC MGQM is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator's rod and seals. The carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts. its stoke size is 175 mm.
High temperature option, up to 150°C or 302°F (XB6)
Rubber bumpers as standard
Auto switch capable
