SMC Pneumatic Guided Cylinder - 40 mm Bore, MGPL Series, 25 mm Double Acting Acting
- RS Stock No.:
- 237-3536
- Mfr. Part No.:
- MGPL40TF-25Z
- Brand:
- SMC
Subtotal (1 unit)*
£368.54
(exc. VAT)
£442.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £368.54 |
*price indicative
- RS Stock No.:
- 237-3536
- Mfr. Part No.:
- MGPL40TF-25Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 40mm | |
| Series | MGPL | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Rubber Bumper | |
| Body Material | Aluminium Alloy | |
| Rod Type | Double Acting | |
| Piston Rod Thread Standard | G | |
| Minimum Operating Temperature | -10°C | |
| Maximum Piston Speed | 500mm/s | |
| Guide Type | Ball Bushing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Weight | 1.59kg | |
| Stroke Length | 25mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 40mm | ||
Series MGPL | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Rubber Bumper | ||
Body Material Aluminium Alloy | ||
Rod Type Double Acting | ||
Piston Rod Thread Standard G | ||
Minimum Operating Temperature -10°C | ||
Maximum Piston Speed 500mm/s | ||
Guide Type Ball Bushing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Weight 1.59kg | ||
Stroke Length 25mm | ||

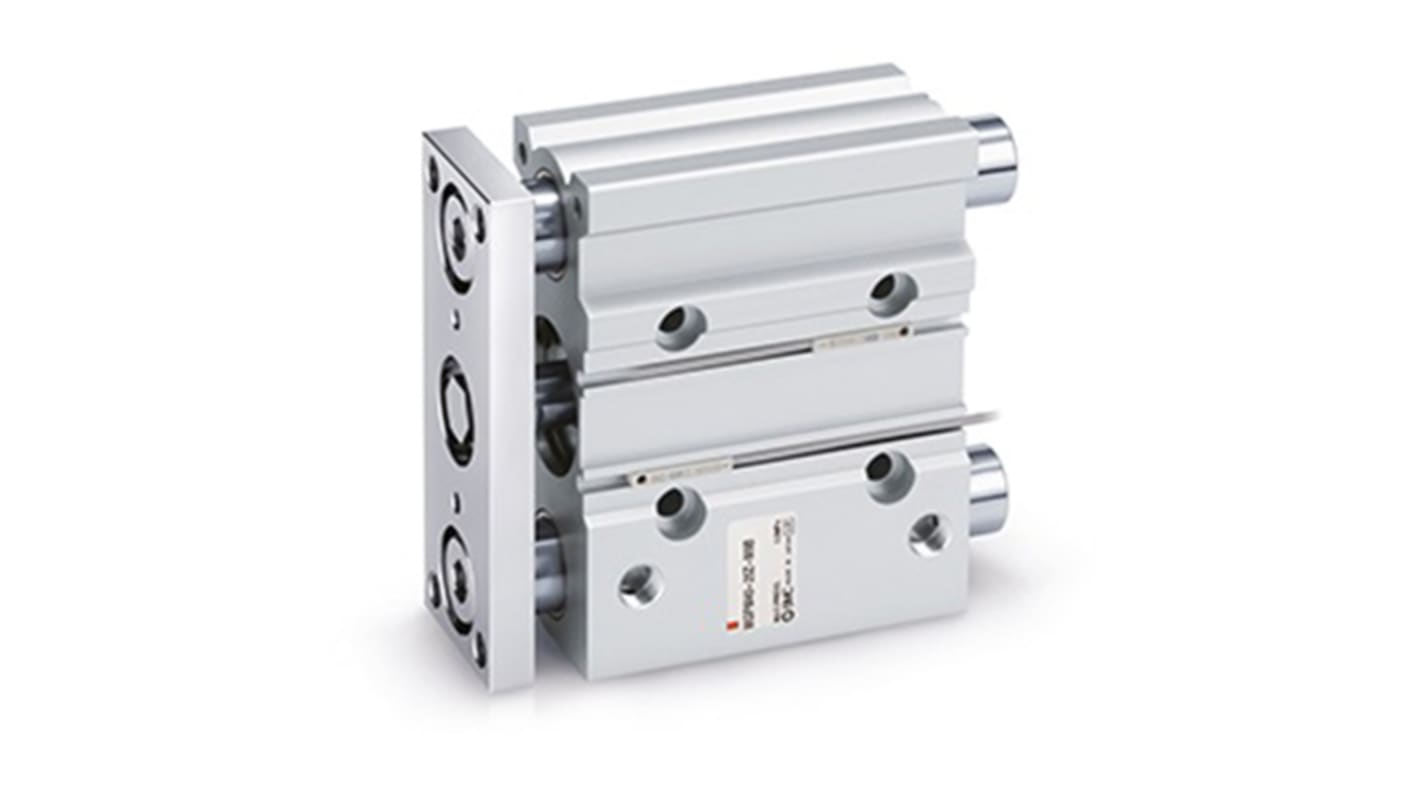

SMC MGPL Series Compact Guide Cylinder, 40mm Bore size, 25mm Stroke Length - MGPL40TF-25Z
This Compact guide cylinder is a pneumatic linear actuator designed to provide guided reciprocating motion for industrial automation tasks. It combines guided stability with a short-stroke arrangement for precise lateral control in confined assemblies and repetitive positioning operations.
Features and Benefits:
• 40mm bore for consistent force delivery and a Compact footprint
• 25mm stroke for short-travel positioning applications
• Aluminium alloy body offering lightweight structural support
• Ball bushing guide for low-friction lateral guidance
• Rubber bumper cushioning on both ends to reduce impact loads
• Rated to operate up to 1 MPa to handle higher system pressures
• 25mm stroke for short-travel positioning applications
• Aluminium alloy body offering lightweight structural support
• Ball bushing guide for low-friction lateral guidance
• Rubber bumper cushioning on both ends to reduce impact loads
• Rated to operate up to 1 MPa to handle higher system pressures
Applications
• Suitable for pick-and-place stations requiring lateral restraint
• Ideal for edge-guided assembly in electronics handling
• Used for clamp actuation in electrical panel manufacturing
• Can be used for short-stroke tooling in mechanical fixtures
• Ideal for edge-guided assembly in electronics handling
• Used for clamp actuation in electrical panel manufacturing
• Can be used for short-stroke tooling in mechanical fixtures
What temperature range can it withstand in continuous operation?
It operates reliably between -10 °C and 60 °C, covering common workshop and factory environments.
How fast can the piston travel for cycle planning?
The maximum piston velocity is 500 mm/s, allowing calculation of cycle times for Rapid motions.
What type of rod thread does it present for mounting?
The piston rod uses a G-thread standard to match common industrial fittings.
How is sealing or cushioning handled at end-of-stroke events?
Each end features a rubber bumper that absorbs kinetic energy and limits rebound during deceleration.
