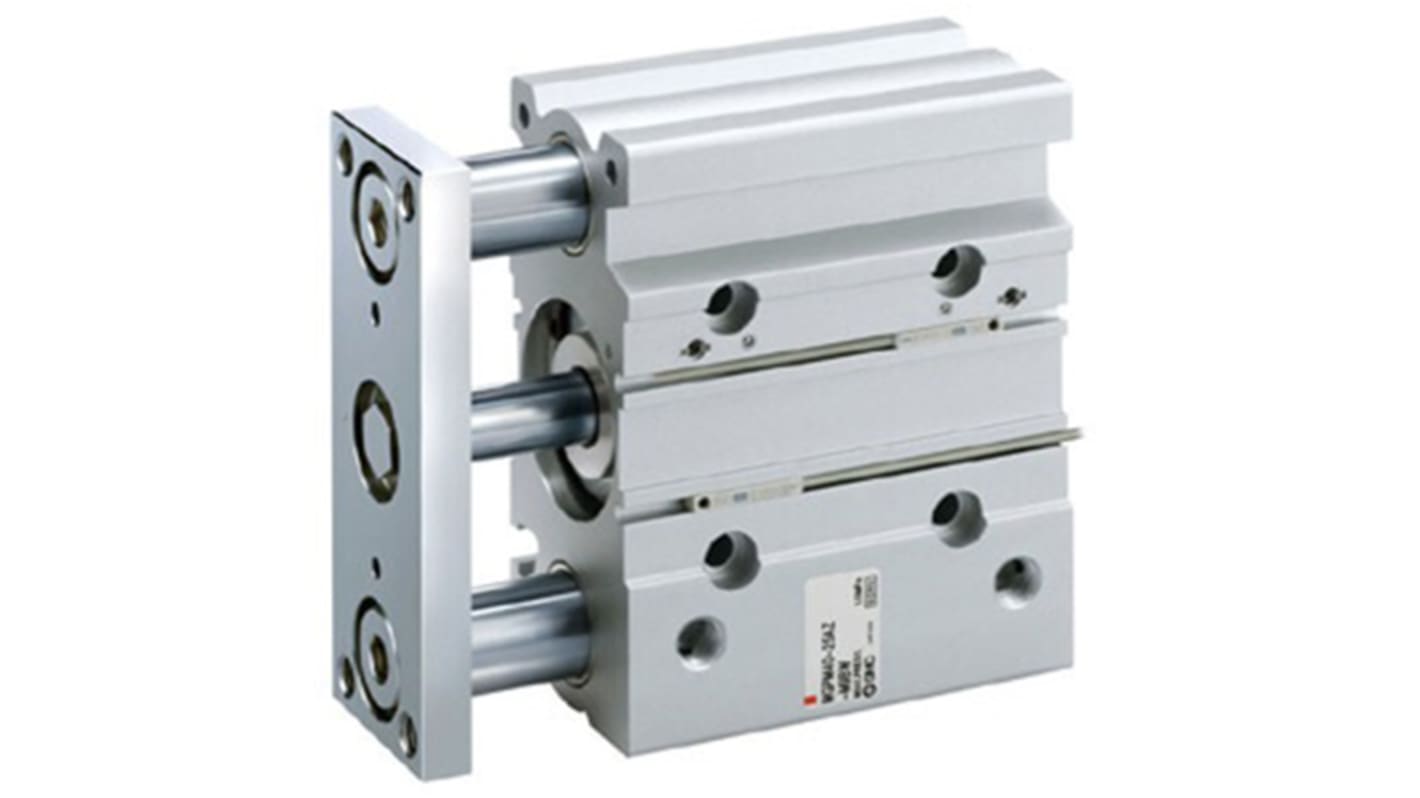

SMC Pneumatic Guided Cylinder - 16 mm Bore, MGPL Series, 175 mm Double Acting Acting
- RS Stock No.:
- 237-3529
- Mfr. Part No.:
- MGPL16-175AZ
- Brand:
- SMC
Subtotal (1 unit)*
£469.06
(exc. VAT)
£562.87
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £469.06 |
*price indicative
- RS Stock No.:
- 237-3529
- Mfr. Part No.:
- MGPL16-175AZ
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | MGPL | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Rubber Bumper | |
| Body Material | Aluminium Alloy | |
| Minimum Operating Temperature | -10°C | |
| Maximum Piston Speed | 500mm/s | |
| Guide Type | Ball Bearing | |
| Piston Rod Thread Size | M5 x 0.8 | |
| Maximum Operating Temperature | 60°C | |
| Weight | 1.11kg | |
| Standards/Approvals | No | |
| Stroke Length | 175mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series MGPL | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Rubber Bumper | ||
Body Material Aluminium Alloy | ||
Minimum Operating Temperature -10°C | ||
Maximum Piston Speed 500mm/s | ||
Guide Type Ball Bearing | ||
Piston Rod Thread Size M5 x 0.8 | ||
Maximum Operating Temperature 60°C | ||
Weight 1.11kg | ||
Standards/Approvals No | ||
Stroke Length 175mm | ||
- COO (Country of Origin):
- JP
The SMC MGP-AZ is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator's rod and seals. The air cushions allow the guided cylinder to absorb nearly three times as much kinetic energy as standard rubber bumpers while suppressing noise and vibration at the stroke end. The press fitted high precision ball bushing is suitable for minimizing the actuator's plate displacement.
Air cushions as standard
Auto switch capable
Ball bushing non-rotating accuracy +/-0.05° (100 mm) to +/- 0.10° (16 mm)
