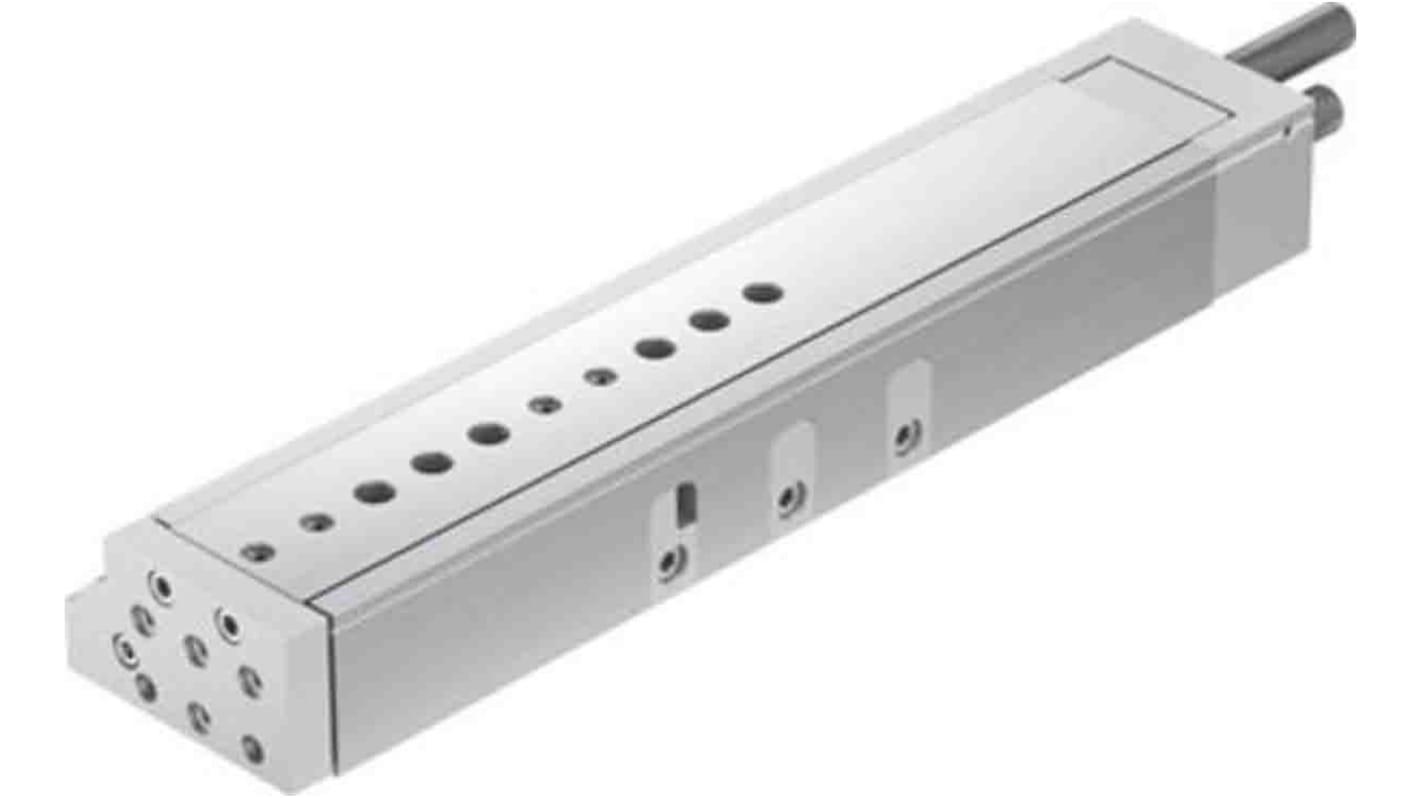

Festo Pneumatic Guided Cylinder - 200 mm 544013 DGSL Series, Double Acting Acting
- RS Stock No.:
- 203-9488
- Mfr. Part No.:
- DGSL-20-200-PA
- Brand:
- Festo
Subtotal (1 unit)*
£1,188.87
(exc. VAT)
£1,426.64
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,188.87 |
*price indicative
- RS Stock No.:
- 203-9488
- Mfr. Part No.:
- DGSL-20-200-PA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Series | DGSL | |
| Action Type | Double Acting | |
| Cushioning Type | Elastic | |
| Maximum Operating Temperature | 60°C | |
| Width | 200mm | |
| Height | 120mm | |
| Standards/Approvals | RoHS | |
| Stroke Length | 200mm | |
| Length | 460mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Series DGSL | ||
Action Type Double Acting | ||
Cushioning Type Elastic | ||
Maximum Operating Temperature 60°C | ||
Width 200mm | ||
Height 120mm | ||
Standards/Approvals RoHS | ||
Stroke Length 200mm | ||
Length 460mm | ||
- COO (Country of Origin):
- DE
The Festo DGSL series mini slide double-acting actuator has a flexible damping on both sides without metallic end position via position sensing. The actuator adjustable end position range/front length 138.5 mm and rear length 49.5 mm. This also features a highly accurate durable ball-cage guide structure.
Piston diameter = 25 mm
Operating mode of drive unit = yoke
