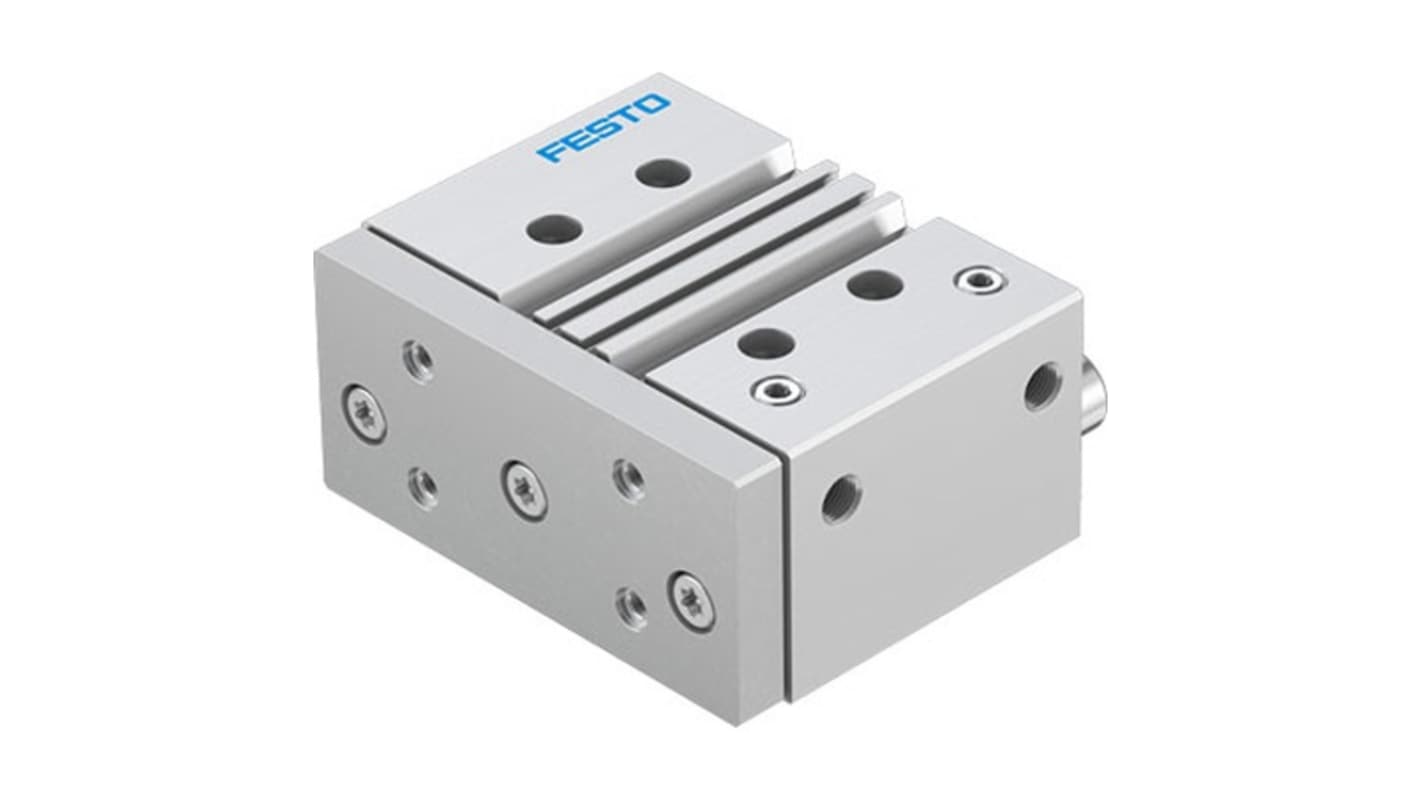

Festo Pneumatic Guided Cylinder - DFM-63-50-P-A-GF-F1A 63 mm Bore, DFM Series, 50 mm Double Acting Acting
- RS Stock No.:
- 342-321
- Mfr. Part No.:
- DFM-63-50-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£521.32
(exc. VAT)
£625.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £521.32 |
*price indicative
- RS Stock No.:
- 342-321
- Mfr. Part No.:
- DFM-63-50-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 63mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Standard | BSPP | |
| Piston Rod Thread Size | 1/4 in G | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Weight | 5243g | |
| Stroke Length | 50mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 63mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Standard BSPP | ||
Piston Rod Thread Size 1/4 in G | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Weight 5243g | ||
Stroke Length 50mm | ||
The Festo Guided Drive expertly engineered, brings a perfect blend of precision and power for various industrial applications. Designed to operate in demanding environments, this drive ensures maximum efficiency with its robust double acting mechanism. Optimised for effective positioning and smooth operation, it showcases elastic cushioning at both ends, contributing to longevity and reliability. Whether positioned horizontally or vertically, its adjustable mounting options cater to the unique needs of your projects. With its compatibility with ISO 8573 1 standards for compressed air, the drive guarantees an ideal fit for a multitude of production scenarios and maximizes your system’s productivity.
Double acting operation enhances efficiency and functionality
Elastic cushioning reduces wear and tear for extended service life
Plain bearing guide ensures smooth linear motion
Customisable mounting position allows flexible installation
Compatibility with industry standards supports seamless integration
Robust corrosion resistance class ensures reliability in various environments
Materials used comply with RoHS promoting environmental responsibility
High moving mass facilitates stable operation under dynamic conditions
