RS PRO Pneumatic Guided Cylinder - 32 mm Bore, SGM Series, 75 mm Double Acting Acting
- RS Stock No.:
- 180-302
- Brand:
- RS PRO
Subtotal (1 unit)*
£282.21
(exc. VAT)
£338.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £282.21 |
*price indicative
- RS Stock No.:
- 180-302
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | SGM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Rubber | |
| Piston Rod Thread Size | 1/8 in G | |
| Minimum Operating Temperature | -20°C | |
| Rod Type | Double | |
| Maximum Piston Speed | 500mm/s | |
| Maximum Operating Temperature | 70°C | |
| Width | 110mm | |
| Standards/Approvals | RoHS | |
| Height | 44mm | |
| Weight | 1350g | |
| Stroke Length | 75mm | |
| Length | 135mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series SGM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Cushioning Type Rubber | ||
Piston Rod Thread Size 1/8 in G | ||
Minimum Operating Temperature -20°C | ||
Rod Type Double | ||
Maximum Piston Speed 500mm/s | ||
Maximum Operating Temperature 70°C | ||
Width 110mm | ||
Standards/Approvals RoHS | ||
Height 44mm | ||
Weight 1350g | ||
Stroke Length 75mm | ||
Length 135mm | ||

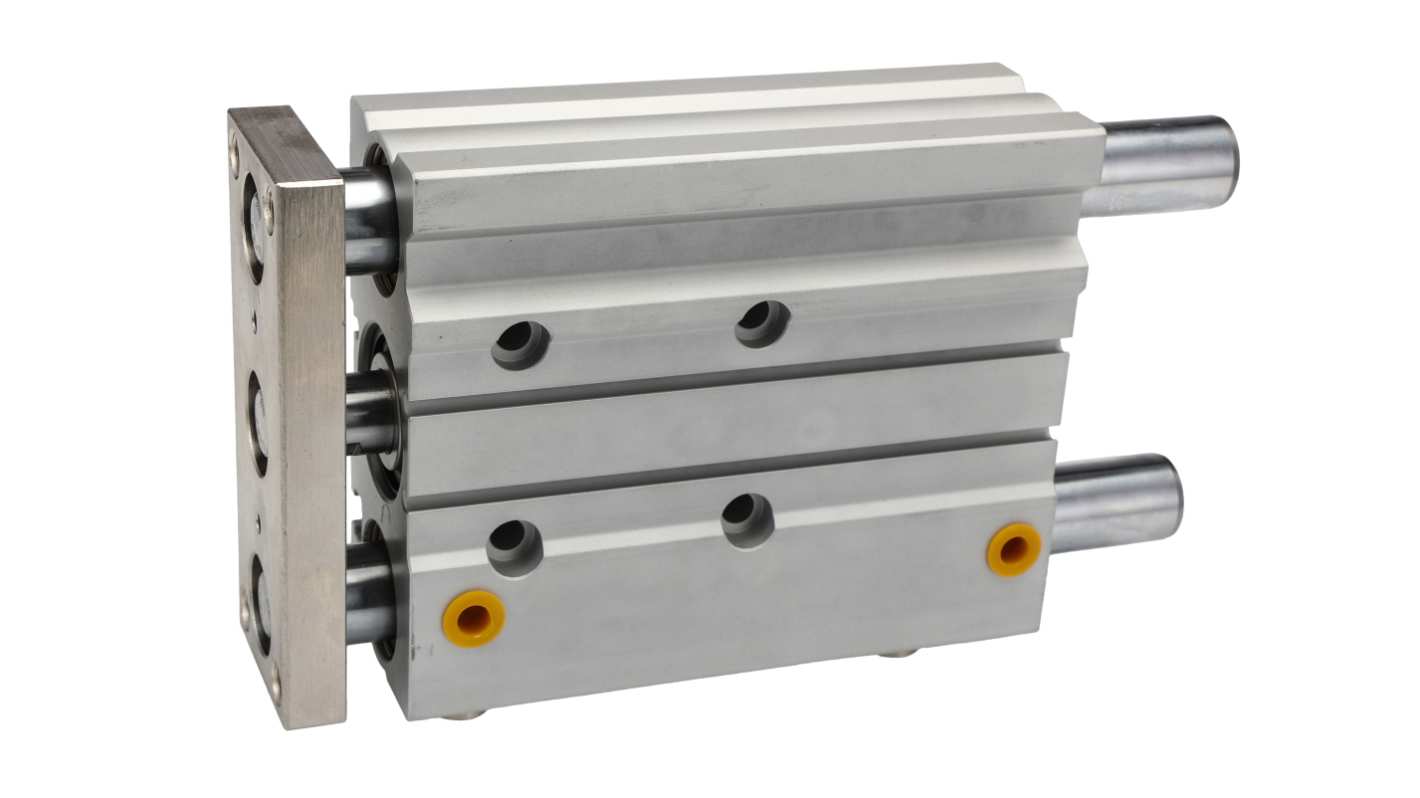

RS PRO Pneumatic Guided Cylinder, 75 mm Stroke, Compact
The RS PRO Pneumatic Guided Cylinder is designed for applications requiring precise linear motion and robust performance. With a 75 mm stroke and a compact design, this cylinder is ideal for environments where space is limited. Its heavy-duty triple rod construction ensures strong resistance to side loads, making it suitable for demanding industrial applications.
Features and Benefits
Heavy-duty triple rod: Provides strong resistance to side loads, enhancing durability and performance.
Slide bearing: Ensures smooth and precise movement, improving operational accuracy.
Compact design: Saves space in installations, making it ideal for confined environments.
Multiple mounting points: Offers flexible installation options, increasing versatility.
Rubber cushioning: Reduces impact and noise, prolonging the lifespan of the cylinder.
Magnetic: Allows for easy position sensing, enhancing control and automation capabilities.
Applications
Automotive manufacturing
Packaging machinery
Material handling systems
Robotics
Additional Information
Conforms to standard pneumatic connection G 1/8
Operates efficiently within a temperature range of -20 °C to 80 °C
Maximum operating pressure of 10 bar for reliable performance in high-pressure environments
