RS PRO Pneumatic Guided Cylinder - 25 mm Bore, SGM Series, 100 mm Double Acting Acting
- RS Stock No.:
- 180-290
- Brand:
- RS PRO
Subtotal (1 unit)*
£281.99
(exc. VAT)
£338.39
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £281.99 |
*price indicative
- RS Stock No.:
- 180-290
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 25mm | |
| Series | SGM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Rubber | |
| Piston Rod Thread Size | 1/8 in G | |
| Minimum Operating Temperature | -20°C | |
| Rod Type | Double | |
| Maximum Piston Speed | 500mm/s | |
| Maximum Operating Temperature | 70°C | |
| Width | 91mm | |
| Height | 38mm | |
| Standards/Approvals | RoHS | |
| Weight | 2200g | |
| Length | 154mm | |
| Stroke Length | 100mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 25mm | ||
Series SGM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Cushioning Type Rubber | ||
Piston Rod Thread Size 1/8 in G | ||
Minimum Operating Temperature -20°C | ||
Rod Type Double | ||
Maximum Piston Speed 500mm/s | ||
Maximum Operating Temperature 70°C | ||
Width 91mm | ||
Height 38mm | ||
Standards/Approvals RoHS | ||
Weight 2200g | ||
Length 154mm | ||
Stroke Length 100mm | ||

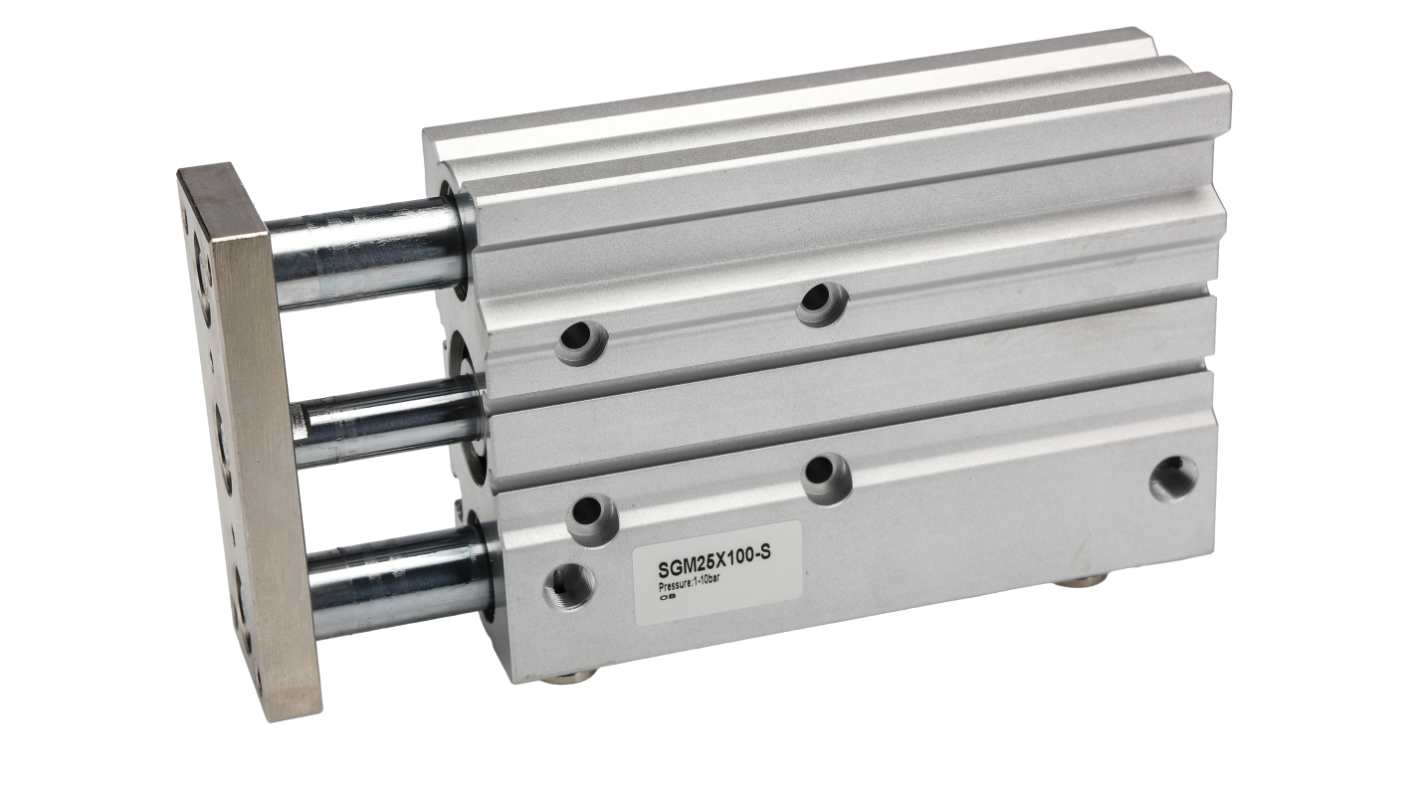

RS PRO Pneumatic Guided Cylinder, 100 mm Stroke, Compact
The RS PRO Pneumatic Guided Cylinder is designed for applications requiring precise linear motion control. With a 100 mm stroke and a compact design, this cylinder is ideal for environments where space is limited. Its robust construction and slide bearing ensure durability and resistance to side loads, making it suitable for heavy-duty applications.
Features and Benefits
Heavy-duty triple rod with slide bearing: Provides strong resistance to side loads, enhancing durability and performance.
Flexible mounting: Allows for easy installation in various configurations, increasing versatility.
Compact size: Saves space in constrained environments without compromising performance.
Precise movement: Ensures accurate and controlled linear motion, essential for precision tasks.
High precision: Delivers reliable performance in demanding applications.
Magnetic: Facilitates integration with magnetic sensors for position feedback.
Rubber cushioned: Reduces impact and noise, extending the lifespan of the cylinder.
Applications
Automation systems
Material handling
Packaging machinery
Robotics
Additional Information
Pneumatic Connection: G 1/8
Maximum Operating Pressure: 10 bar
Operating Temperature Range: -20 °C to 80 °C
Bore Size: 25 mm
Action Type: Double
Cushioning Type: Rubber
