RS PRO Pneumatic Guided Cylinder - 25 mm Bore, SQM Series, 25 mm Double Acting Acting
- RS Stock No.:
- 180-281
- Brand:
- RS PRO
Subtotal (1 unit)*
£88.86
(exc. VAT)
£106.63
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.86 |
*price indicative
- RS Stock No.:
- 180-281
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 25mm | |
| Series | SQM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Rubber | |
| Maximum Piston Speed | 500mm/s | |
| Rod Type | Double | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | M5 x 0.8 | |
| Maximum Operating Temperature | 70°C | |
| Weight | 350g | |
| Standards/Approvals | RoHS | |
| Height | 40mm | |
| Width | 40mm | |
| Length | 71mm | |
| Stroke Length | 25mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 25mm | ||
Series SQM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Cushioning Type Rubber | ||
Maximum Piston Speed 500mm/s | ||
Rod Type Double | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size M5 x 0.8 | ||
Maximum Operating Temperature 70°C | ||
Weight 350g | ||
Standards/Approvals RoHS | ||
Height 40mm | ||
Width 40mm | ||
Length 71mm | ||
Stroke Length 25mm | ||

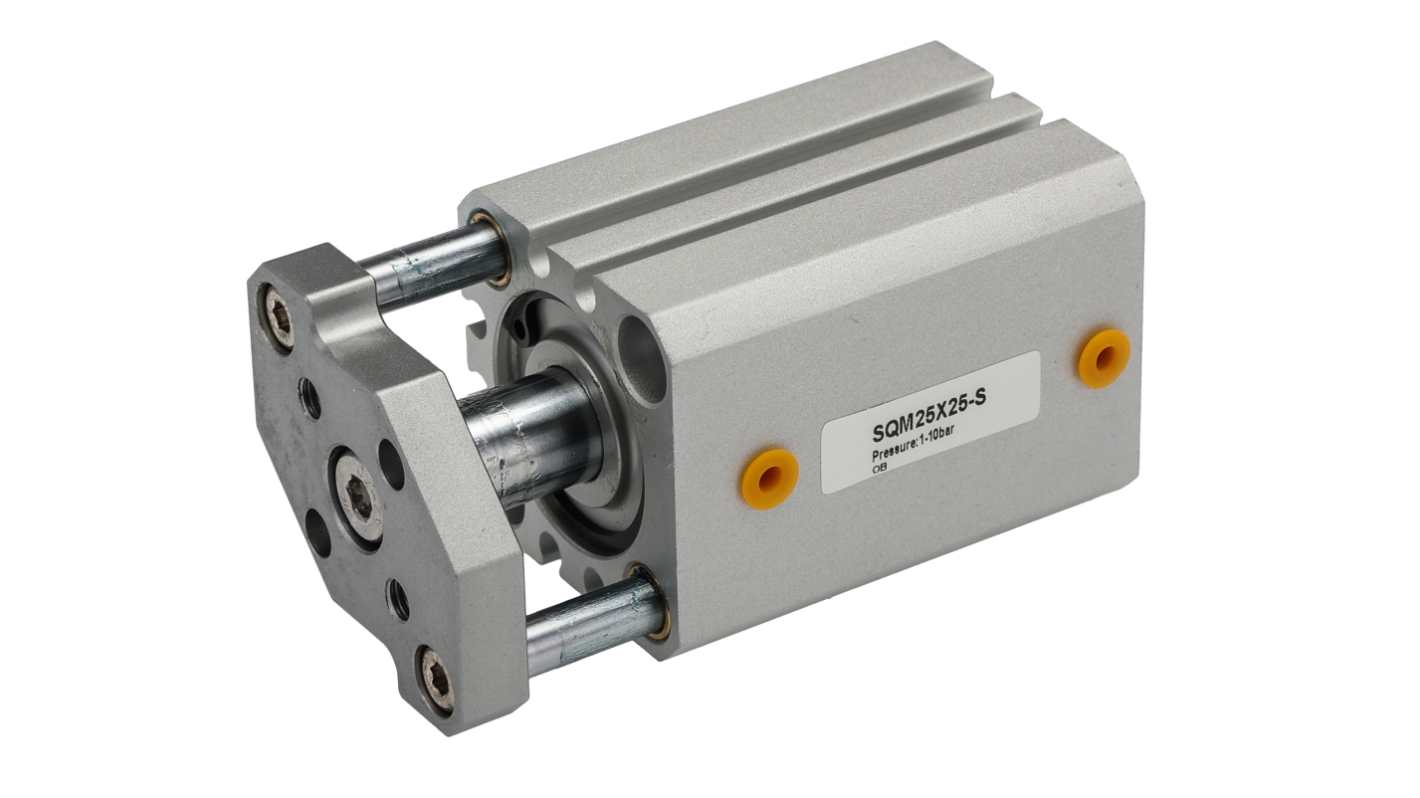

RS PRO Compact Guide Cylinder, 25 mm Stroke, Double Action
The RS PRO Compact Guide Cylinder is engineered for applications requiring precise movement and positioning in limited spaces. This pneumatic guided cylinder is ideal for environments where compact dimensions and high guiding accuracy are essential, offering enhanced output force through its double cylinder design.
Features and Benefits
Flexible mounting: Allows for versatile installation in various configurations
Compact: Suitable for use in tight spaces without compromising performance
Precise movement: Ensures accurate positioning and control
High precision: Delivers reliable and repeatable results
Magnetic: Compatible with magnetic switches for enhanced functionality
Rubber cushioned: Provides smooth operation and reduces wear
Applications
Automation systems
Robotics
Material handling
Packaging machinery
Additional Information
Compatible with magnetic switches
Operating temperature range: -20 °C to 70 °C
Maximum operating pressure: 10 bar
Pneumatic connection: M5
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
