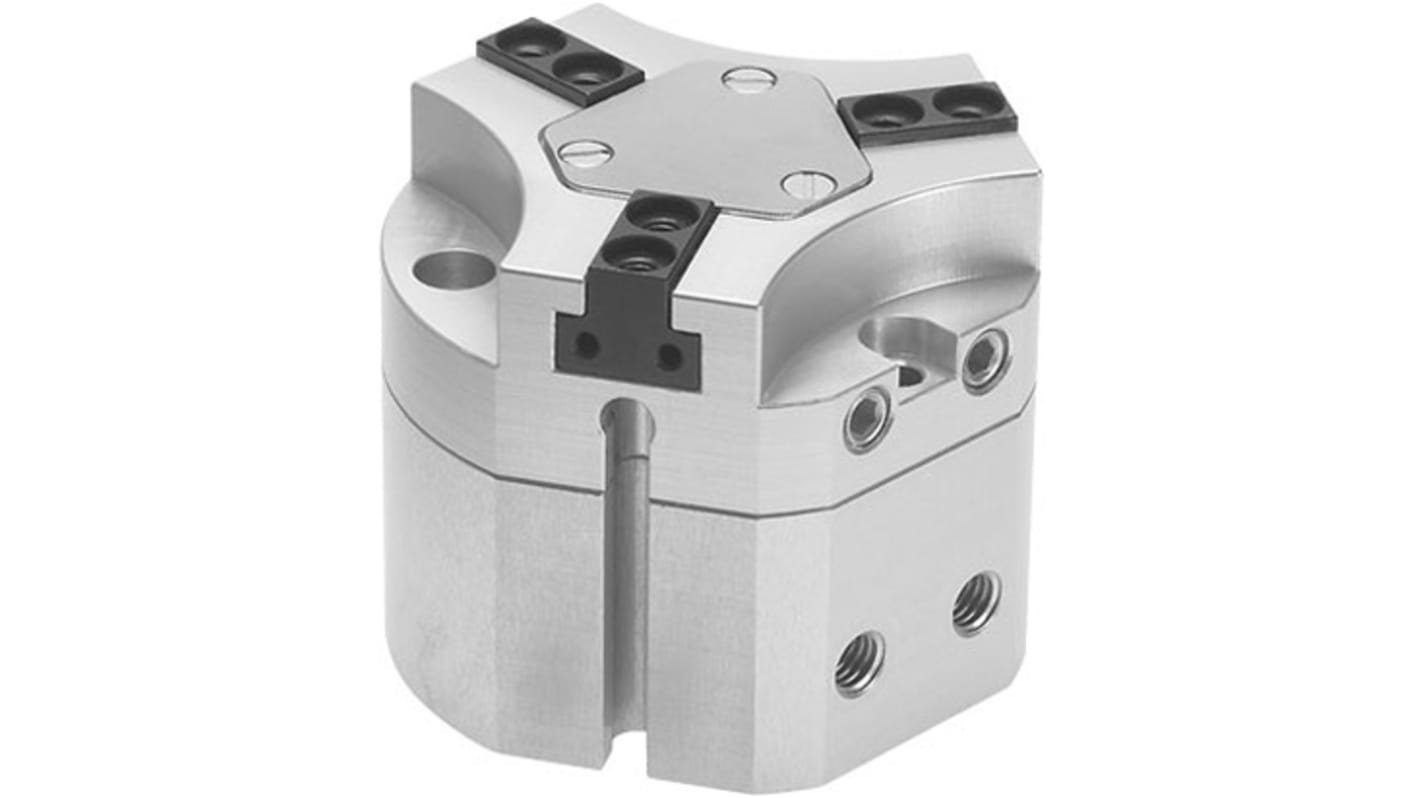

Festo 3 Finger Double Acting Action Pneumatic Gripper, HGDT-35-A-F-G1, 3 Point Gripping Type
- RS Stock No.:
- 281-1400
- Mfr. Part No.:
- HGDT-35-A-F-G1
- Brand:
- Festo
Subtotal (1 unit)*
£983.01
(exc. VAT)
£1,179.61
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £983.01 |
*price indicative
- RS Stock No.:
- 281-1400
- Mfr. Part No.:
- HGDT-35-A-F-G1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 3 | |
| Gripping Type | 3 Point | |
| Stroke Length | 2mm | |
| Action Type | Double Acting | |
| Series | HGDT | |
| Maximum Operating Pressure | 8 bar | |
| Weight | 337g | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Maximum Operating Frequency | 4Hz | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 3 | ||
Gripping Type 3 Point | ||
Stroke Length 2mm | ||
Action Type Double Acting | ||
Series HGDT | ||
Maximum Operating Pressure 8 bar | ||
Weight 337g | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Maximum Operating Frequency 4Hz | ||
The Festo Three point gripper has an optional mounting position. It operates in a double acting mode. During the opening operation, the gripper utilizes gripper force back up, enhancing its ability to release objects with precision. The design of the thre
RoHS compliant
Moderate corrosion stress
Lubricated operation possible
