SMC 2 Finger Single Acting Action Pneumatic Gripper, MHZL2-20C, Parallel Gripping Type
- RS Stock No.:
- 237-3572
- Mfr. Part No.:
- MHZL2-20C
- Brand:
- SMC
Subtotal (1 unit)*
£413.28
(exc. VAT)
£495.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £413.28 |
*price indicative
- RS Stock No.:
- 237-3572
- Mfr. Part No.:
- MHZL2-20C
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Number of Fingers | 2 | |
| Product Type | Pneumatic Gripper | |
| Bore Size | 20 mm | |
| Gripping Type | Parallel | |
| Stroke Length | 18mm | |
| Action Type | Single Acting | |
| Series | MHZL2 | |
| Maximum Operating Pressure | 7 bar | |
| Port Size | M5 | |
| Weight | 290g | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - Internal | 57N | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Length | 70mm | |
| Height | 23.6mm | |
| Width | 30.6 mm | |
| Maximum Operating Frequency | 120cpm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Number of Fingers 2 | ||
Product Type Pneumatic Gripper | ||
Bore Size 20 mm | ||
Gripping Type Parallel | ||
Stroke Length 18mm | ||
Action Type Single Acting | ||
Series MHZL2 | ||
Maximum Operating Pressure 7 bar | ||
Port Size M5 | ||
Weight 290g | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - Internal 57N | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Length 70mm | ||
Height 23.6mm | ||
Width 30.6 mm | ||
Maximum Operating Frequency 120cpm | ||
- COO (Country of Origin):
- JP

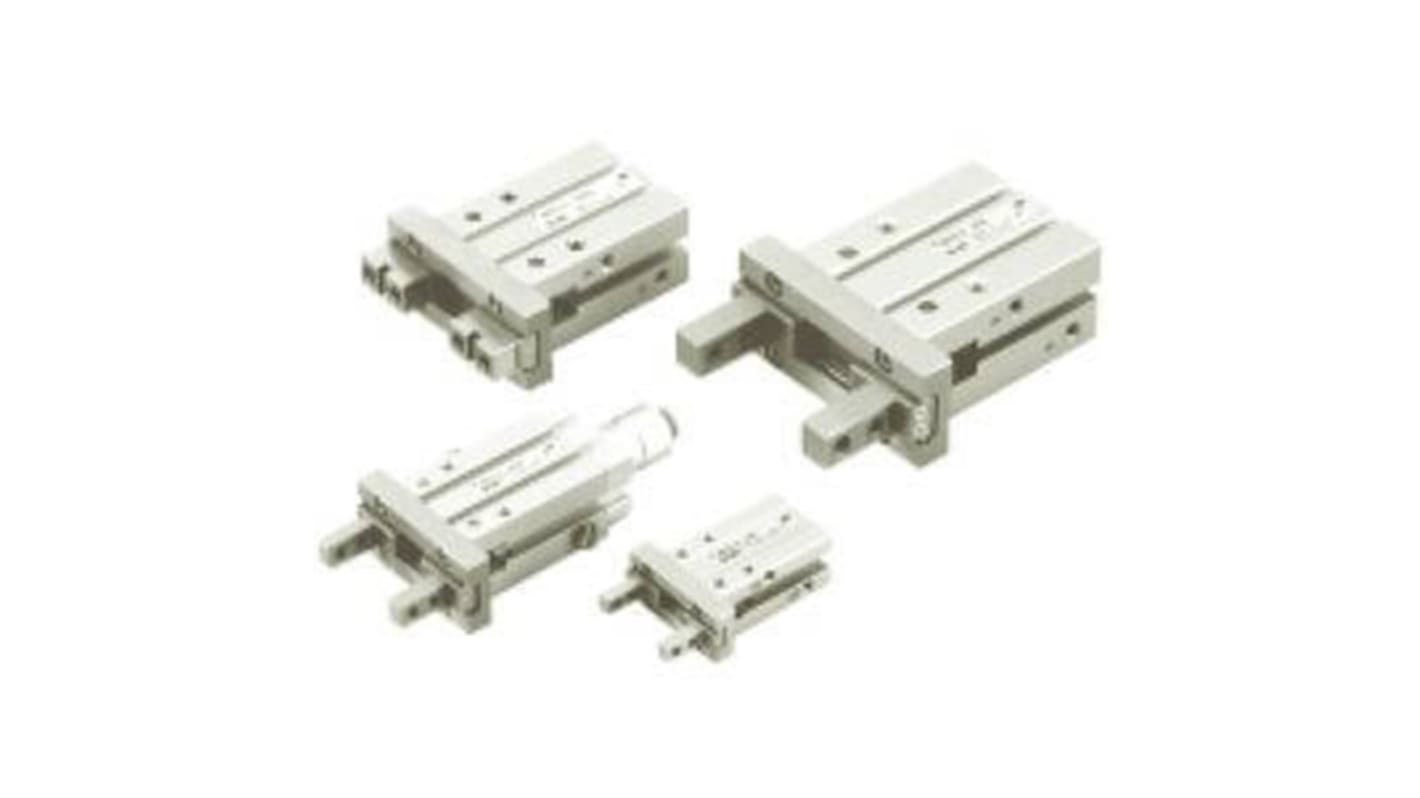

The SMC MHZL2 series gripper has an integrated linear guide for high rigidity, positioned with two dowel pins to prevent guide slippage. It has mounting versatility on three sides, in five configurations. It is available in single acting (N.O., N.C.).
Auto switch capable
Option for NSF-H1, food grade lubricant
High repeatability ±0.01 mm
