SMC 2 Finger Double Acting Action Pneumatic Gripper, MHCA2-6D, Parallel Gripping Type
- RS Stock No.:
- 237-3554
- Mfr. Part No.:
- MHCA2-6D
- Brand:
- SMC
Subtotal (1 unit)*
£144.54
(exc. VAT)
£173.45
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £144.54 |
*price indicative
- RS Stock No.:
- 237-3554
- Mfr. Part No.:
- MHCA2-6D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 2 | |
| Bore Size | 6mm | |
| Gripping Type | Parallel | |
| Action Type | Double Acting | |
| Series | MHCA2 | |
| Maximum Operating Pressure | 6 bar | |
| Port Size | M3 | |
| Weight | 19g | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 20mm | |
| Standards/Approvals | RoHS | |
| Height | 10mm | |
| Length | 41mm | |
| Maximum Operating Frequency | 180cpm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 2 | ||
Bore Size 6mm | ||
Gripping Type Parallel | ||
Action Type Double Acting | ||
Series MHCA2 | ||
Maximum Operating Pressure 6 bar | ||
Port Size M3 | ||
Weight 19g | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Width 20mm | ||
Standards/Approvals RoHS | ||
Height 10mm | ||
Length 41mm | ||
Maximum Operating Frequency 180cpm | ||

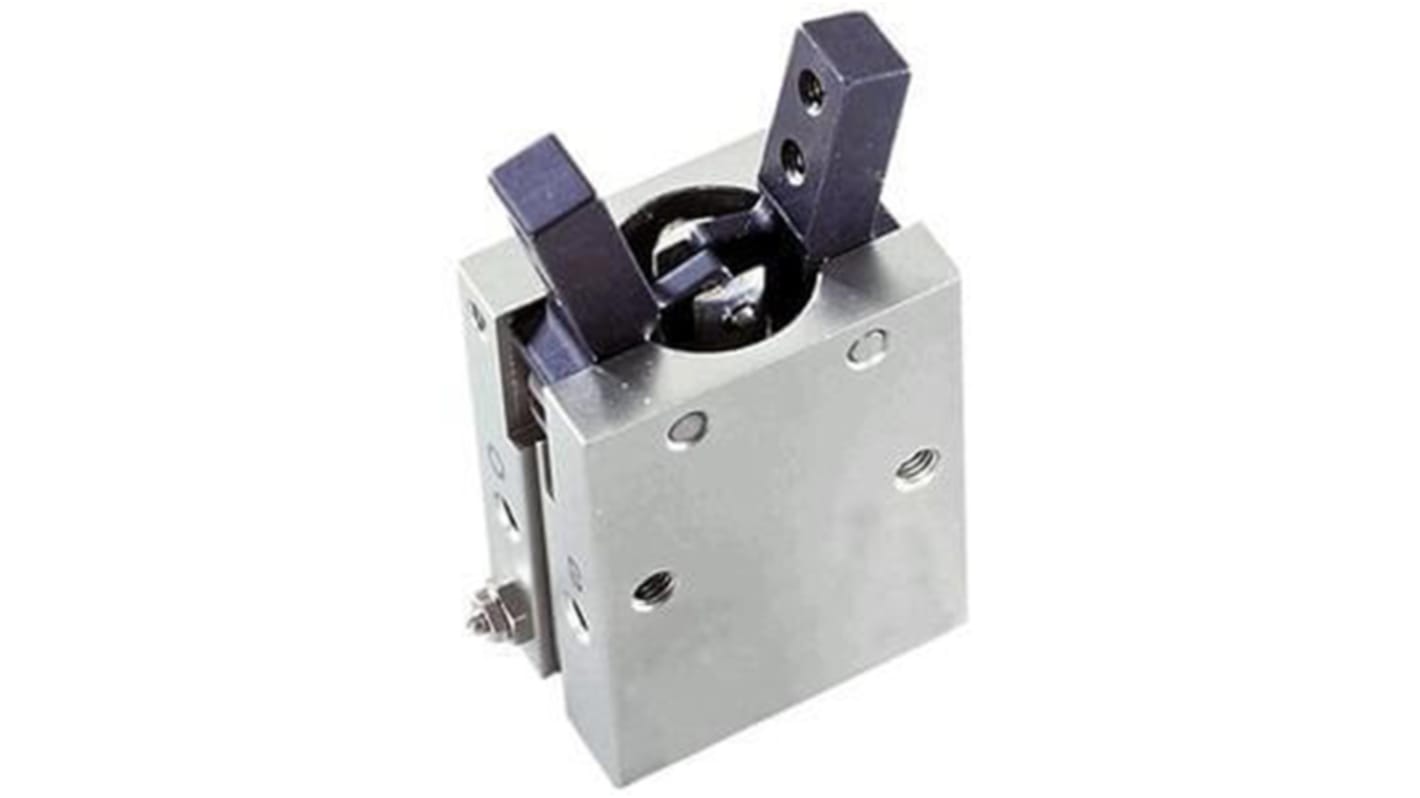

The SMC MHCA, Air gripper used fulcrum opening type and it has compact standard. It is suitable for work pieces of odd shapes and where space is too tight to accommodate a parallel type gripper.
Bore size 6mm
Built-in throttle for speed adjustment
Option for NSF-H1, food grade lubricant
