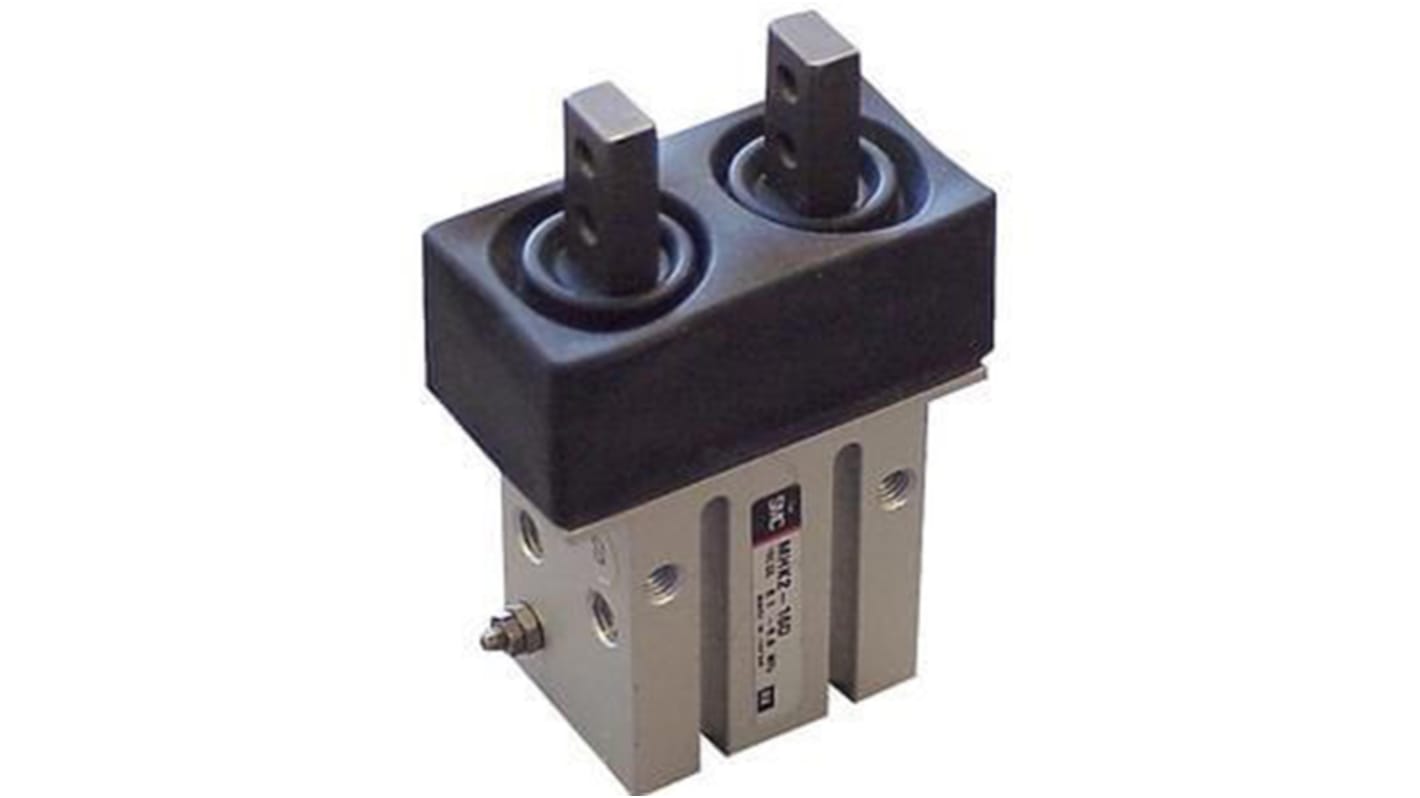

SMC 2 Finger Double Action Pneumatic Gripper, MHKL2-16D, Parallel Gripping Type

View all Pneumatic Grippers

Subtotal (1 unit)*

£438.44

(exc. VAT)

£526.13

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£438.44

*price indicative

RS Stock No.:
235-3292
Mfr. Part No.:
MHKL2-16D
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Number of Fingers

2

Gripping Type

Parallel

Action

Double

Manufacturer Series

MHK

COO (Country of Origin):
JP
The SMC MHK2 series parallel gripper was designed to accommodate applications that require a high degree of accuracy in a wide range of environments. The finger action accuracy is accomplished through the use of a wedge cam mechanism, which allows repeat ability to +/-0.01mm and yields much higher axial load characteristics which permits use in insert press procedures. The gripper body is enhanced by a rear centring hole +/-0.1mm and two location pin holes with H9 tolerance. The MHK2 gripper is standard with a dust cover for protection against direct exposure to harsh environments (available in Chloroprene, Flouro, and Silicone Rubber) and has optional stainless steel fingers.

Bore size 16mm
Action D
Finger material carbon steel
