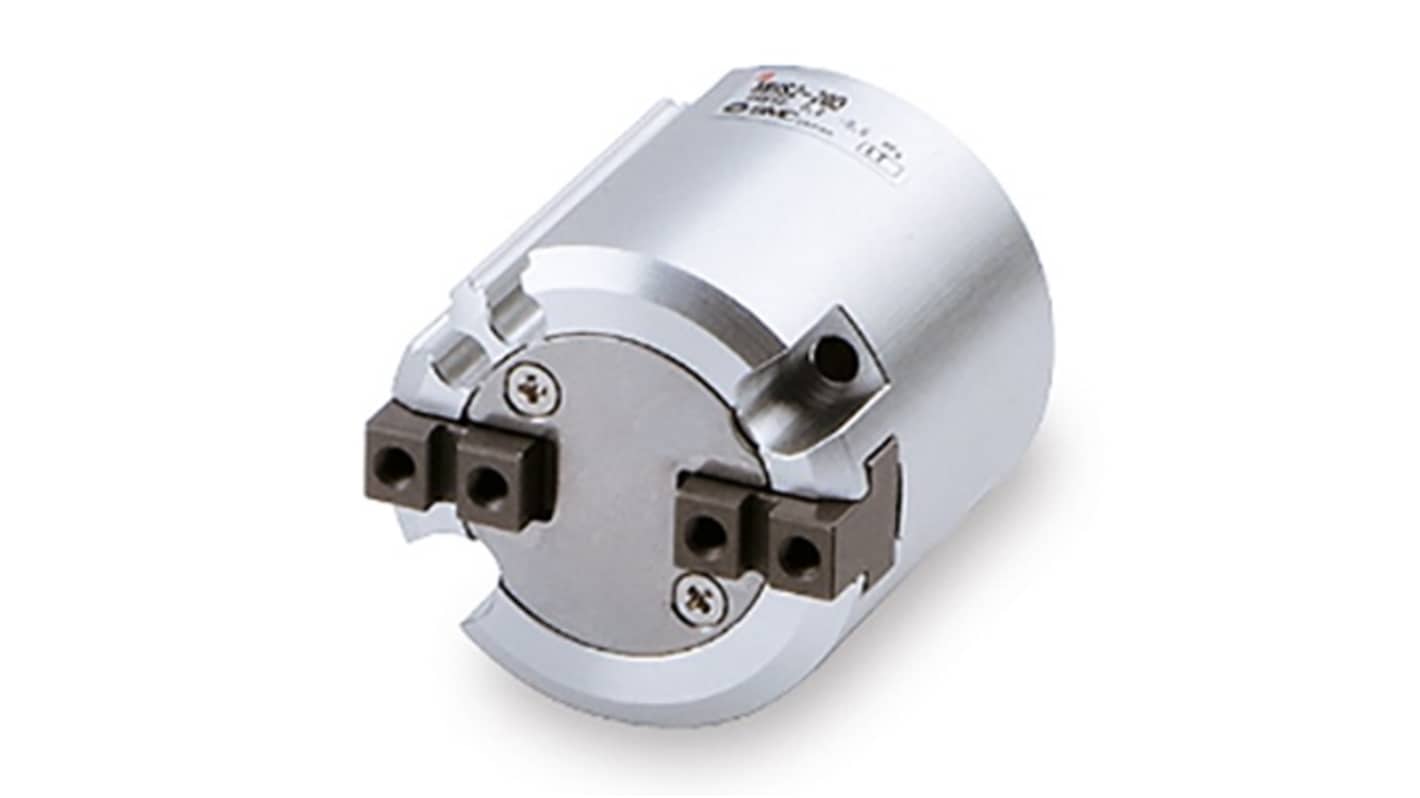

SMC 2 Finger Double Acting Action Pneumatic Gripper, MHS2-63D, Parallel Gripping Type
- RS Stock No.:
- 393-246
- Mfr. Part No.:
- MHS2-63D
- Brand:
- SMC
Subtotal (1 unit)*
£476.93
(exc. VAT)
£572.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £476.93 |
*price indicative
- RS Stock No.:
- 393-246
- Mfr. Part No.:
- MHS2-63D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Number of Fingers | 2 | |
| Product Type | Pneumatic Gripper | |
| Bore Size | 63 mm | |
| Gripping Type | Parallel | |
| Action Type | Double Acting | |
| Stroke Length | 16mm | |
| Series | MHS2 | |
| Maximum Operating Pressure | 6 bar | |
| Weight | 0.952kg | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - Internal | 537N | |
| Gripping Force - External | 502N | |
| Maximum Operating Temperature | 60°C | |
| Height | 66mm | |
| Standards/Approvals | ISO 4414, RoHS, ISO 4413, IEC 60204-1, ISO 10218-1 | |
| Maximum Operating Frequency | 120cpm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Number of Fingers 2 | ||
Product Type Pneumatic Gripper | ||
Bore Size 63 mm | ||
Gripping Type Parallel | ||
Action Type Double Acting | ||
Stroke Length 16mm | ||
Series MHS2 | ||
Maximum Operating Pressure 6 bar | ||
Weight 0.952kg | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - Internal 537N | ||
Gripping Force - External 502N | ||
Maximum Operating Temperature 60°C | ||
Height 66mm | ||
Standards/Approvals ISO 4414, RoHS, ISO 4413, IEC 60204-1, ISO 10218-1 | ||
Maximum Operating Frequency 120cpm | ||
- COO (Country of Origin):
- JP
The SMC Parallel-style air gripper actuator with a round body and two fingers, designed for precise gripping tasks in automation systems. It features a wedge-shaped cam construction for compactness and lightweight design.
Versatile mounting
Auto switch compatibility
Durable design
