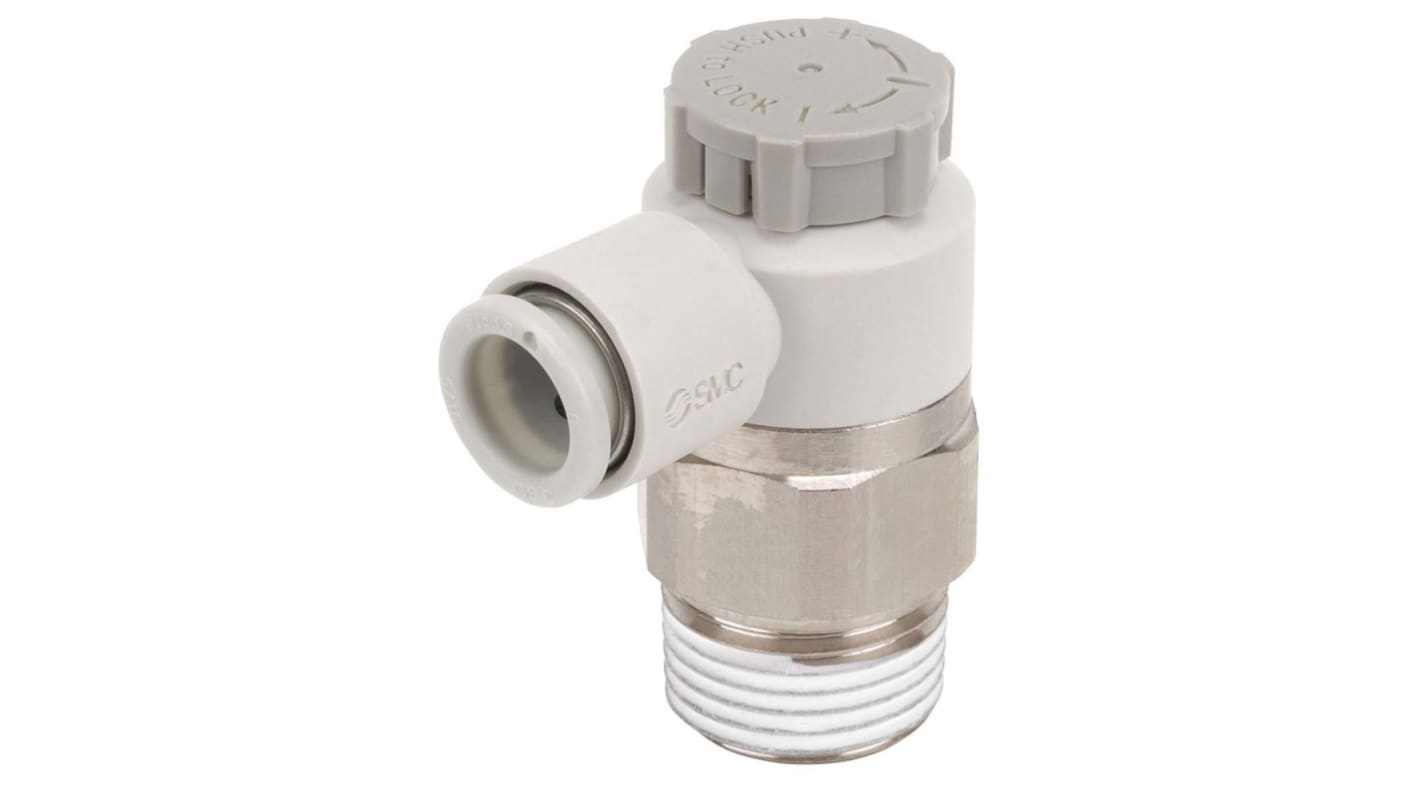

SMC AS Series Threaded Flow Controller, M5 x 0.8 Male Inlet Port x 6mm Tube Outlet Port

Minimises installation time and cost
Accepts nylon or polyurethane tubing
Wide variety of sizes
Speed accurately controlled even at low velocity
Constant speed easily set
Retaining function prevents loss of needle
Meter out operation
Universal type allows body to swivel 360°

This flow controller is specifically designed for precision in pneumatic applications. Ideal for managing airflow, it features a threaded inlet port with a standard size of M5 x 0.8 male. This model provides reliable performance across a wide pressure range, operating between a minimum of 0.1 MPa and a maximum of 1 MPa, with a proof pressure of 1.05 MPa. The tube outlet port allows for seamless integration with a 6mm tube, making it suitable for various industrial processes.

• Provides accurate pneumatic flow control for enhanced efficiency
• Threaded inlet design ensures secure connections and easy installation
• High-pressure capabilities support demanding operational environments
• Compact dimensions facilitate installation in space-restricted areas
• Tubing compatibility with 6mm ensures versatility across applications
• Metric threading standard aligns with common industrial practices

• Utilised in pneumatic systems requiring precise airflow regulation
• Employed in automation technologies for controlled pressure outputs
• Suitable for use in manufacturing settings with high-pressure requirements
• Integrated within mechanical systems for optimised performance
• Utilised in fluid power focusing on efficiency

The inlet port features an M5 x 0.8 male thread, adhering to metric standards for consistent compatibility with various systems.

It operates reliably within a range of 0.1 MPa to 1 MPa, providing flexibility in pressure management for diverse applications.

Yes, it can handle a proof pressure of up to 1.05 MPa, making it effective for high-pressure environments.

The threaded inlet and 6mm tube outlet ensure straightforward installation into most existing pneumatic configurations.

Ensure that the connection is secure to prevent leaks and that the pressure settings are configured correctly for optimal performance.

Flow Regulators & Restrictors - SMC

Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
