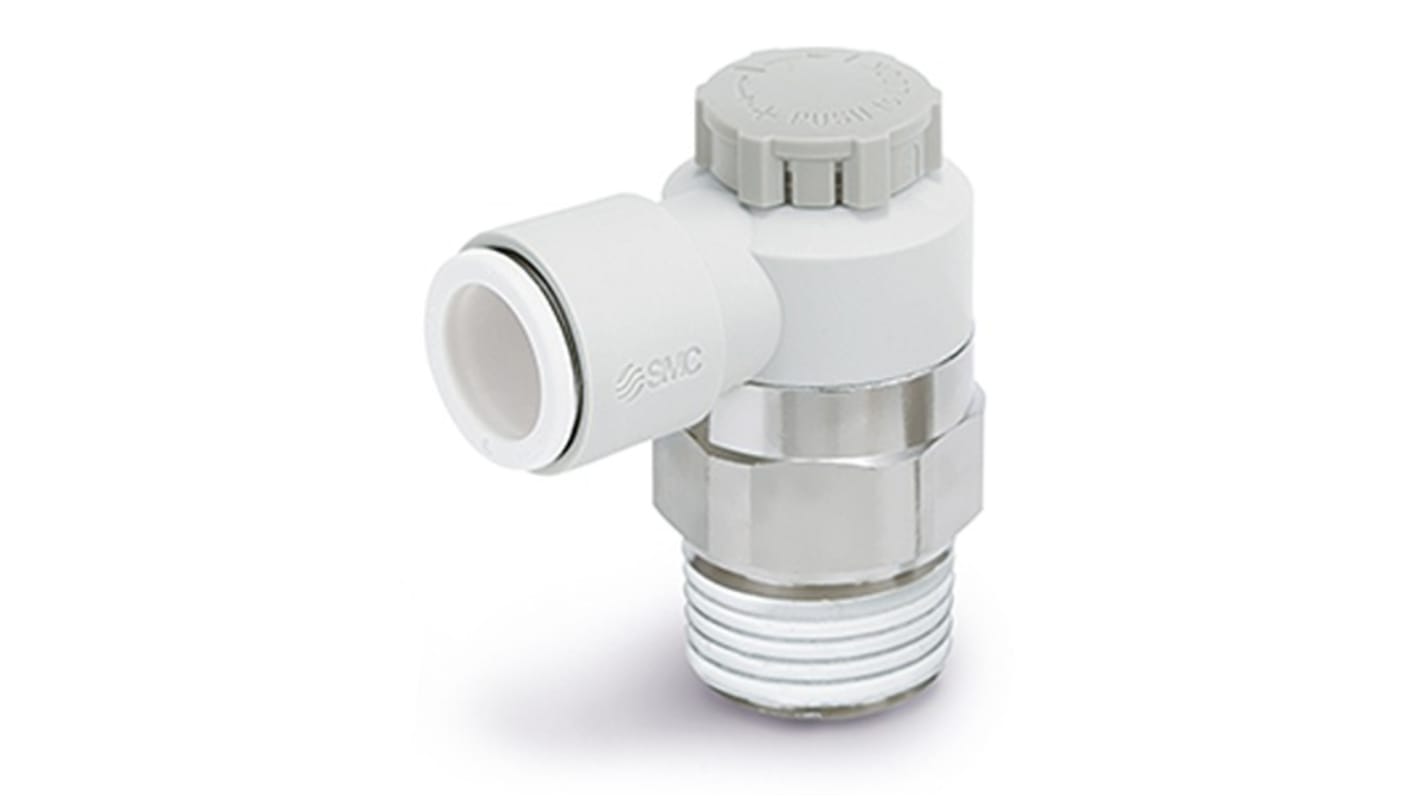

SMC AS Series Speed Controller Pneumatic Elbow Threaded-to-Tube Adapter, M5 M5 x 0.8 6 mm

View this category

Subtotal (1 unit)*

£15.91

(exc. VAT)

£19.09

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • Plus 5 left, shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£15.91

*price indicative

RS Stock No.:
280-9128
Mfr. Part No.:
AS1201FG-M5-06A
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Inlet Connection Type

M5

Product Type

Pneumatic Elbow Threaded-to-Tube Adapter

Sub Type

Speed Controller

Inlet Connection Size

M5 x 0.8

Outlet Connection Size

6 mm

Series

AS

Maximum Operating Pressure

1 MPa

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Minimum Operating Pressure

0.1MPa

Proof Pressure

1.5MPa

SMC Series AS Pneumatic Elbow Threaded-to-Tube adaptor, M5 Inlet Thread, 6mm Outlet size - AS1201FG-M5-06A


This pneumatic elbow threaded-to-tube adaptor converts a threaded inlet to a push-in tube outlet for Compact pneumatic installations. It is intended for use in control and actuation systems where a right-angle change of direction is required, offering a Compact Interface between a male metric thread and a small bore pneumatic tube in industrial automation environments.

Features & Benefits


• M5 inlet thread provides secure connection and quick assembly
• 6mm push-in outlet enables Rapid tube insertion and removal
• Operates up to 1 MPa for standard pneumatic system pressures
• Proof pressure 1.5 MPa gives resilience against pressure spikes
• Temperature range -5°C to 60°C allows varied ambient use

**Applications**


• Suitable for valve manifolds in factory automation systems
• Ideal for instrument tubing in process control panels
• Used for pilot lines on pneumatic actuators and cylinders
• Can be used for machine tool Air connections with limited space

What inlet thread pitch is required for correct mating?


The inlet uses an M5 x 0.8 metric thread specification that mates with standard M5 female ports.

How does the component behave under low-pressure conditions?


It functions at pressures down to 0.1 MPa, maintaining a sealed flow path for control signals at reduced system pressures.

Is the adaptor suitable where environmental restrictions apply?


The construction complies with RoHS requirements, making it appropriate for applications with restricted hazardous substances.

What mechanical safety margin exists against overpressure?


The device is rated to withstand a proof pressure of 1.5 MPa, providing a defined overpressure tolerance beyond normal operating limits.
