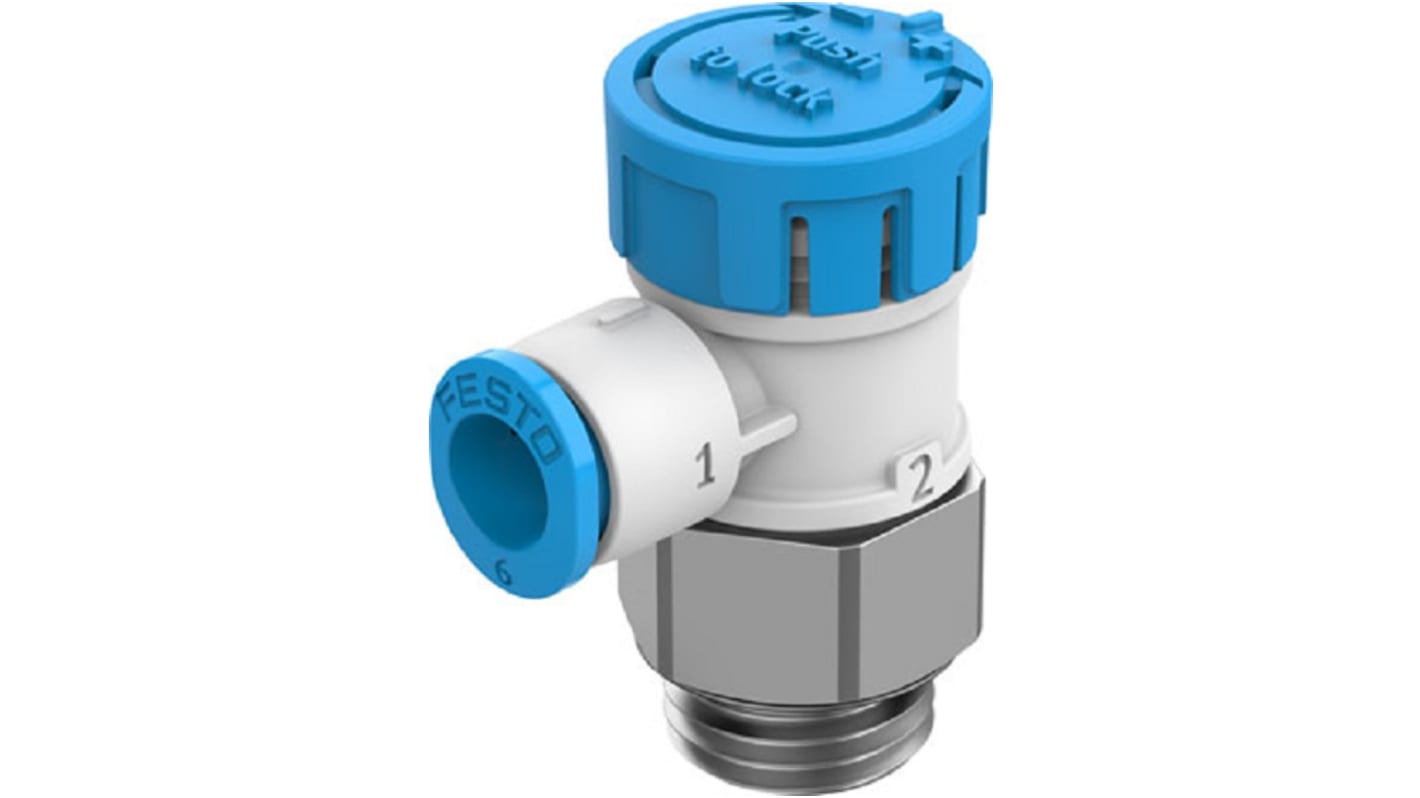

Festo VFOE Series Pneumatic Manual Control Valve, 8068728, Threaded QS-6 Threaded 1/4 in G

RS Stock No.:: 253-9251
Distrelec Article No.:: 302-64-047
Mfr. Part No.:: VFOE-LE-T-G14-Q6
Brand:: Festo

Festo VFOE Series Pneumatic Manual Control Valve, 8068728, Threaded QS-6 Threaded 1/4 in G

Subtotal (1 unit)*

£14.35

(exc. VAT)

£17.22

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

35 unit(s) ready to ship
Plus 41 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£14.35

*price indicative

RS Stock No.:: 253-9251
Distrelec Article No.:: 302-64-047
Mfr. Part No.:: VFOE-LE-T-G14-Q6
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pneumatic Manual Control Valve
	Inlet Connection Type	Threaded
	Outlet Connection Type	Threaded
	Inlet Connection Size	QS-6
	Outlet Connection Size	1/4 in G
	Series	VFOE
	Maximum Operating Pressure	10 bar
	Minimum Operating Temperature	-10°C
	Material	Polybutylene Terephthalate
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS
	Minimum Operating Pressure	10bar
	Hazardous Area Certification	ATEX
	Model Number	8068728

	Select all
	Brand Festo
	Product Type Pneumatic Manual Control Valve
	Inlet Connection Type Threaded
	Outlet Connection Type Threaded
	Inlet Connection Size QS-6
	Outlet Connection Size 1/4 in G
	Series VFOE
	Maximum Operating Pressure 10 bar
	Minimum Operating Temperature -10°C
	Material Polybutylene Terephthalate
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS
	Minimum Operating Pressure 10bar
	Hazardous Area Certification ATEX
	Model Number 8068728

COO (Country of Origin):: IN

Festo Pneumatic Manual Control Valve, 16g Weight, 400L/min Standard Flow Rate - VFOE-LE-T-G14-Q6

For responsive control at the tips of your fingers, choose this pneumatic manual control valve from Festo. It's easy to manage the movement of compressed air thanks to an ergonomic rotary actuator that turns one-way waste circulation on and off. You can use it for applications that need a modest flow rate of up to 400L/min. The NBR seals do double duty, as they're resistant to corrosion and help to prevent leaks. This keeps your system pressure at the level you want it to be. Installation is quick and easy thanks to the screw-in termination method and a G1/4 thread.

Features & Benefits

• Rotary knob locks in place to maintain your chosen setting for convenient operation

• Wide operating pressure range between 0.2 and 10 bar for versatility

• PBT housing is resistant to heat and wear for a long service life

• Light weight of 16g to place minimal strain on your system

Applications

• Food and beverage production

• Mining equipment

• Pharmaceutical industry

Can I use this device in harsh conditions?

Yes. This unit has a broad operating temperature range between -10°C and +60°C, so it's suitable for use in harsh conditions.
