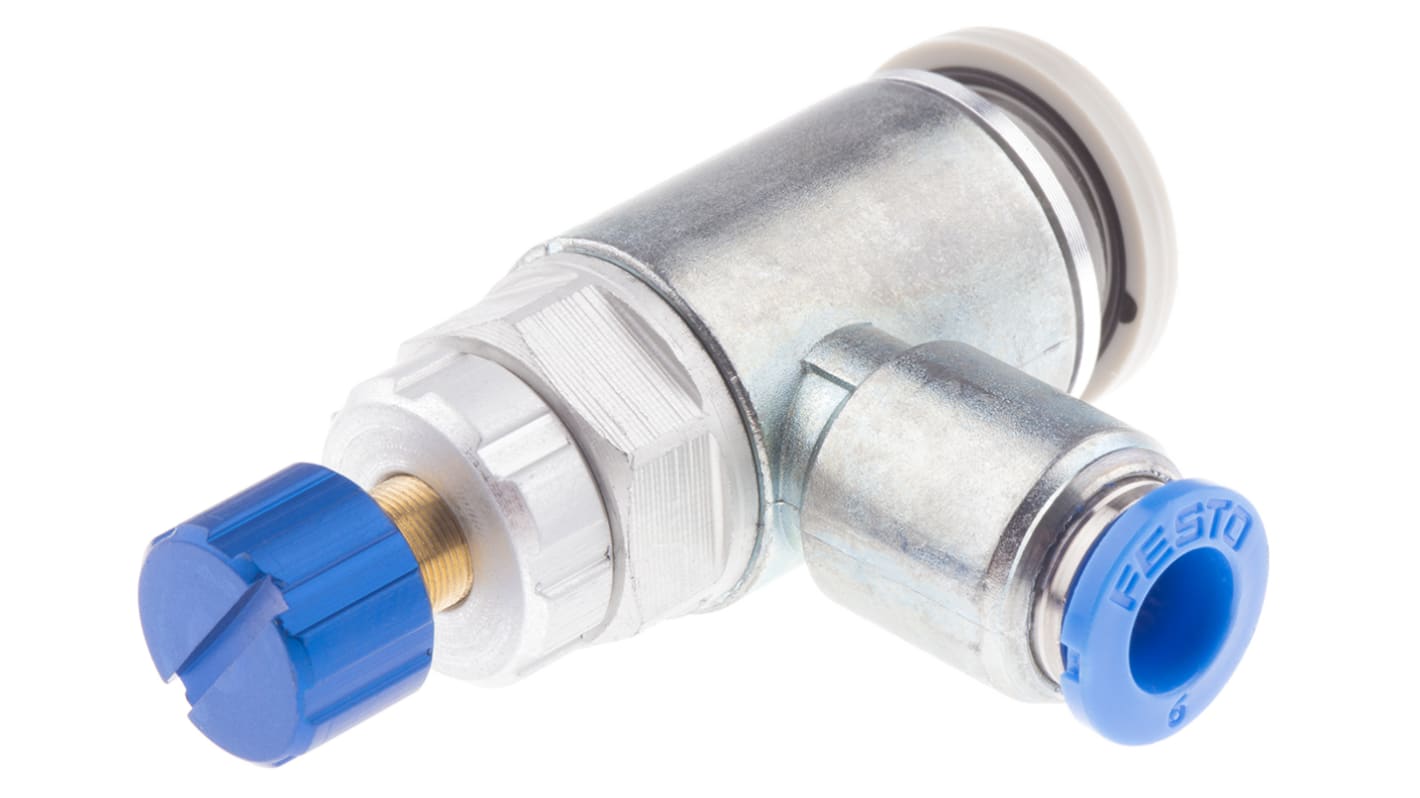

Festo GRLA Series Tube Exhaust Valve, 6mm Tube Inlet Port x G 1/4 Outlet Port, 534338

View this category
Bulk discount available

Subtotal (1 unit)*

£21.48

(exc. VAT)

£25.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 57 unit(s) ready to ship
  • Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£21.48
5 - 9£20.62
10 +£19.78

*price indicative

RS Stock No.:
121-4338
Mfr. Part No.:
GRLA-1/4-QS-6-RS-D
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Type

Flow Controller

Inlet Port Type

Tube

Tube Inlet Port

6mm

Manufacturer Series

GRLA

Outlet Port Type

Threaded

Threaded Outlet Port

G 1/4

Minimum Outlet Pressure

0.2bar

Maximum Outlet Pressure

10bar

Threaded Outlet Thread Standard

G

Threaded Outlet Thread Gender

Male

Threaded Outlet Thread Size

1/4 in

Standards Met

RoHS Compliant

Body Material

Aluminium Alloy

Model Number p

534338

COO (Country of Origin):
DE

Festo Exhaust Valve, Aluminium Alloy Body, 0.2 to 10 Bar Operating Pressure - GRLA-1/4-QS-6-RS-D


Searching for a reliable way to regulate mechanical piston speeds? Get things moving smoothly with this exhaust valve from Festo. It gives you full control over compressed air in your pneumatic system. With a one-way design, the valve restricts speed in a single direction with a fast-paced nominal flow rate of 400L/min. The 6mm inlet is a push-in type to make installation a breeze, while the G1/4 threaded outlet is widely compatible. This exhaust valve is built to last thanks to its durable wrought aluminium alloy body.

Features & Benefits


• Chemical-resistant nitrile-rubber captive seal protects against contamination
• Suitable for medium-pressure systems running at levels between 0.2 and 10 bar
• Nominal tightening torque of 5Nm means it stands up under heavy loads
• Wide operating temperature range between -10°C and +60°C for use in harsh environments

Applications


• Automotive manufacturing
• Industrial process controls
• Aerospace industry

How does this flow controller valve work?


This exhaust valve reacts to variations in pressure and temperature, automatically adjusting the flow rate of compressed air to your preset level. This regulates the piston speed of pneumatic drivers working downstream.
