SMC KQ2 Series, Male, M5, Metric
- RS Stock No.:
- 771-5336
- Distrelec Article No.:
- 304-27-838
- Mfr. Part No.:
- KQ2L04-M5A
- Brand:
- SMC
Bulk discount available
Subtotal (1 pack of 5 units)*
£18.33
(exc. VAT)
£22.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 93 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 - 4 | £18.33 | £3.666 |
| 5 - 9 | £17.25 | £3.45 |
| 10 + | £16.54 | £3.308 |
*price indicative
- RS Stock No.:
- 771-5336
- Distrelec Article No.:
- 304-27-838
- Mfr. Part No.:
- KQ2L04-M5A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Fitting | |
| Connection Thread Size | M5 | |
| Connection Thread Standard | Metric | |
| Tube Connection Size | 4 mm | |
| Tube Connection Type | Push-in | |
| Connection Gender | Male | |
| Series | KQ2 | |
| Material | Polybutylene | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Finish | Electroless Nickel Plated | |
| Angle | 90° | |
| Connection Type | M5 Male | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Fitting | ||
Connection Thread Size M5 | ||
Connection Thread Standard Metric | ||
Tube Connection Size 4 mm | ||
Tube Connection Type Push-in | ||
Connection Gender Male | ||
Series KQ2 | ||
Material Polybutylene | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Finish Electroless Nickel Plated | ||
Angle 90° | ||
Connection Type M5 Male | ||
- COO (Country of Origin):
- SG

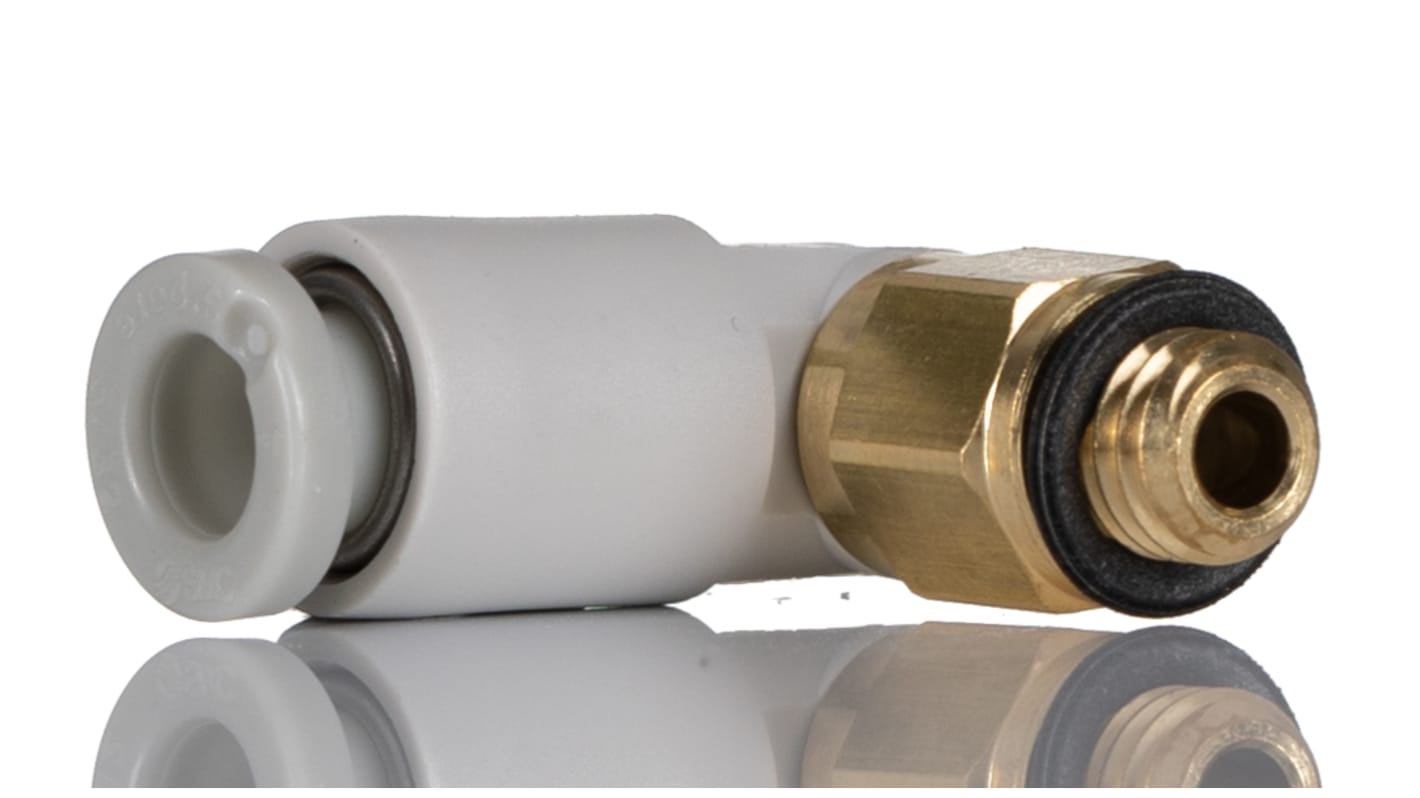

SMC KQ2 Series Pneumatic Fitting, M5 Male Connector, Push-In 4mm Connector - KQ2L04-M5A
This pneumatic fitting serves as an elbow threaded adaptor, providing an effective connection between M5 male and a push-in 4mm fitting. Designed for robust performance, it is made with high-quality brass and PBT materials, ensuring durability and resistance to wear. This fitting operates efficiently across a temperature range of -5 °C to +60 °C, making it suitable for diverse applications in the automation and mechanical industries.
Features & Benefits
• Facilitates a secure connection with M5 male threading
• Designed as a 90-degree elbow for space-efficient setups
• Push-in 4mm fitting enables quick and easy installation
• Brass construction ensures resistance to corrosion and wear
• Ideal for high-pressure applications up to 10 bar
• Complies with RoHS standards, promoting safety in use
Applications
• Used with pneumatic systems requiring compact connections
• Ideal for automation systems that require reliable pressure conveyance
• Utilised in mechanical assemblies demanding durable fittings
• Perfect for connecting tubes in confined spaces
• Employed in needing quick and secure tube connections
What is the maximum operating pressure for this fitting?
The fitting can withstand pressures up to 10 bar, ensuring safe and reliable performance in high-pressure applications.
How does the elbow design benefit installation in tight spaces?
The 90-degree elbow design allows for effective routing of pipes and hoses in limited areas, minimising installation complexity and optimising layout efficiency.
Is this fitting compatible with various types of tubing?
It is primarily designed for push-in 4mm tubing, making it suitable for a range of pneumatic applications within that specification.
What materials are used in the construction of this fitting?
The fitting is made from robust brass for the threaded connection and PBT for the body, ensuring durability and resistance to environmental factors.
Can this fitting be used in food processing applications?
This fitting is not food grade and should be used in applications where contact with food substances is not a concern.
