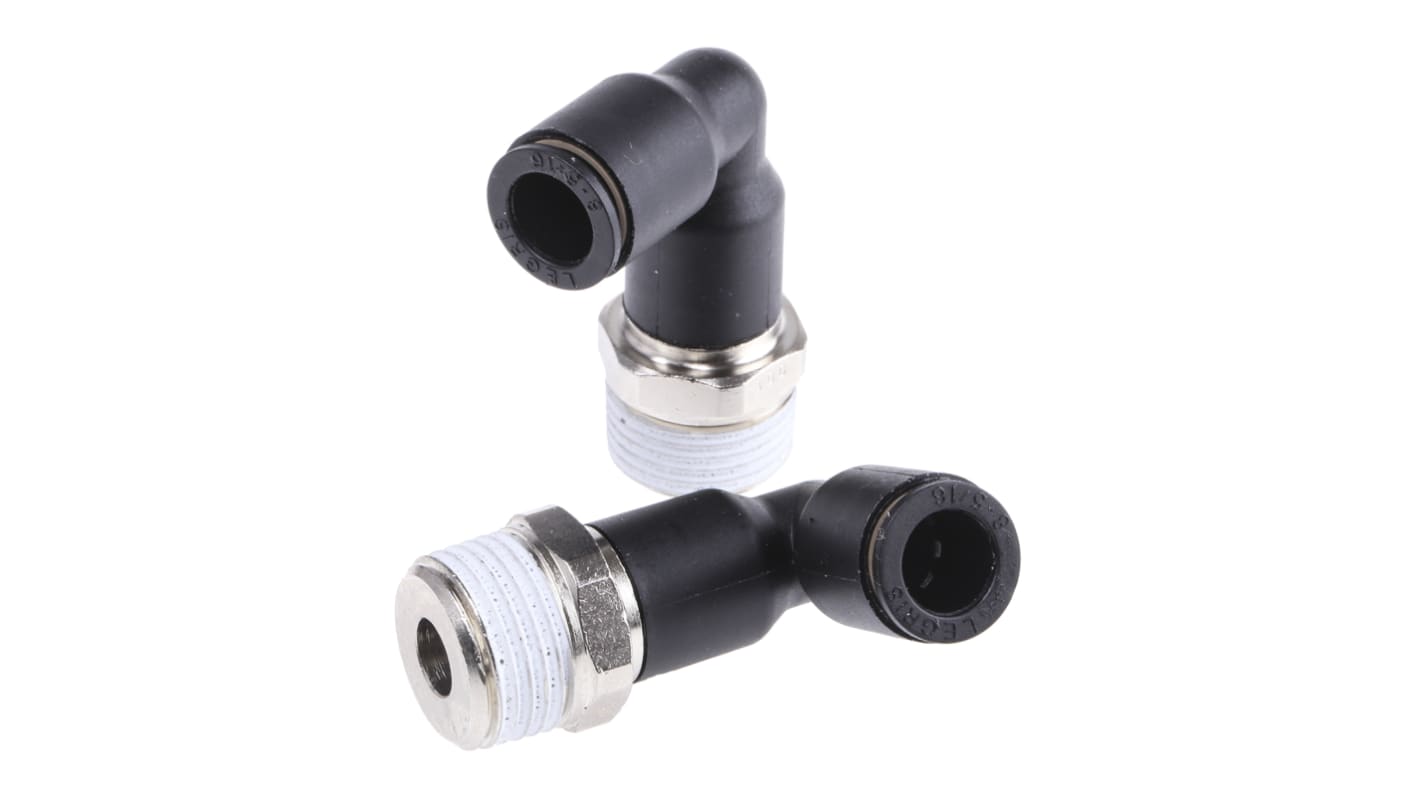

Legris LF3000 Series Elbow Threaded Adaptor, R 3/8 Male to Push In 8 mm, Threaded-to-Tube Connection Style

View all Pneumatic Fittings
Bulk discount available

Subtotal (1 pack of 5 units)*

£38.18

(exc. VAT)

£45.815

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 90 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£7.636£38.18
25 - 45£7.40£37.00
50 +£7.164£35.82

*price indicative

Photo of Pneumatic Fittings & Air Hose
Explore our Air hose range
Need compressed air system for your fittings? You’re in the right place. Our wide range of air hoses includes everything you need—all designed for secure, efficient performance. With both fittings and hoses available side by side, it’s easy to find compatible components and build a complete setup that works for your space and application.
Shop Now
RS Stock No.:
494-1270
Mfr. Part No.:
3129 08 17
Brand:
Legris
Find similar products by selecting one or more attributes.
Select all

Brand

Legris

Connector A

R 3/8 Male

Connector B

Push In 8 mm

Pneumatic Fitting Type

Elbow Threaded Adaptor

Connection Style

Threaded-to-Tube

Threaded Connection

R 3/8 Male

Manufacturer Series

LF3000

Thread Material

Nickel Plated Brass

Angle

90°

Maximum Operating Temperature

+80°C

Mounting Type

Inline

Swivel Connection

Yes

Maximum Operating Pressure

20 bar

Minimum Operating Temperature

-20°C

Body Material

Glass Reinforced Nylon

COO (Country of Origin):
FR

Extended Elbow Adaptor - Male Taper & Parallel Thread


A high-quality polymer push in fitting suitable for compressed air applications. The LF3000 fittings can be used in systems with a working pressure from a vacuum of 0.9 bar to a positive pressure of 20 bar. These fittings are suitable for use with all plastic pneumatic plastic tubing and are 100% leak tested during manufacture.
3169 fittings connect tubing at 90 degrees to a threaded port. The extended stud allows the tubing to pass over the top of 3199 elbow fittings.

Features and Benefits


Full bore design
Exceptionally low leak rate
Available with BSPP and BSPT threads
Suitable for Vacuum or pressure applications
ISO 14743 compliant
Date coded for traceability and reliability
Automatically seals in both dynamic and static situations

Note

In the Thread Size column, R indicates taper thread and G indicates parallel thread.


Threaded Tube Adaptors, Elbows and Tees


4 to 12mm compact fittings
Suitable for 99% vacuum
Push-in assembly: no tools required
Disconnect by depressing release collet
Plastic body
Nitrile O-rings


A range of pneumatic elbow and tee adaptors for converting push-in to threaded type connections.
All types have a maximum operating pressure of 20 bar and an operating temperature range of -20 to +80°C.
