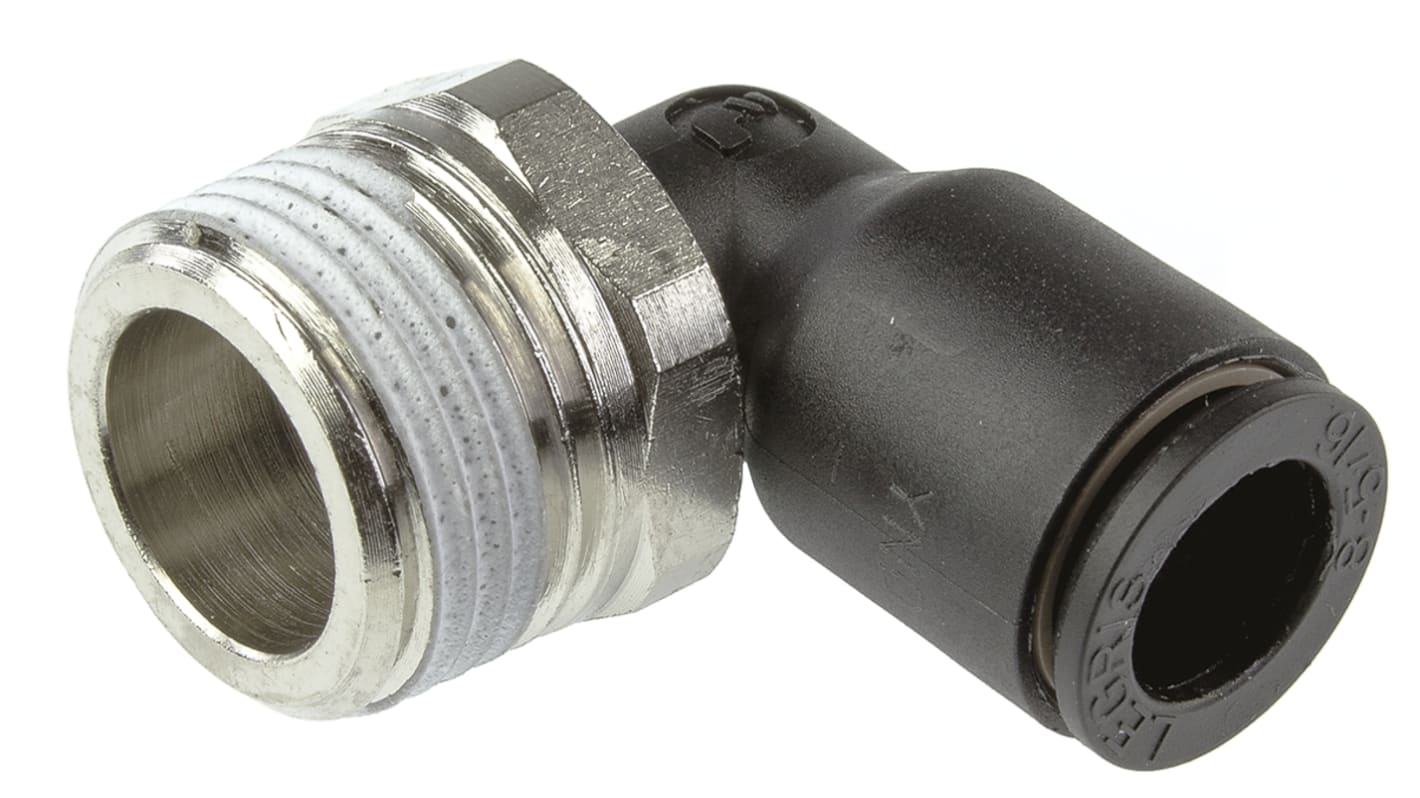

Legris LF3000 Series Elbow Threaded Adaptor, R 3/8 Male to Push In 8 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 265-5466
- Mfr. Part No.:
- 3109 08 17
- Brand:
- Legris
Subtotal (1 pack of 5 units)*
£26.18
(exc. VAT)
£31.415
(inc. VAT)
FREE delivery for orders over £50.00
- 90 unit(s) ready to ship
- Plus 70 unit(s) ready to ship from another location
- Plus 99,999,995 unit(s) shipping from 31 October 2025
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £5.236 | £26.18 |
25 - 45 | £5.078 | £25.39 |
50 + | £4.91 | £24.55 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£5.592
(exc. VAT)
£6.71
(inc. VAT)
- RS Stock No.:
- 265-5466
- Mfr. Part No.:
- 3109 08 17
- Brand:
- Legris
Select all | Attribute | Value |
---|---|---|
Brand | Legris | |
Connector A | R 3/8 Male | |
Connector B | Push In 8 mm | |
Pneumatic Fitting Type | Elbow Threaded Adaptor | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | R 3/8 Male | |
Manufacturer Series | LF3000 | |
Thread Material | Nickel Plated Brass | |
Swivel Connection | Yes | |
Maximum Operating Pressure | 20 bar | |
Mounting Type | Inline | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Body Material | Glass Reinforced Nylon | |
Angle | 90° | |
Select all | ||
---|---|---|
Brand Legris | ||
Connector A R 3/8 Male | ||
Connector B Push In 8 mm | ||
Pneumatic Fitting Type Elbow Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection R 3/8 Male | ||
Manufacturer Series LF3000 | ||
Thread Material Nickel Plated Brass | ||
Swivel Connection Yes | ||
Maximum Operating Pressure 20 bar | ||
Mounting Type Inline | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Body Material Glass Reinforced Nylon | ||
Angle 90° | ||
- COO (Country of Origin):
- FR
Stud Elbow Adaptor - Male Thread
3109 fittings are for the connection of tubing at 90° with a male thread. They can be tightened using a flat spanner or an Allen key if the installation is short on space.
Features and Benefits
Exceptionally low leak rate
Available with BSPP and BSPT threads
Suitable for Vacuum or pressure applications
ISO 14743 compliant
Date coded for traceability and reliability
Automatically seals in both dynamic and static situations
Note
Suitable for 99% vacuum
Push-in assembly: no tools required
Disconnect by depressing release collet
Plastic body
Nitrile O-rings
All types have a maximum operating pressure of 20 bar and an operating temperature range of -20 to +80°C.
