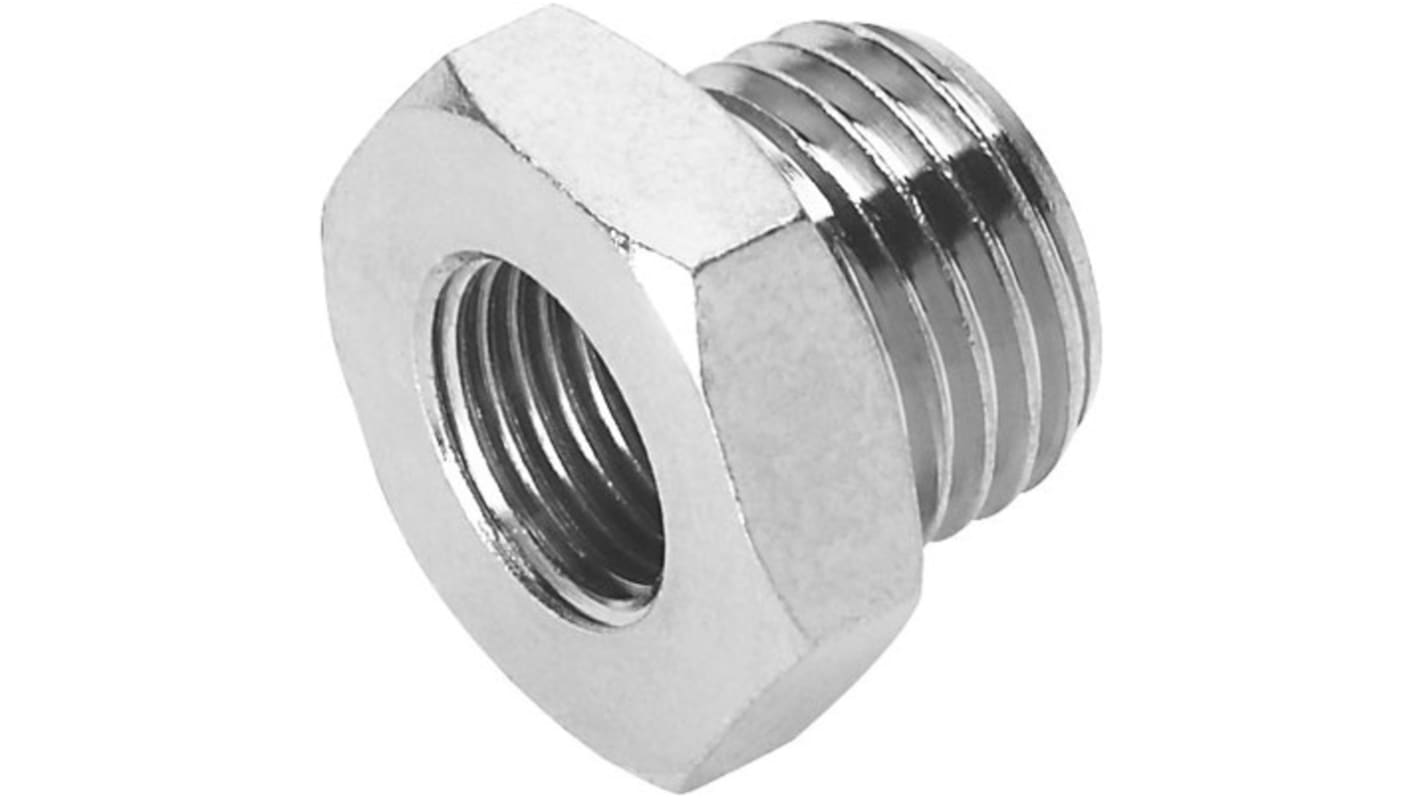

Festo NPFC Series Nipple, G 1/4 to M5, Threaded Connection Style, 8069229
- RS Stock No.:
- 289-1900
- Mfr. Part No.:
- NPFC-R-G14-M5-MF
- Brand:
- Festo
Subtotal (1 pack of 10 units)*
£38.07
(exc. VAT)
£45.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £3.807 | £38.07 |
*price indicative
- RS Stock No.:
- 289-1900
- Mfr. Part No.:
- NPFC-R-G14-M5-MF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | G 1/4 | |
Connector B | M5 | |
Pneumatic Fitting Type | Nipple | |
Connection Style | Threaded | |
Manufacturer Series | NPFC | |
Model Number p | 8069229 | |
Thread Material | Nickel Plated Brass | |
Maximum Operating Temperature | +150°C | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Pressure | 50 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A G 1/4 | ||
Connector B M5 | ||
Pneumatic Fitting Type Nipple | ||
Connection Style Threaded | ||
Manufacturer Series NPFC | ||
Model Number p 8069229 | ||
Thread Material Nickel Plated Brass | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Pressure 50 bar | ||
- COO (Country of Origin):
- IT
Festo NPFC Series Pneumatic Fitting, G 1/4 Connector A, M5 Connector B - NPFC-R-G14-M5-MF, Numeric Part Number: 8069229
This pneumatic fitting serves as a reducing nipple, designed for efficient connectivity in pneumatic systems. Made from nickel-plated brass, it features threaded connections for secure attachment. Operating at a temperature range between -20°C and +150°C, this fitting ensures reliable performance in various environments. The G 1/4 port accommodates an M5 pneumatic connector, making it versatile for integration into existing setups.
Features & Benefits
• Nickel-plated brass construction enhances durability and corrosion resistance
• Suitable for operating pressures up to 50 bar
• RoHS-compliant for safety and environmental considerations
• Low corrosion stress rating ensures long-term reliability
• High-temperature tolerance increases operational adaptability
• Compact design simplifies installation in confined spaces
• Suitable for operating pressures up to 50 bar
• RoHS-compliant for safety and environmental considerations
• Low corrosion stress rating ensures long-term reliability
• High-temperature tolerance increases operational adaptability
• Compact design simplifies installation in confined spaces
Applications
• Used with pneumatic tools requiring G 1/4 connections
• Suitable for air circuits in industrial automation
• Integrates seamlessly into compressed air systems
• Utilised in robotics for stable pneumatic connections
• Suitable for air circuits in industrial automation
• Integrates seamlessly into compressed air systems
• Utilised in robotics for stable pneumatic connections
What are the maximum and minimum temperatures this fitting can handle?
The fitting operates effectively between -20°C and +150°C, allowing it to function in a wide range of environments, from cold to high-temperature applications.
How does the corrosion resistance of this fitting impact its longevity?
This fitting has a low corrosion stress rating, which helps maintain its integrity over time, particularly in environments exposed to moisture, ensuring a longer service life before needing replacement.
What operating pressure does this fitting accommodate?
It can handle pressures from -0.95 bar to 50 bar, making it suitable for both low and high-pressure pneumatic applications.
Is this fitting compliant with industry standards?
Yes, the fitting is RoHS-compliant, ensuring it meets safety and environmental directives commonly required in industrial applications.
