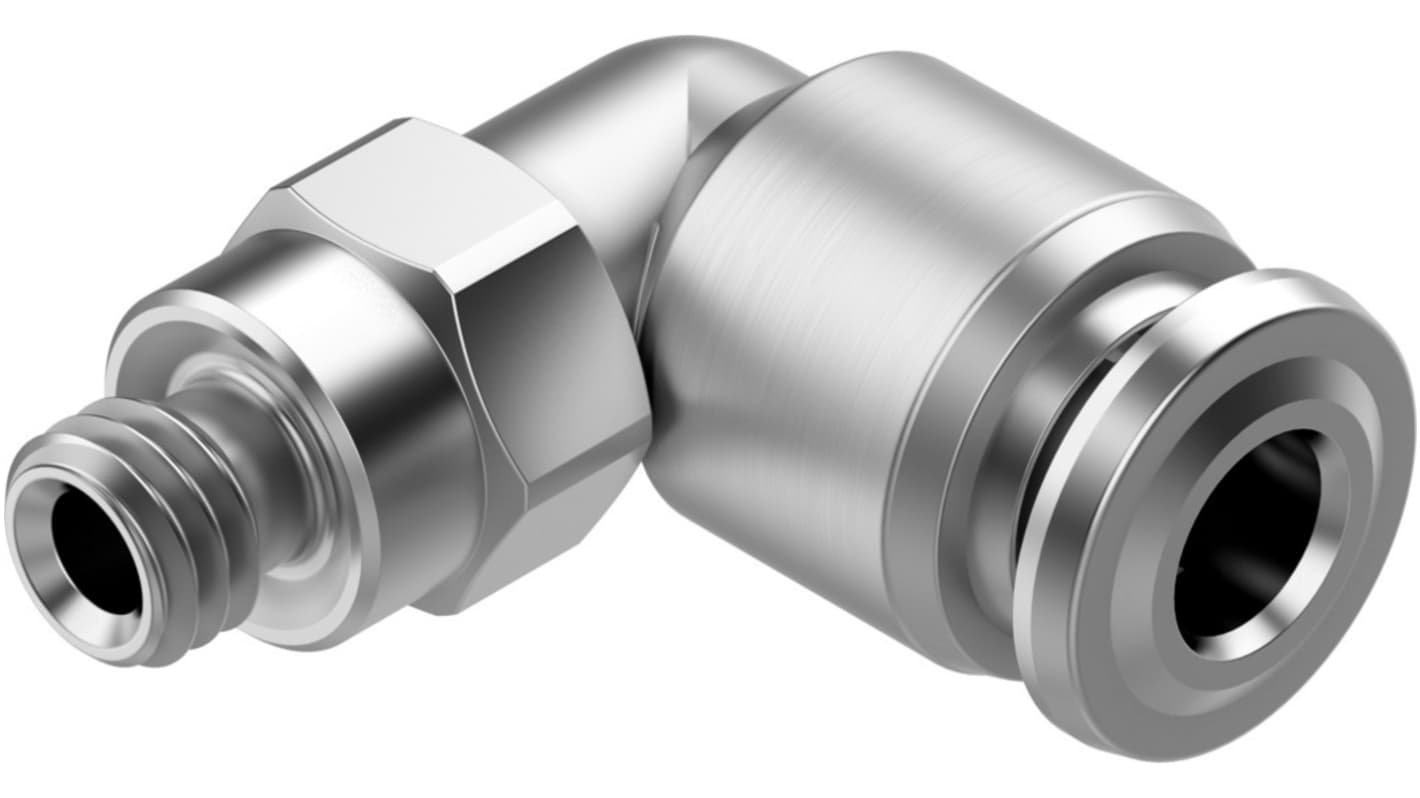

Festo NPQR Series Elbow Fitting, M5 Male to For tubing outside diameter 4 mm, Threaded-to-Tube Connection Style, 8085679
- RS Stock No.:
- 273-7093
- Mfr. Part No.:
- NPQR-L-M5-Q4
- Brand:
- Festo
Subtotal (1 unit)*
£25.27
(exc. VAT)
£30.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £25.27 |
*price indicative
- RS Stock No.:
- 273-7093
- Mfr. Part No.:
- NPQR-L-M5-Q4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | M5 Male | |
Connector B | For tubing outside diameter 4 mm | |
Pneumatic Fitting Type | Elbow Fitting | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | M5 Male | |
Manufacturer Series | NPQR | |
Model Number p | 8085679 | |
Maximum Operating Pressure | 16 bar | |
Maximum Operating Temperature | +150°C | |
Minimum Operating Temperature | -20°C | |
Food Grade | Yes | |
Body Material | High Alloy Stainless Steel | |
Mounting Type | External Hexagon | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A M5 Male | ||
Connector B For tubing outside diameter 4 mm | ||
Pneumatic Fitting Type Elbow Fitting | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection M5 Male | ||
Manufacturer Series NPQR | ||
Model Number p 8085679 | ||
Maximum Operating Pressure 16 bar | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -20°C | ||
Food Grade Yes | ||
Body Material High Alloy Stainless Steel | ||
Mounting Type External Hexagon | ||
- COO (Country of Origin):
- IT
Festo NPQR Series Push-in Fitting, M5 Male Connector A, 4mm Outside Diameter for Tubing - NPQR-L-M5-Q4, Numeric Part Number: 8085679
This push-in fitting is an elbow connector that effectively facilitates the connection of tubing with an outer diameter of 4mm to an M5 male thread. Constructed from high alloy stainless steel, it is designed to withstand a maximum operating temperature of +150°C and a minimum temperature of -20°C, making it suitable for a variety of challenging environments.
Features & Benefits
• Elbow design allows for versatile installation in confined spaces
• Sealing ring ensures a leak-free connection for reliable performance
• External hexagon enables easy mounting with standard tools
• High alloy stainless steel construction enhances durability and corrosion resistance
• Suitable for food-grade applications ensuring compliance with industry standards
• Operates effectively under pressures up to 16 bar
• Sealing ring ensures a leak-free connection for reliable performance
• External hexagon enables easy mounting with standard tools
• High alloy stainless steel construction enhances durability and corrosion resistance
• Suitable for food-grade applications ensuring compliance with industry standards
• Operates effectively under pressures up to 16 bar
Applications
• Used with pneumatic systems requiring compact elbow fittings
• Ideal for in automation and battery production
• Suitable for use in cleanroom environments with Class 4 specifications
• Applied in sectors requiring compliance with food safety regulations
• Ideal for in automation and battery production
• Suitable for use in cleanroom environments with Class 4 specifications
• Applied in sectors requiring compliance with food safety regulations
What is the maximum pressure this fitting can handle?
The fitting is rated to withstand a maximum operating pressure of 16 bar, ensuring robust performance in demanding applications.
Can this fitting be used in food processing systems?
Yes, it is classified as food grade, adhering to the necessary safety standards for use in food applications, including NSF/ANSI 169 compliance.
What materials are used in the construction of the fitting?
The fitting is predominantly made from high alloy stainless steel, featuring FPM seals that provide excellent wear resistance and longevity.
How does the design of the fitting affect its installation?
The external hexagon design allows for straightforward mounting with standard tools, making installation quick and efficient even in restricted spaces.
