Festo NPQR Series Push-in Fitting, G 1/8 Male to For tubing outside diameter 6 mm, Threaded-to-Tube Connection Style,
- RS Stock No.:
- 273-7089
- Mfr. Part No.:
- NPQR-L-G18-Q6
- Brand:
- Festo
Subtotal (1 unit)*
£31.27
(exc. VAT)
£37.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £31.27 |
*price indicative
- RS Stock No.:
- 273-7089
- Mfr. Part No.:
- NPQR-L-G18-Q6
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | G 1/8 Male | |
Connector B | For tubing outside diameter 6 mm | |
Pneumatic Fitting Type | Push-in Fitting | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | G 3/4 | |
Manufacturer Series | NPQR | |
Model Number p | 8085681 | |
Maximum Operating Temperature | +150°C | |
Mounting Type | External Hexagon | |
Maximum Operating Pressure | 16 bar | |
Minimum Operating Temperature | -20°C | |
Body Material | High Alloy Stainless Steel | |
Food Grade | Yes | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A G 1/8 Male | ||
Connector B For tubing outside diameter 6 mm | ||
Pneumatic Fitting Type Push-in Fitting | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection G 3/4 | ||
Manufacturer Series NPQR | ||
Model Number p 8085681 | ||
Maximum Operating Temperature +150°C | ||
Mounting Type External Hexagon | ||
Maximum Operating Pressure 16 bar | ||
Minimum Operating Temperature -20°C | ||
Body Material High Alloy Stainless Steel | ||
Food Grade Yes | ||
- COO (Country of Origin):
- IT

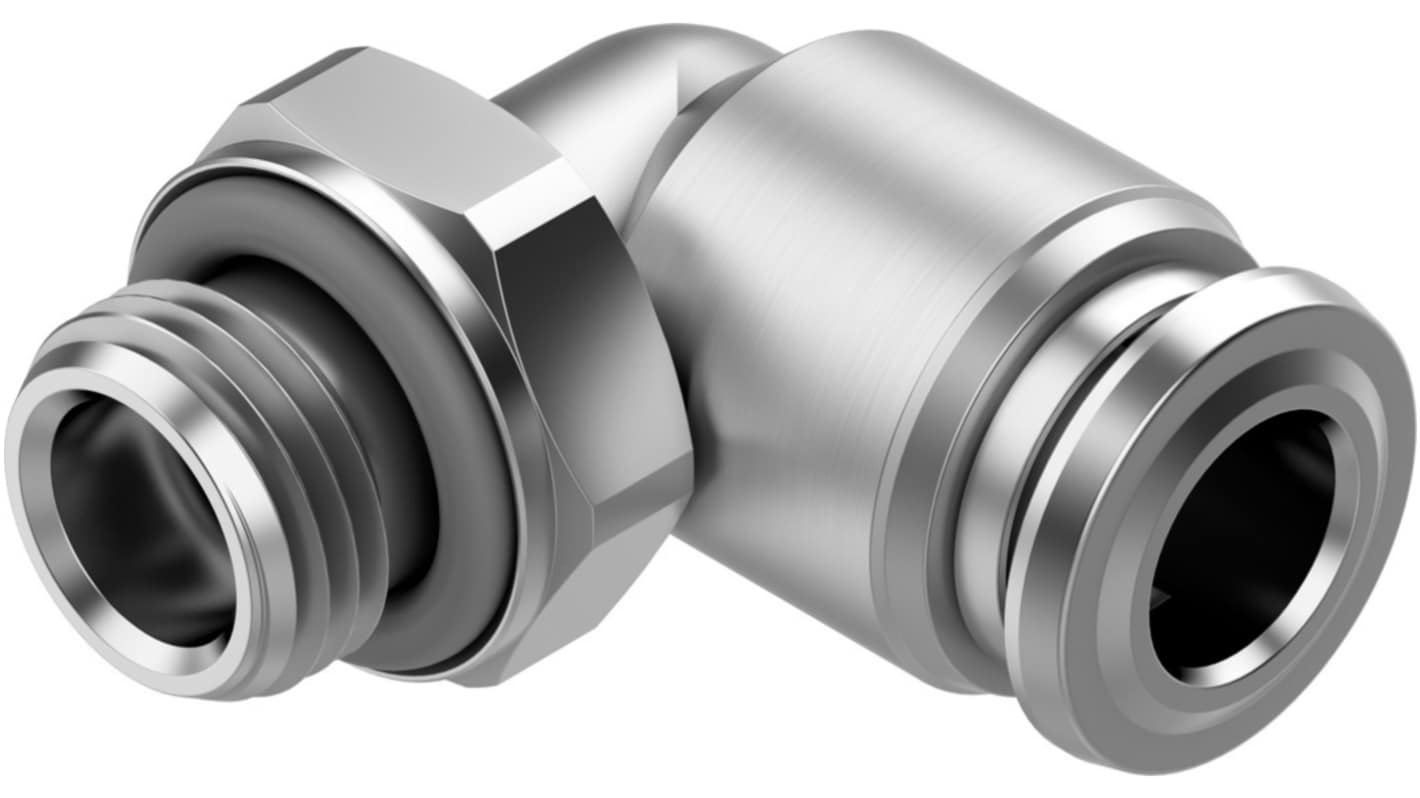

Festo NPQR Series Push-in Fitting, G 1/8 Male Connector, 6mm Tubing Diameter - NPQR-L-G18-Q6, Numeric Part Number: 8085681
This push-in fitting is designed for efficient connection in pneumatic systems. Featuring a G 1/8 male connector and compatible with 6mm tubing, this product meets high performance and food-grade requirements. Constructed from high-alloy stainless steel, it ensures durability in various environments while operating efficiently at temperatures from -20°C to +150°C.
Features & Benefits
• Designed with a push-pull principle for easy connection
• High-alloy stainless steel construction offers corrosion resistance
• Suitable for both compressed air and water applications
• External hexagon design simplifies mounting in tight spaces
• Operating pressure range accommodates high pressure up to 16 bar
• NSF certified for food-grade use ensures safe application
• High-alloy stainless steel construction offers corrosion resistance
• Suitable for both compressed air and water applications
• External hexagon design simplifies mounting in tight spaces
• Operating pressure range accommodates high pressure up to 16 bar
• NSF certified for food-grade use ensures safe application
Applications
• Used for connecting tubing in automated machinery
• Utilised in food and beverage processing systems
• Ideal for high-pressure pneumatic systems
• Employed in cleanroom environments for sensitive
• Compatible with battery production lines
• Utilised in food and beverage processing systems
• Ideal for high-pressure pneumatic systems
• Employed in cleanroom environments for sensitive
• Compatible with battery production lines
What operating pressures can be managed with this fitting?
It can handle an operating pressure range of -0.095 MPa to 1.6 MPa, equating to a maximum of 16 bar, suitable for various pneumatic applications.
Is this fitting suitable for use in corrosive environments?
Yes, made from high-alloy stainless steel, it provides a very high corrosion resistance class, making it suitable for use in challenging environments.
What temperature range can this fitting withstand?
The fitting operates effectively within a temperature range of -20°C to +150°C, accommodating diverse working conditions.
