Norgren Pneufit Series, Male, 10226, 1/4 in, G
- RS Stock No.:
- 259-5258
- Mfr. Part No.:
- 102260628
- Brand:
- Norgren
Subtotal (1 pack of 5 units)*
£23.79
(exc. VAT)
£28.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 25 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £4.758 | £23.79 |
*price indicative
- RS Stock No.:
- 259-5258
- Mfr. Part No.:
- 102260628
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Fitting | |
| Connection Thread Size | 1/4 in | |
| Connection Thread Standard | G | |
| Connection Size A | G 1/4 Male | |
| Connection Type | Threaded-to-Tube | |
| Connection Size B | Push In 6 mm | |
| Series | Pneufit | |
| Connection Gender | Male | |
| Tube Connection Type | Push-in | |
| Tube Connection Size | 6mm | |
| Material | Nickel Plated Brass | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Maximum Operating Pressure | 18 bar | |
| Model Number | 10226 | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Fitting | ||
Connection Thread Size 1/4 in | ||
Connection Thread Standard G | ||
Connection Size A G 1/4 Male | ||
Connection Type Threaded-to-Tube | ||
Connection Size B Push In 6 mm | ||
Series Pneufit | ||
Connection Gender Male | ||
Tube Connection Type Push-in | ||
Tube Connection Size 6mm | ||
Material Nickel Plated Brass | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
Maximum Operating Pressure 18 bar | ||
Model Number 10226 | ||
- COO (Country of Origin):
- IT

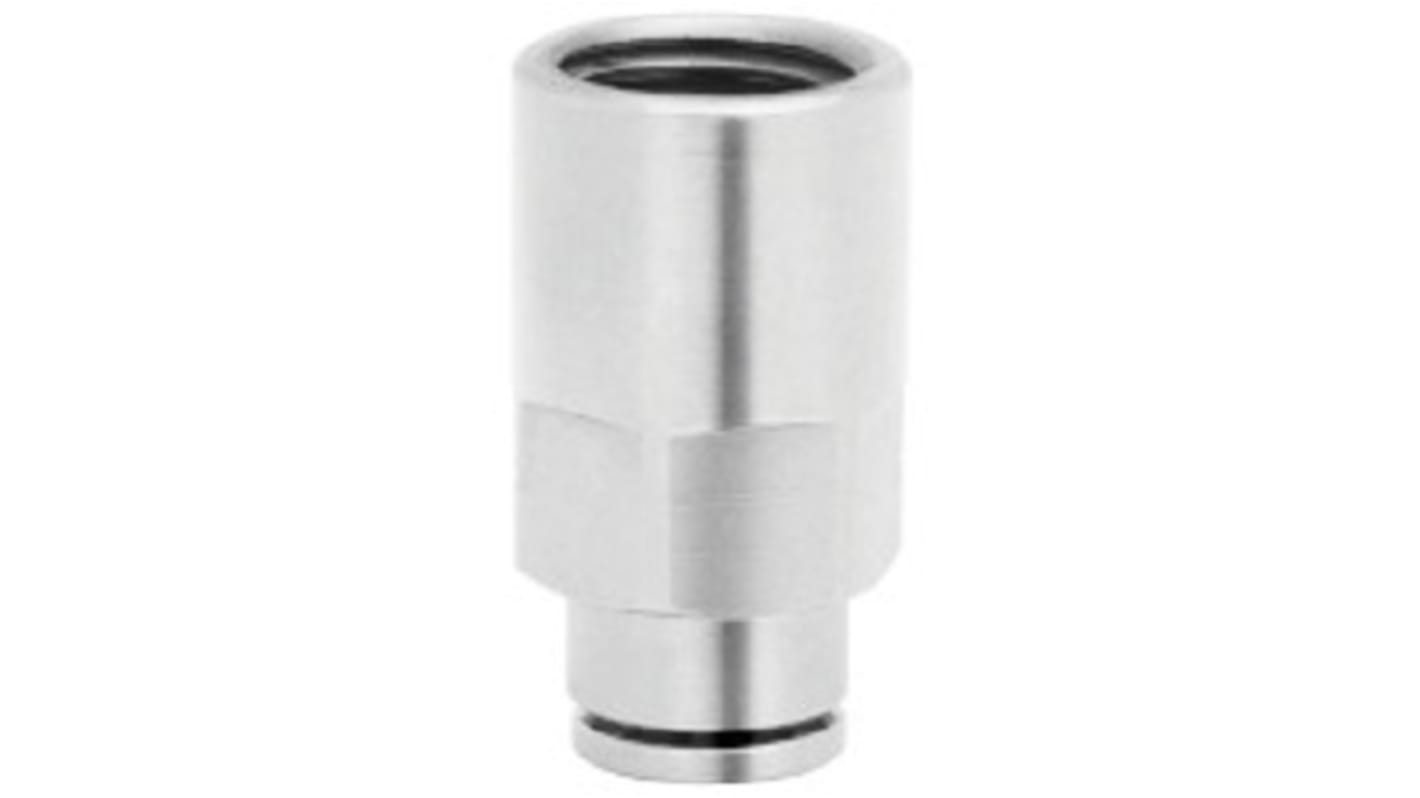

IMI Norgren Pneumatic Fitting, Nickel-Plated Brass Body, -0.9 to 18 Bar Operating Pressure - Pneufit 10 Series - 1022606
Connect components in seconds with this pneumatic fitting from IMI Norgren. It's a threaded-to-tube type that keeps tubes and pipes secured in place, even during heavy-duty operations where an operating pressure range of -0.9 to 18 bar can be expected. The push-in 6mm outlet port makes tube insertion simple and lets you speed through the assembly of pneumatic circuits. A G1/4 male threaded connection at the other end is widely compatible with standard equipment. As it's made from robust nickel-plated brass, this pneumatic fitting resists corrosion and impacts, so stands the test of time.
Features & Benefits
• Withstands harsh industrial settings with ambient temperatures between -20°C and +80°C
• Light weight of 23g, so it won't put strain on your system
• Includes an internal hexagon for easy fitting with an Allen key
• Internal silicone-free O-rings provide a tight seal to maintain air pressure during use
Applications
• Pharmaceutical industry
• Hoisting equipment
• Automated assembly lines
What type of tubing can I use with this pneumatic fitting?
This adaptor can be used with commonly used tubing made from PA 11 or 12, as well as PUR, for wide compatibility.
