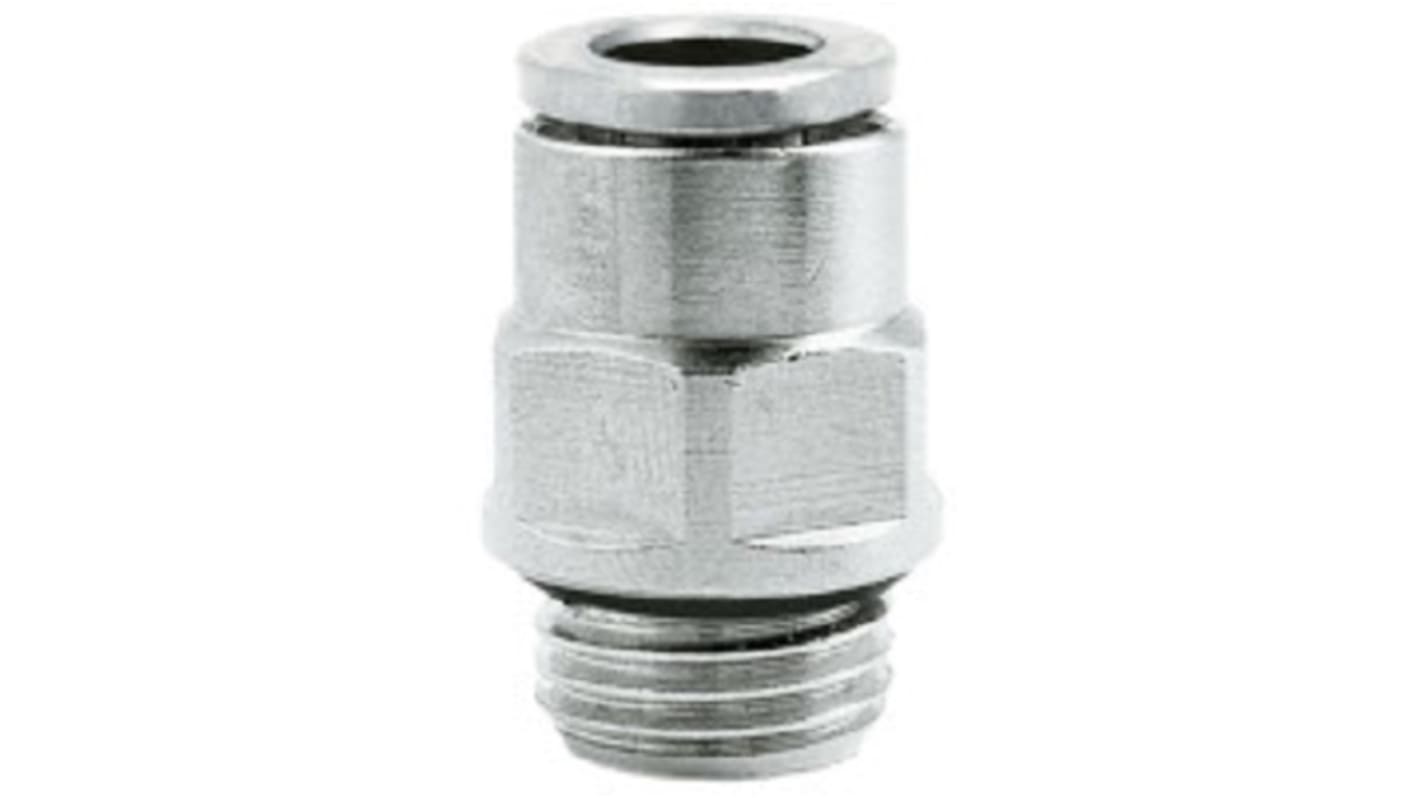

Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 259-5247
- Mfr. Part No.:
- 102250828
- Brand:
- Norgren
Subtotal (1 pack of 5 units)*
£18.10
(exc. VAT)
£21.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
- Plus 75 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £3.62 | £18.10 |
*price indicative
- RS Stock No.:
- 259-5247
- Mfr. Part No.:
- 102250828
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Connector A | G 1/4 Male | |
Connector B | Push In 8 mm | |
Pneumatic Fitting Type | Straight Threaded Adaptor | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | G 1/4 Male | |
Manufacturer Series | PNEUFIT 10 | |
Inlet Port | G 1/4 Male | |
Number of Inlet Ports | 1 | |
Outlet Port | Push In 8 mm | |
Number of Outlet Ports | 1 | |
Thread Material | Nickel Plated Brass | |
Chemical Resistant | No | |
Body Material | Nickel Plated Brass | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Angle | Straight | |
Maximum Operating Pressure | 18 bar | |
Select all | ||
---|---|---|
Brand Norgren | ||
Connector A G 1/4 Male | ||
Connector B Push In 8 mm | ||
Pneumatic Fitting Type Straight Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection G 1/4 Male | ||
Manufacturer Series PNEUFIT 10 | ||
Inlet Port G 1/4 Male | ||
Number of Inlet Ports 1 | ||
Outlet Port Push In 8 mm | ||
Number of Outlet Ports 1 | ||
Thread Material Nickel Plated Brass | ||
Chemical Resistant No | ||
Body Material Nickel Plated Brass | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Angle Straight | ||
Maximum Operating Pressure 18 bar | ||
- COO (Country of Origin):
- IT
IMI Norgren Pneumatic Fitting, Silicone-Free O-Ring, Single Inlet Port - PNEUFIT 10 Series - 102250828
Want to speed through building a compressed air system? Reach for this pneumatic fitting from IMI Norgren. You can use it to connect an 8mm tube to a G1/4 threaded connector, so it unites pipework with your devices. As it can handle a maximum operating pressure of 18 bar, the unit's cut out for heavy-duty industrial applications. The nickel-plated brass body is hard-wearing and corrosion-resistant, so you can trust it to go the distance in harsh and damp settings.
Features & Benefits
• Single inlet and single outlet configuration for straightforward connections
• Wide operating temperature range between -20°C and +80°C
• Silicone-free O-ring keeps contaminants out to ensure smooth system flow
• Internal hexagon design for simple adjustments with an Allen key
• Wide operating temperature range between -20°C and +80°C
• Silicone-free O-ring keeps contaminants out to ensure smooth system flow
• Internal hexagon design for simple adjustments with an Allen key
Applications
• Industrial automation equipment
• Automotive workshops
• Plant machinery
• Automotive workshops
• Plant machinery
How do I install this pneumatic fitting into my system?
All you need to do is take a length of tube with a straight-cut and deburred end, and push it into the fitting. Positive anchorage immediately secures the pipe in place. The threaded end of the fitting is male-gendered, so you can just screw it into a corresponding female-threaded socket.
