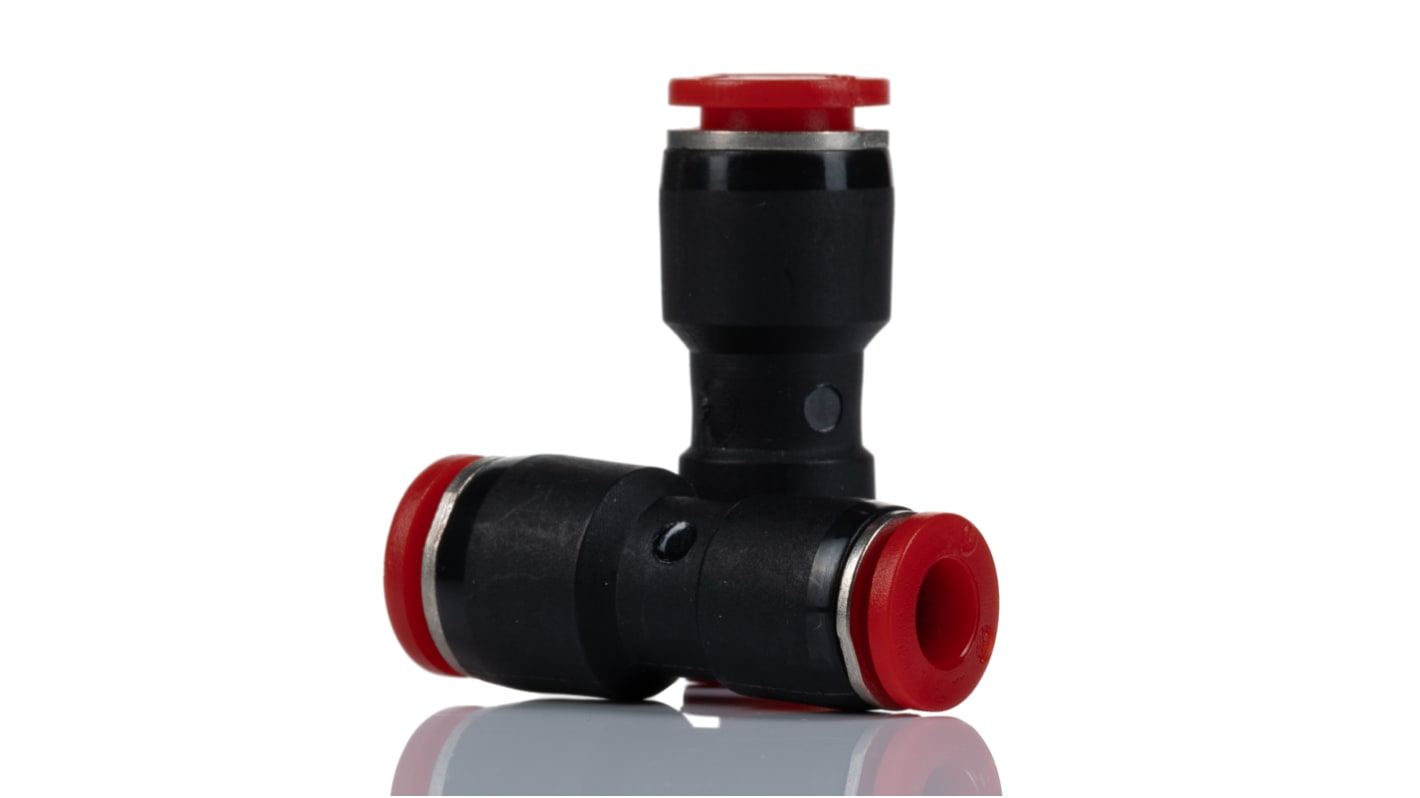

Norgren Pneufit C Series Push-in Fitting, Push In 8 mm to Push In 6 mm, Tube-to-Tube Connection Style, C00200806
- RS Stock No.:
- 218-0214
- Mfr. Part No.:
- C00200806
- Brand:
- Norgren
Bulk discount available
Subtotal (1 bag of 10 units)*
£34.10
(exc. VAT)
£40.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £34.10 | £3.41 |
5 - 9 | £33.48 | £3.348 |
10 + | £32.79 | £3.279 |
*price indicative
- RS Stock No.:
- 218-0214
- Mfr. Part No.:
- C00200806
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Connector A | Push In 8 mm | |
Connector B | Push In 6 mm | |
Pneumatic Fitting Type | Push-in Fitting | |
Connection Style | Tube-to-Tube | |
Manufacturer Series | Pneufit C | |
Inlet Port | Push In 8 mm | |
Number of Inlet Ports | 1 | |
Model Number p | C00200806 | |
Outlet Port | Push In 6 mm | |
Number of Outlet Ports | 1 | |
Maximum Operating Temperature | +60°C | |
Finish | Nickel Plated | |
Minimum Operating Temperature | 0°C | |
Body Material | PBT | |
Angle | Straight | |
Maximum Operating Pressure | 10 bar | |
Mounting Type | Inline | |
Select all | ||
---|---|---|
Brand Norgren | ||
Connector A Push In 8 mm | ||
Connector B Push In 6 mm | ||
Pneumatic Fitting Type Push-in Fitting | ||
Connection Style Tube-to-Tube | ||
Manufacturer Series Pneufit C | ||
Inlet Port Push In 8 mm | ||
Number of Inlet Ports 1 | ||
Model Number p C00200806 | ||
Outlet Port Push In 6 mm | ||
Number of Outlet Ports 1 | ||
Maximum Operating Temperature +60°C | ||
Finish Nickel Plated | ||
Minimum Operating Temperature 0°C | ||
Body Material PBT | ||
Angle Straight | ||
Maximum Operating Pressure 10 bar | ||
Mounting Type Inline | ||
RoHS Status: Exempt
- COO (Country of Origin):
- KR
IMI Norgren Pneumatic Fitting, Tube-to-Tube Type, 37.5mm Length - Pneufit C Series - C00200806
Keen to bridge a gap in your system's tubing? Smooth over size differences with this IMI Norgren pneumatic fitting. It has push-in fittings to take one 8mm and one 6mm hose. You can make easy connections without special tools by quickly sliding your pipe unit into place. There's no need to worry about vibrations pulling the plug on your workflow thanks to the component's built-in steel grab ring. By sealing up connections with its NBR O-ring, this connector keeps your system's pressure steady.
Features & Benefits
• Works with pressures between -0.9 and 10 bar, so it's a safe bet for medium-duty pneumatic processes
• Robust PBT housing shrugs off impacts
• Operating temperature range between 0°C and +60°C for reliable performance in challenging settings
• Supplied in a bag of ten for handy stocking
• Robust PBT housing shrugs off impacts
• Operating temperature range between 0°C and +60°C for reliable performance in challenging settings
• Supplied in a bag of ten for handy stocking
Applications
• Manufacturing industry
• Packing plants
• Process control
• Packing plants
• Process control
How do I disconnect my tubing from this pneumatic fitting?
You can release your hose by pushing back the unit's red port collar and pulling out your tubing. This simple system makes it easy to remove and swap appliances.
