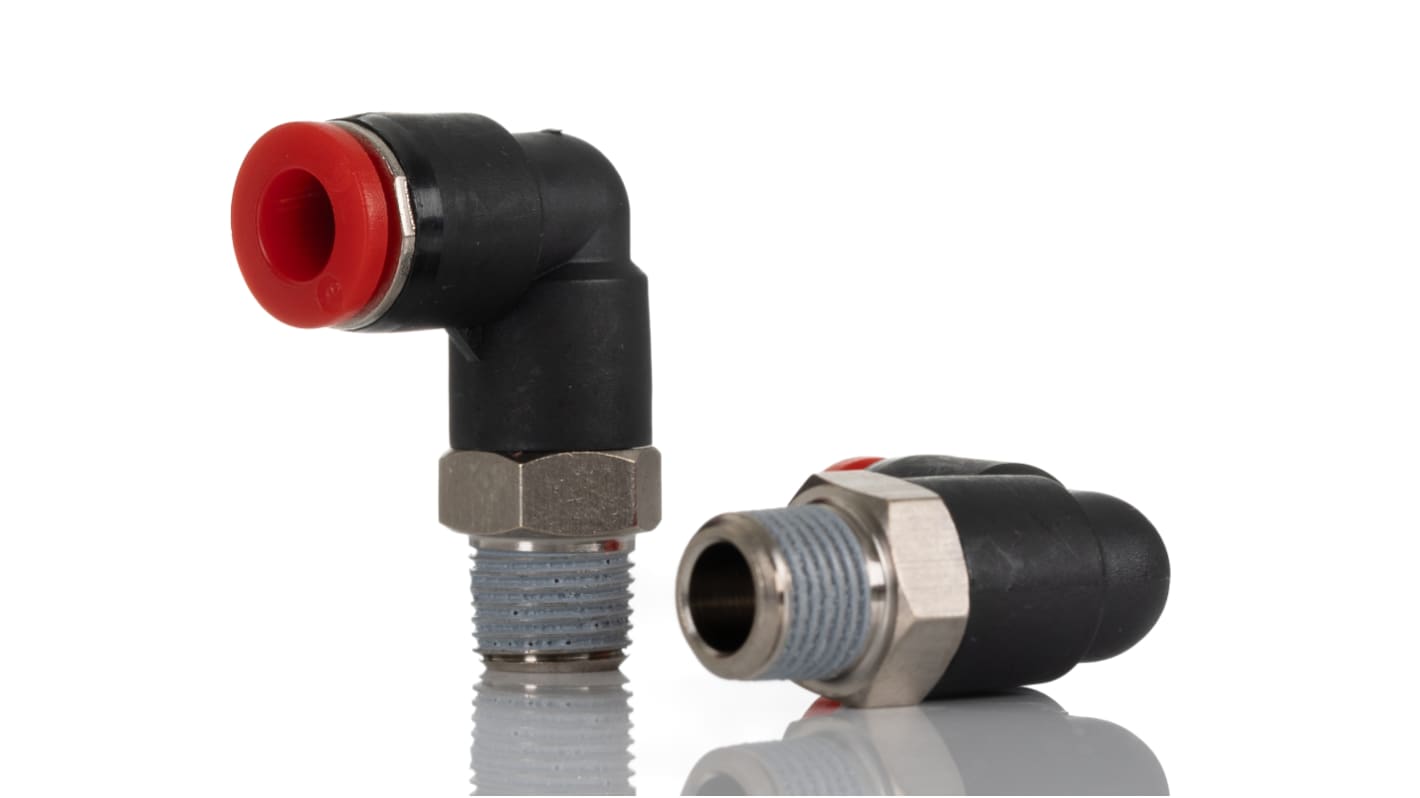

Norgren Elbow Threaded-toTube Adaptor, R 1/8 to Push In 6 mm
- RS Stock No.:
- 212-9193
- Mfr. Part No.:
- C01470618
- Brand:
- Norgren
Bulk discount available
Subtotal (1 bag of 10 units)*
£31.30
(exc. VAT)
£37.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £31.30 | £3.13 |
5 - 9 | £30.05 | £3.005 |
10 + | £28.82 | £2.882 |
*price indicative
- RS Stock No.:
- 212-9193
- Mfr. Part No.:
- C01470618
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Connector A | R 1/8 | |
Connector B | Push In 6 mm | |
Pneumatic Fitting Type | Elbow Threaded-toTube Adaptor | |
Threaded Connection | R 1/8 Male | |
Inlet Port | R 1/8 Male | |
Number of Inlet Ports | 1 | |
Outlet Port | Push In 6 mm | |
Number of Outlet Ports | 1 | |
Finish | Nickel Plated Brass | |
Swivel Connection | No | |
Maximum Operating Pressure | 10 bar | |
Mounting Type | Inline | |
Minimum Operating Temperature | 0°C | |
Body Material | Plastic | |
Angle | 90° | |
Maximum Operating Temperature | +60°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Connector A R 1/8 | ||
Connector B Push In 6 mm | ||
Pneumatic Fitting Type Elbow Threaded-toTube Adaptor | ||
Threaded Connection R 1/8 Male | ||
Inlet Port R 1/8 Male | ||
Number of Inlet Ports 1 | ||
Outlet Port Push In 6 mm | ||
Number of Outlet Ports 1 | ||
Finish Nickel Plated Brass | ||
Swivel Connection No | ||
Maximum Operating Pressure 10 bar | ||
Mounting Type Inline | ||
Minimum Operating Temperature 0°C | ||
Body Material Plastic | ||
Angle 90° | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- KR
IMI Norgren Pneumatic Fitting, 90° Swivel Elbow Adapter Type, 0.9 to 10 Bar Operating Pressure Range - Pneufit C Series - C01470618
Looking for a connector that goes with the flow? Try this pneumatic fitting from IMI Norgren to link tubes and components in an airtight network. For efficiency, you can fit and turn the 90° swivel adapter to suit your setup. With its R1/8 threaded and 6mm push-in ports, installation is convenient and tool-free. The nickel-plated brass parts handle compression while resisting corrosion and chemical damage, giving you a long-lasting coupling. Plus, the U-shaped NBR seals and O-rings hold their ground under pressure to keep the air in.
Features & Benefits
• Releasable grab ring for a secure grip on pneumatic tubes and simple disconnection
• Broad operating temperature range between -20°C and +60°C for use in challenging settings
• Broad operating temperature range between -20°C and +60°C for use in challenging settings
Applications
• Automatic doors
• Industrial assembly lines
• Medical equipment
• Mechanical clamps
• Industrial assembly lines
• Medical equipment
• Mechanical clamps
Why should I choose a swivel pneumatic fitting for my network?
A unit of this kind enables your tubes and components to rotate. This cuts out twisting and strenuous bending that could cause damage.
How do I choose the right pneumatic fitting?
Ensure the fitting's pressure range is compatible with your network. This versatile swivel adapter has an operating pressure range between 0.9 and 10 bar.
