Norgren PNEUFIT Series Straight Fitting, Push In 8 mm to R 1/8, Threaded-to-Tube Connection Style
- RS Stock No.:
- 212-9178
- Mfr. Part No.:
- C01250818
- Brand:
- Norgren
Bulk discount available
Subtotal (1 bag of 10 units)*
£24.60
(exc. VAT)
£29.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £24.60 | £2.46 |
| 5 - 9 | £23.60 | £2.36 |
| 10 + | £22.66 | £2.266 |
*price indicative
- RS Stock No.:
- 212-9178
- Mfr. Part No.:
- C01250818
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Connector A | Push In 8 mm | |
| Connector B | R 1/8 | |
| Pneumatic Fitting Type | Straight Fitting | |
| Connection Style | Threaded-to-Tube | |
| Threaded Connection | R 1/8 Male | |
| Manufacturer Series | PNEUFIT | |
| Maximum Operating Temperature | +60°C | |
| Body Material | PBT | |
| Chemical Resistant | No | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Pressure | 10 bar | |
| Angle | Straight | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Connector A Push In 8 mm | ||
Connector B R 1/8 | ||
Pneumatic Fitting Type Straight Fitting | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection R 1/8 Male | ||
Manufacturer Series PNEUFIT | ||
Maximum Operating Temperature +60°C | ||
Body Material PBT | ||
Chemical Resistant No | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Pressure 10 bar | ||
Angle Straight | ||
RoHS Status: Exempt
- COO (Country of Origin):
- KR

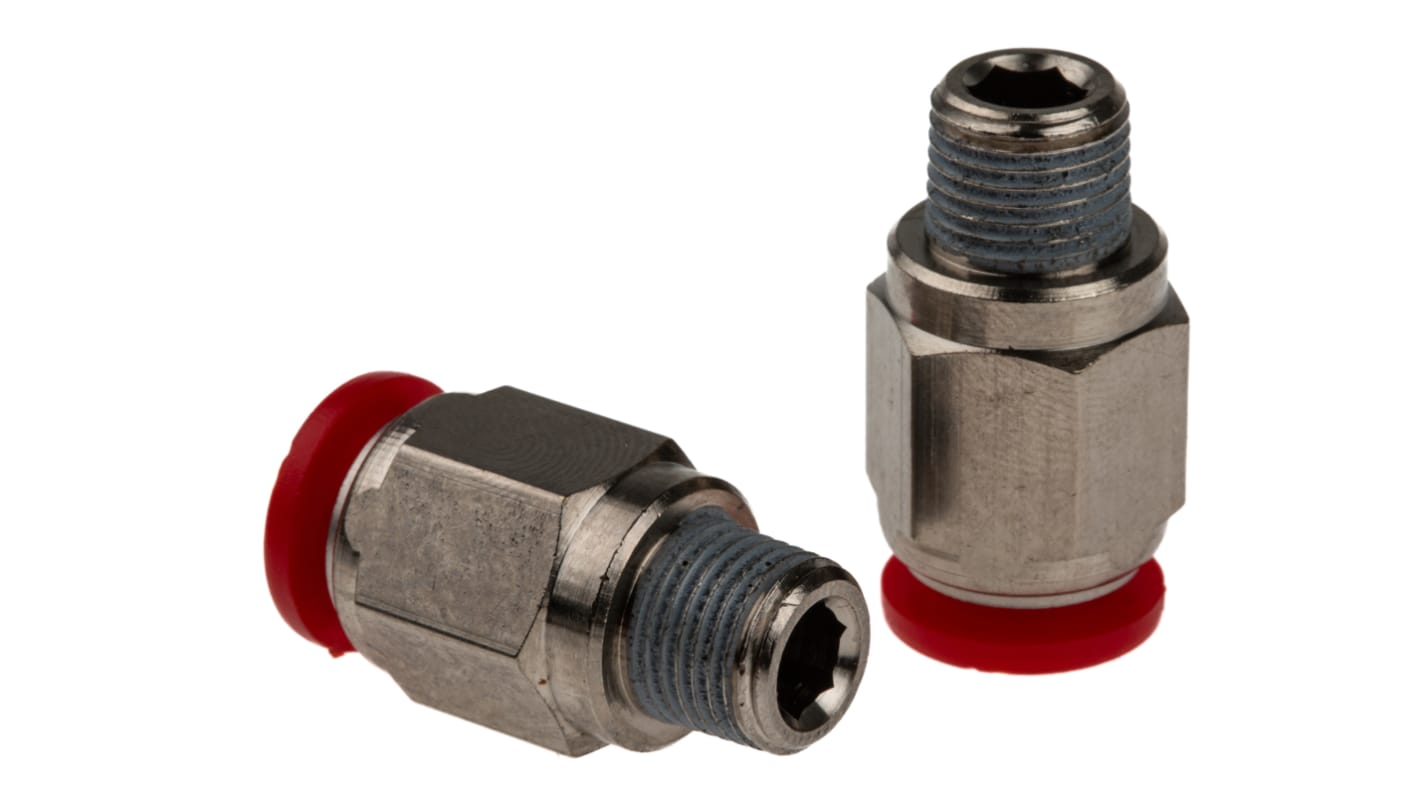

IMI Norgren Threaded-To-Tube Pneumatic Fitting, Push-In 8mm to R1/8 - Pneufit C Series - C01250818
Quickly connect an air pipe to your pneumatic equipment with this threaded-to-tube fitting from IMI Norgren. A push-in connection on one end makes hooking up a tube easy and saves on assembly time. Its grab ring creates a secure connection, even if you're using softer pneumatic hosing. Disconnection is simple, too, as the unit has a release ring that allows for tool-free disassembly. To make it a versatile choice, this connector is compatible with both nylon and polyurethane tubing.
Features & Benefits
• Nickel-plated brass body that resists corrosion so is compatible with humid operating environments
• Stem seal provides a leak-free swivel connection, even when turned in a full circle
• Maximum operating pressure of 10 bar so meets the demands of high-pressure systems
• Stem seal provides a leak-free swivel connection, even when turned in a full circle
• Maximum operating pressure of 10 bar so meets the demands of high-pressure systems
Applications
• Industrial air tools
• Agricultural machinery
• Robotics
• Paper and pulp mills
• Agricultural machinery
• Robotics
• Paper and pulp mills
What's the operating temperature range of this fitting?
This fitting has a wide operating temperature range of -20°C to +60°C so you can use it safely in demanding conditions.
Do I need to prepare the tubing before attaching the fitting?
Before attaching this fitting, you should ensure the end of your tube is cut square and is free of burrs.
