Norgren Straight Threaded Adaptor, Push In 6 mm to R 1/4, Threaded-to-Tube Connection Style
- RS Stock No.:
- 212-9174
- Mfr. Part No.:
- C01250628
- Brand:
- Norgren
Bulk discount available
Subtotal (1 bag of 10 units)*
£21.80
(exc. VAT)
£26.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 94 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £21.80 | £2.18 |
| 5 - 9 | £20.93 | £2.093 |
| 10 + | £20.07 | £2.007 |
*price indicative
- RS Stock No.:
- 212-9174
- Mfr. Part No.:
- C01250628
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Connector A | Push In 6 mm | |
| Connector B | R 1/4 | |
| Pneumatic Fitting Type | Straight Threaded Adaptor | |
| Connection Style | Threaded-to-Tube | |
| Threaded Connection | R 1/4 Male | |
| Chemical Resistant | No | |
| Angle | Straight | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Plastic | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Connector A Push In 6 mm | ||
Connector B R 1/4 | ||
Pneumatic Fitting Type Straight Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection R 1/4 Male | ||
Chemical Resistant No | ||
Angle Straight | ||
Maximum Operating Pressure 10 bar | ||
Body Material Plastic | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- KR

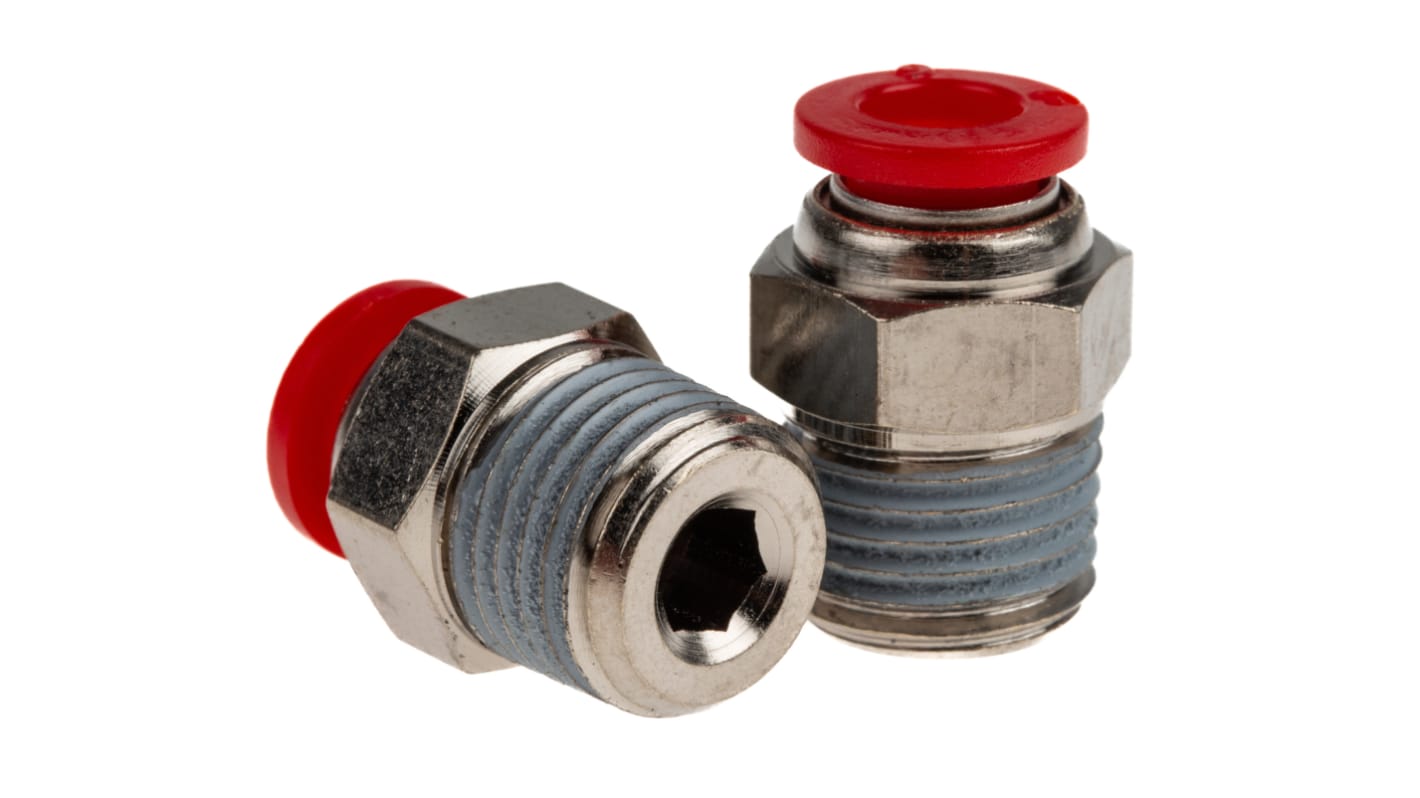

IMI Norgren Threaded-To-Tube Push-In Fitting, 6mm to R1/4 - Pneufit C Series - C01250628
For a quick and simple pneumatic connection, choose this straight push-in fitting from IMI Norgren. The component makes a durable and rapid seal to keep compressed air flowing optimally for peak pressure performance. It's made from nickel-plated brass that's resistant to contamination and corrosion, so it's suitable to use in harsh working environments. A specially designed stainless steel grab ring will retain even softer pneumatic hose without causing damage to it.
Features & Benefits
• Wide operating pressure of -0.9 to 10 bar so suitable to use in high-pressure circuits
• Compatible with both nylon and polyurethane tubing for versatility
• U-packing seal that increases in strength as pressure increases for a reliable leak-free connection
• Broad operating temperature range of 0°C to +60°C for compatibility with a wide range of environmental conditions
• Easy to insert without the use of tools
• Compatible with both nylon and polyurethane tubing for versatility
• U-packing seal that increases in strength as pressure increases for a reliable leak-free connection
• Broad operating temperature range of 0°C to +60°C for compatibility with a wide range of environmental conditions
• Easy to insert without the use of tools
Applications
• Air tools
• Robotic equipment
• Food and beverage industry
• Robotic equipment
• Food and beverage industry
What size is this fitting?
This compact fitting is 21mm in length and 16mm in diameter. It's designed for use in both small and large pneumatic circuits.
