Festo QSM Series, 133004, Male, M5
- RS Stock No.:
- 202-3356
- Mfr. Part No.:
- QSM-M5-4-I-R
- Brand:
- Festo
Subtotal (1 bag of 10 units)*
£25.50
(exc. VAT)
£30.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 14 unit(s) ready to ship
- Plus 57 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £25.50 | £2.55 |
*price indicative
- RS Stock No.:
- 202-3356
- Mfr. Part No.:
- QSM-M5-4-I-R
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Fitting | |
| Connection Thread Size | M5 | |
| Connection Gender | Male | |
| Series | QSM | |
| Tube Connection Size | 4mm | |
| Tube Connection Type | Push-in | |
| Material | Polyoxymethylene (Release Ring), Tube Retaining Claw, High Alloy Steel, Brass Nickel Plated (Housing), Nitrile Butadiene Rubber | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS, ISO8573-1:2010 (7:-:-) | |
| Finish | Nickel | |
| Chemical Resistant | No | |
| Connection Type | M5 Male | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Fitting | ||
Connection Thread Size M5 | ||
Connection Gender Male | ||
Series QSM | ||
Tube Connection Size 4mm | ||
Tube Connection Type Push-in | ||
Material Polyoxymethylene (Release Ring), Tube Retaining Claw, High Alloy Steel, Brass Nickel Plated (Housing), Nitrile Butadiene Rubber | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS, ISO8573-1:2010 (7:-:-) | ||
Finish Nickel | ||
Chemical Resistant No | ||
Connection Type M5 Male | ||
- COO (Country of Origin):
- JP

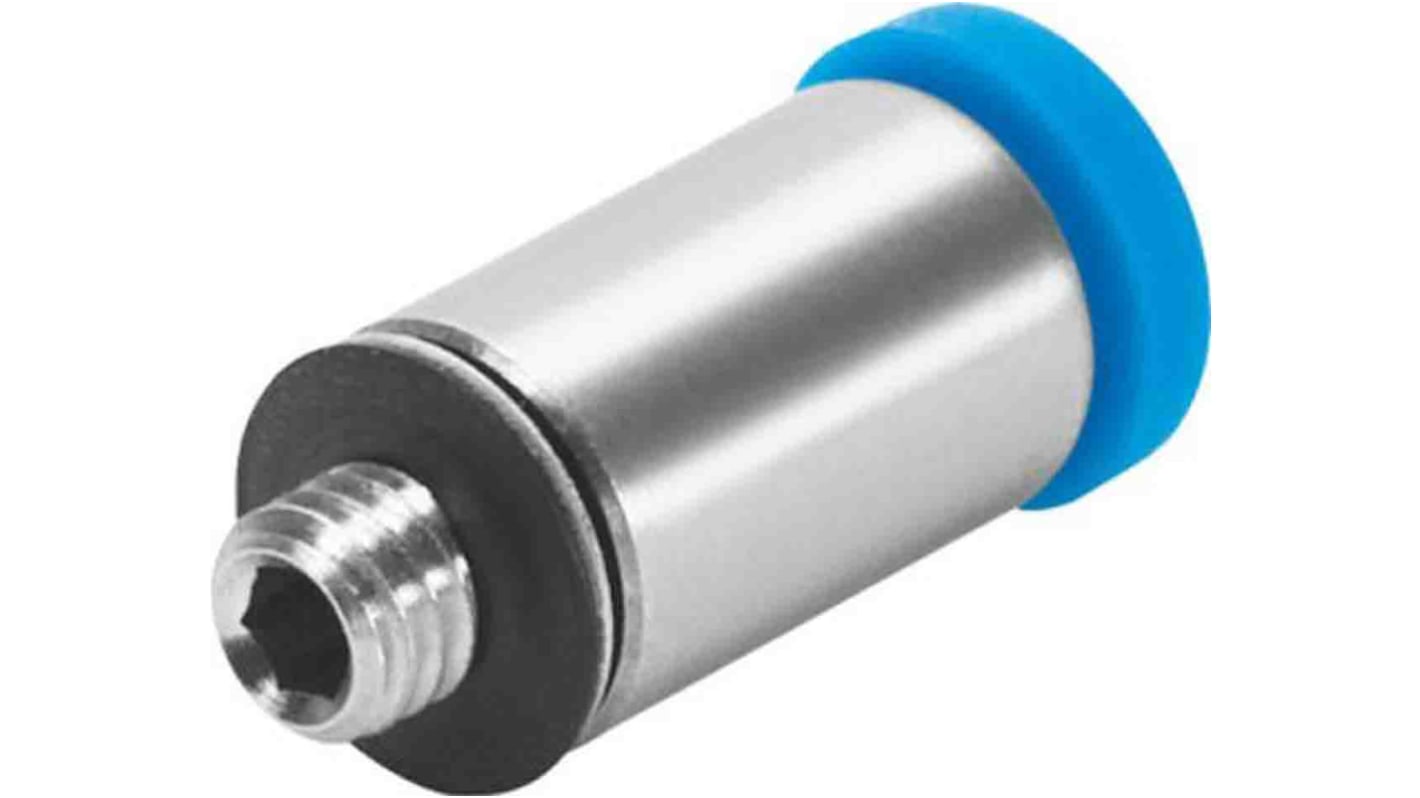

Festo QSM Series Pneumatic Fitting, M5 Male Connector, Push-In 4mm Connector - QSM-M5-4-I-R, Numeric Part Number:133004
This pneumatic fitting is a straight threaded adaptor designed for efficient air conveyance in industrial environments. It features a connection style that allows for a seamless threaded-to-tube transition, making it suitable for M5 male connectors and 4mm push-in tubing. Constructed from durable brass with a nickel-plated finish, it is engineered to withstand varying operating conditions.
Features & Benefits
• Compact mini design enhances installation flexibility
• Push-pull principle allows for quick and easy assembly
• Operating pressure range up to 14 bar ensures high performance
• Temperature handling from -10°C to +80°C accommodates diverse applications
• Corrosion-resistant brass material improves longevity
• Compatible with lubricated operation for enhanced functionality
Applications
• Utilised in automation systems for compressed air management
• Employed in pneumatic circuits requiring M5 male connections
• Suitable for equipment in mechanical and electrical industries
• Ideal for involving small diameter tubing connections
What is the maximum operating pressure of this fitting?
The fitting can handle a maximum operating pressure of 14 bar, making it suitable for a variety of pneumatic systems.
Is lubricated operation possible with this pneumatic fitting?
Yes, it supports lubricated operation, which can enhance performance and reduce wear over time when using the appropriate operating medium.
What materials are used in the construction of this fitting?
It is constructed from brass with a nickel-plated finish, which contributes to its durability and corrosion resistance.
Can this fitting be used in low-temperature environments?
Yes, it operates effectively in temperatures as low as -10°C, making it versatile for different operating conditions.
What type of sealing mechanism does this fitting utilise?
This fitting is designed with a sealing ring on the screwed plug, which ensures a reliable and leak-free connection.
