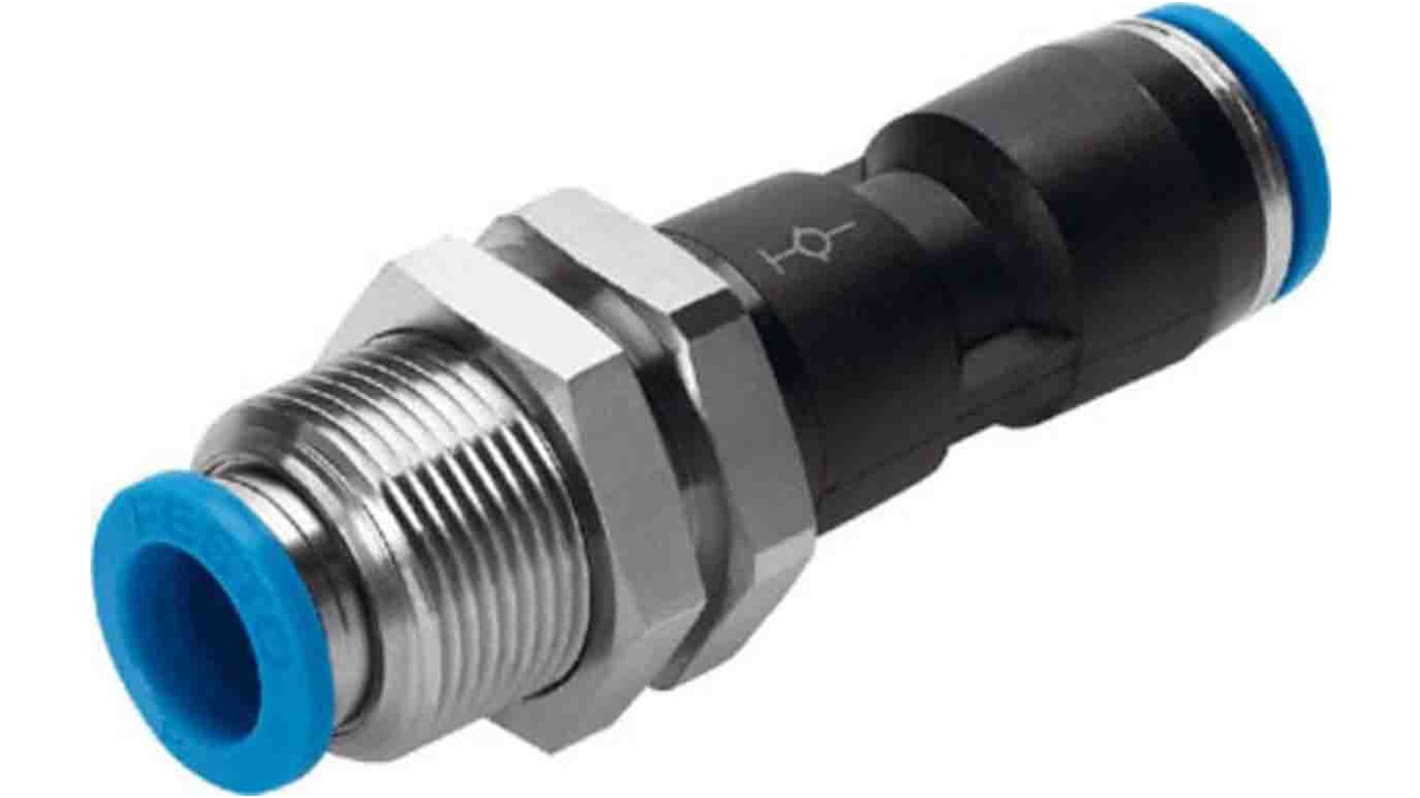

Festo QS Series Bulkhead Tube-to-Tube Adaptor, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, 130637
- RS Stock No.:
- 202-3199
- Mfr. Part No.:
- QSSK-4
- Brand:
- Festo
Subtotal (1 unit)*
£11.04
(exc. VAT)
£13.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.04 |
*price indicative
- RS Stock No.:
- 202-3199
- Mfr. Part No.:
- QSSK-4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | Push In 4 mm | |
Connector B | Push In 4 mm | |
Pneumatic Fitting Type | Bulkhead Tube-to-Tube Adaptor | |
Connection Style | Tube-to-Tube | |
Manufacturer Series | QS | |
Inlet Port | Push In 4 mm | |
Model Number p | 130637 | |
Number of Inlet Ports | 1 | |
Outlet Port | Push In 4 mm | |
Number of Outlet Ports | 1 | |
Mounting Type | Inline | |
Mounting Hole Diameter | 4mm | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -10°C | |
Body Material | PBT | |
Maximum Operating Pressure | 14 bar | |
Angle | Straight | |
Standards Met | ISO8573-1:2010, RoHS Compliant | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A Push In 4 mm | ||
Connector B Push In 4 mm | ||
Pneumatic Fitting Type Bulkhead Tube-to-Tube Adaptor | ||
Connection Style Tube-to-Tube | ||
Manufacturer Series QS | ||
Inlet Port Push In 4 mm | ||
Model Number p 130637 | ||
Number of Inlet Ports 1 | ||
Outlet Port Push In 4 mm | ||
Number of Outlet Ports 1 | ||
Mounting Type Inline | ||
Mounting Hole Diameter 4mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -10°C | ||
Body Material PBT | ||
Maximum Operating Pressure 14 bar | ||
Angle Straight | ||
Standards Met ISO8573-1:2010, RoHS Compliant | ||
- COO (Country of Origin):
- JP
Festo Pneumatic Fitting, PBT Material, 1.5mm Nominal Size - QSSK-4
Choose this tube-to-tube pneumatic fitting from Festo to securely connect hoses in your pneumatic system. For ease of assembly, both ends are fitted with 4mm push-in connectors. You can use this unit with compressed air or water, making it a versatile option. An operating pressure range between -0.95 and 6 bar means it's best suited to use in low-pressure environments. A robust NBR seal is on hand to prevent air leakage and maintain system pressure. To ensure smooth movement, this fitting can be lubricated.
Features & Benefits
• Flexible mounting position for convenient assembly
• PBT body is resistant to solvents and chemicals to withstand demanding conditions
• Compact nominal size of 1.5mm to fit in small spaces
• Broad operating temperature range between -10°C and +80°C to withstand harsh settings
• PBT body is resistant to solvents and chemicals to withstand demanding conditions
• Compact nominal size of 1.5mm to fit in small spaces
• Broad operating temperature range between -10°C and +80°C to withstand harsh settings
Applications
• Medical devices
• Hydraulic equipment
• Oil and gas industry
• Chemical plants
• Hydraulic equipment
• Oil and gas industry
• Chemical plants
How do I remove this pneumatic fitting?
This fitting has a built-in release ring that lets you quickly disconnect it without the need for specialist tools. For durability, this ring is made from strong POM that's resistant to wear. The blue colour helps you quickly identify it in a busy system.
