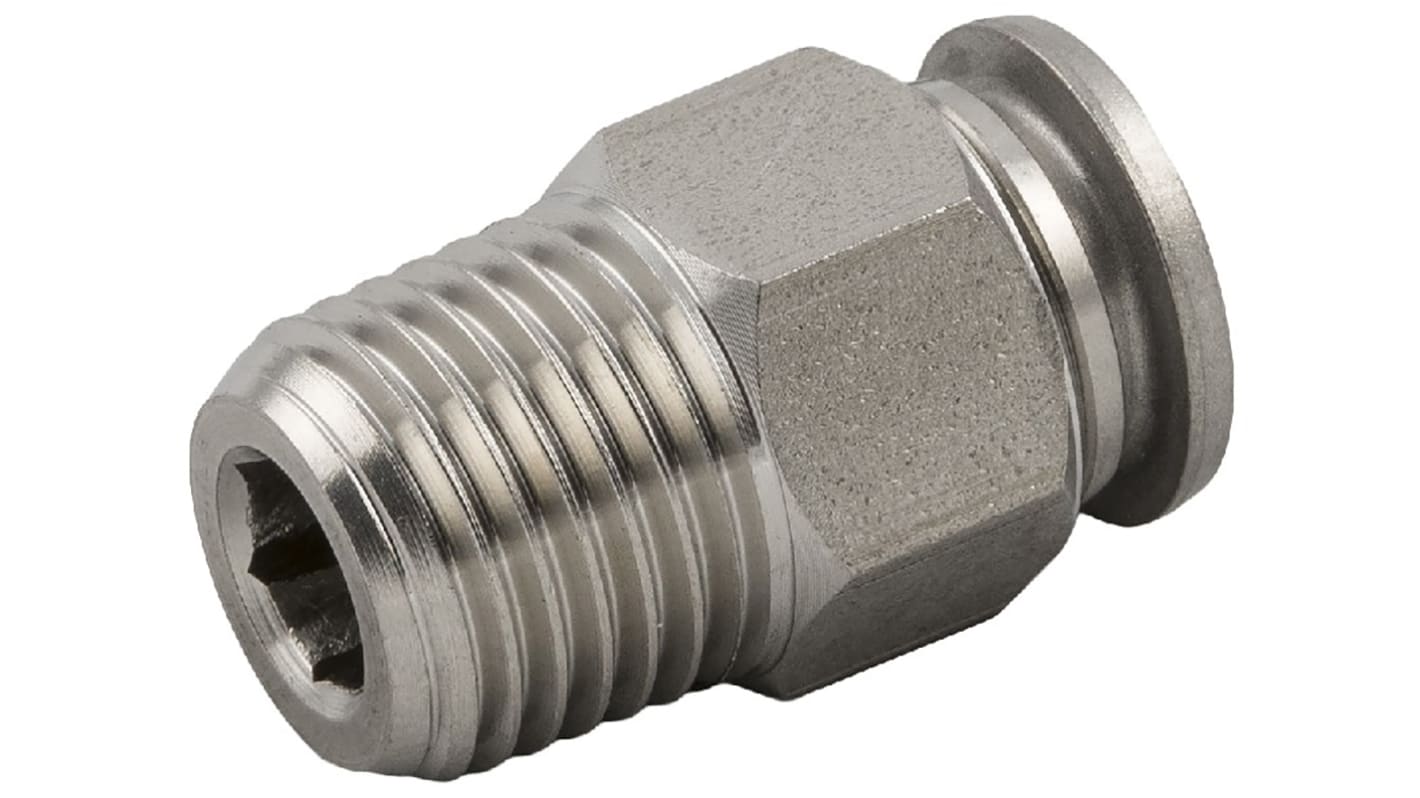

RS PRO Push-in Fitting, R 1/8 Male to Push In 8 mm, Threaded-to-Tube Connection Style

RS Stock No.:: 176-2154
Brand:: RS PRO

RS PRO Push-in Fitting, R 1/8 Male to Push In 8 mm, Threaded-to-Tube Connection Style

60 In stock - FREE next working day delivery available

Added

Price Each (In a Pack of 10)

£17.312

(exc. VAT)

£20.774

(inc. VAT)

Units	Per unit	Per Pack*
10 +	£17.312	£173.12
*price indicative

RS Stock No.:: 176-2154
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

Fully made of stainless steel AISI 316L. It has been developed to drive corrosive fluids or to be used in aggressive environments. It is ideal for direct contact with food fluids. This line can be used also in salty environment and on machines that need frequent washing with aggressive detergents.

Main advantages:
Quick connection and disconnection
Full Flow and Vacuum resistant tank to special shaped seals
3 threads available, BSPP, BSPT (universal short)& Metric
Full stainless steel AISI 316L
Food&Beverage compatible
Silicon Free
Applications:
Automation with Washing
Farming, Mining
Chemical, Petrolchemical, Pharmaceutical
Medical, Life&Sciences
Vacuum

Specifications

Attribute	Value
Connector A	R 1/8 Male
Connector B	Push In 8 mm
Pneumatic Fitting Type	Push-in Fitting
Connection Style	Threaded-to-Tube
Maximum Operating Temperature	+200°C
Mounting Type	Inline
Minimum Operating Temperature	-15°C
Body Material	Stainless Steel
Chemical Resistant	Yes
Maximum Operating Pressure	20 bar
Food Grade	Yes
Standards Met	1907/2006 (REACH), ISO 14743:2004, NSF/ANSI 169, PED 2014/68/UE
