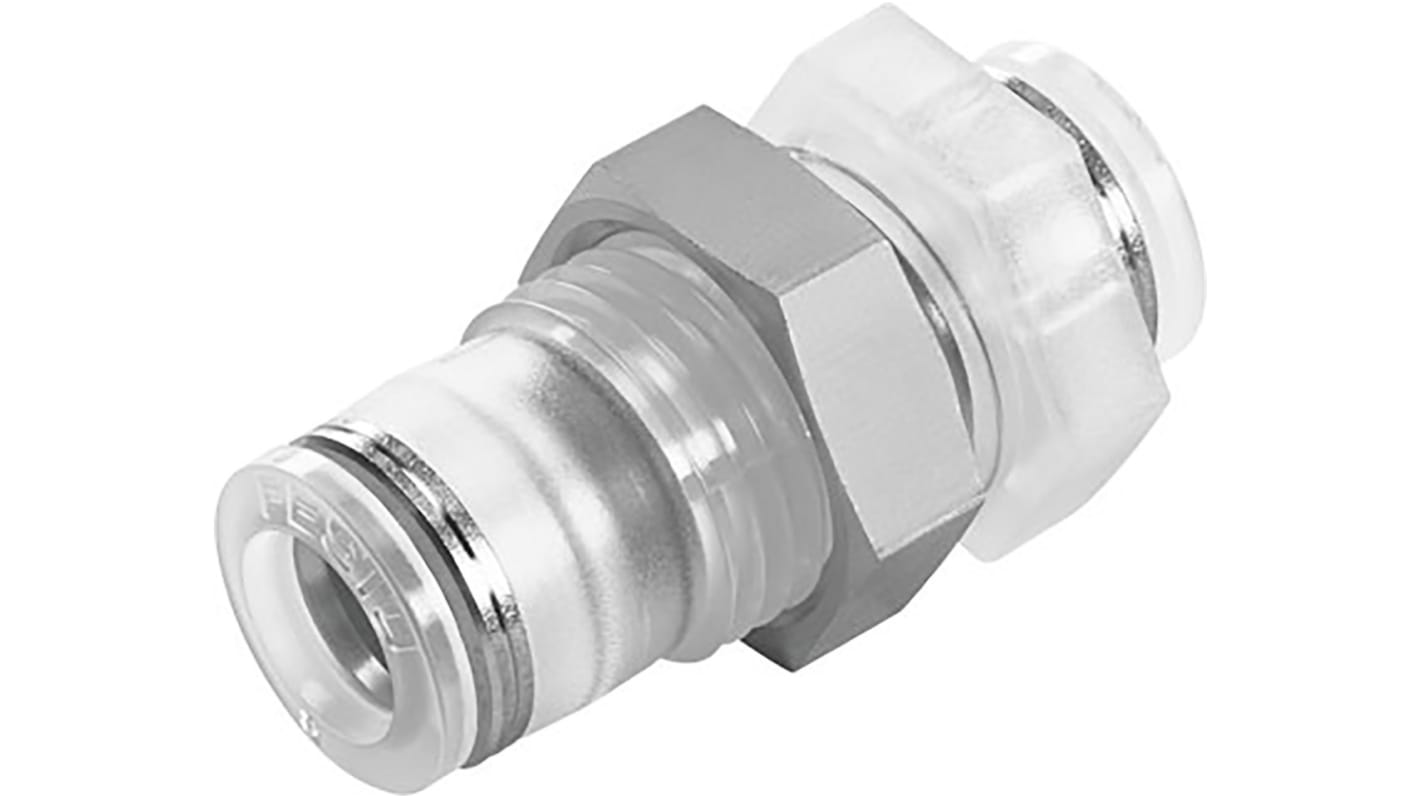

Festo Bulkhead Tube-to-Tube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, 133102
- RS Stock No.:
- 125-9851
- Mfr. Part No.:
- NPQP-H-Q8-E-FD
- Brand:
- Festo
Subtotal (1 unit)*
£21.80
(exc. VAT)
£26.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 13 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.80 |
*price indicative
- RS Stock No.:
- 125-9851
- Mfr. Part No.:
- NPQP-H-Q8-E-FD
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Connector A | Push In 8 mm | |
| Connector B | Push In 8 mm | |
| Pneumatic Fitting Type | Bulkhead Tube-to-Tube Adaptor | |
| Connection Style | Tube-to-Tube | |
| Model Number p | 133102 | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | +60°C | |
| Food Grade | Yes | |
| Minimum Operating Temperature | -20°C | |
| Body Material | Polypropylene | |
| Chemical Resistant | Yes | |
| Standards Met | ANSI/NSF 51, FDA 21 CFR 177.1520, FDA 21 CFR 177.2600, NSF H1 Reg. No. 123949 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Connector A Push In 8 mm | ||
Connector B Push In 8 mm | ||
Pneumatic Fitting Type Bulkhead Tube-to-Tube Adaptor | ||
Connection Style Tube-to-Tube | ||
Model Number p 133102 | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +60°C | ||
Food Grade Yes | ||
Minimum Operating Temperature -20°C | ||
Body Material Polypropylene | ||
Chemical Resistant Yes | ||
Standards Met ANSI/NSF 51, FDA 21 CFR 177.1520, FDA 21 CFR 177.2600, NSF H1 Reg. No. 123949 | ||
- COO (Country of Origin):
- JP
NPQP Push-in Bulkhead Connectors
Festo NPQP range of push in bulkhead connectors that are designed to easily connect tubing and provide a reliable seal. Polypropylene fitting for use in applications with extreme media influences. For pneumatic applications with a temperature range up to 60°C and a pressure range up to 10 bar. Featuring high corrosion resistance (CRC3) and chemical resistance. The NPQP range is an alternative to stainless steel fittings for the food and beverage industry, biotechnology/pharmaceuticals, medical technology, clean rooms and process automation.
Features and Benefits
Quick and simple tube insertion
Polypropylene housing with stainless steel tubing retainer
Corrosion resistant
Resistant to chemicals
FDA compliant
Transparent for easy monitoring
