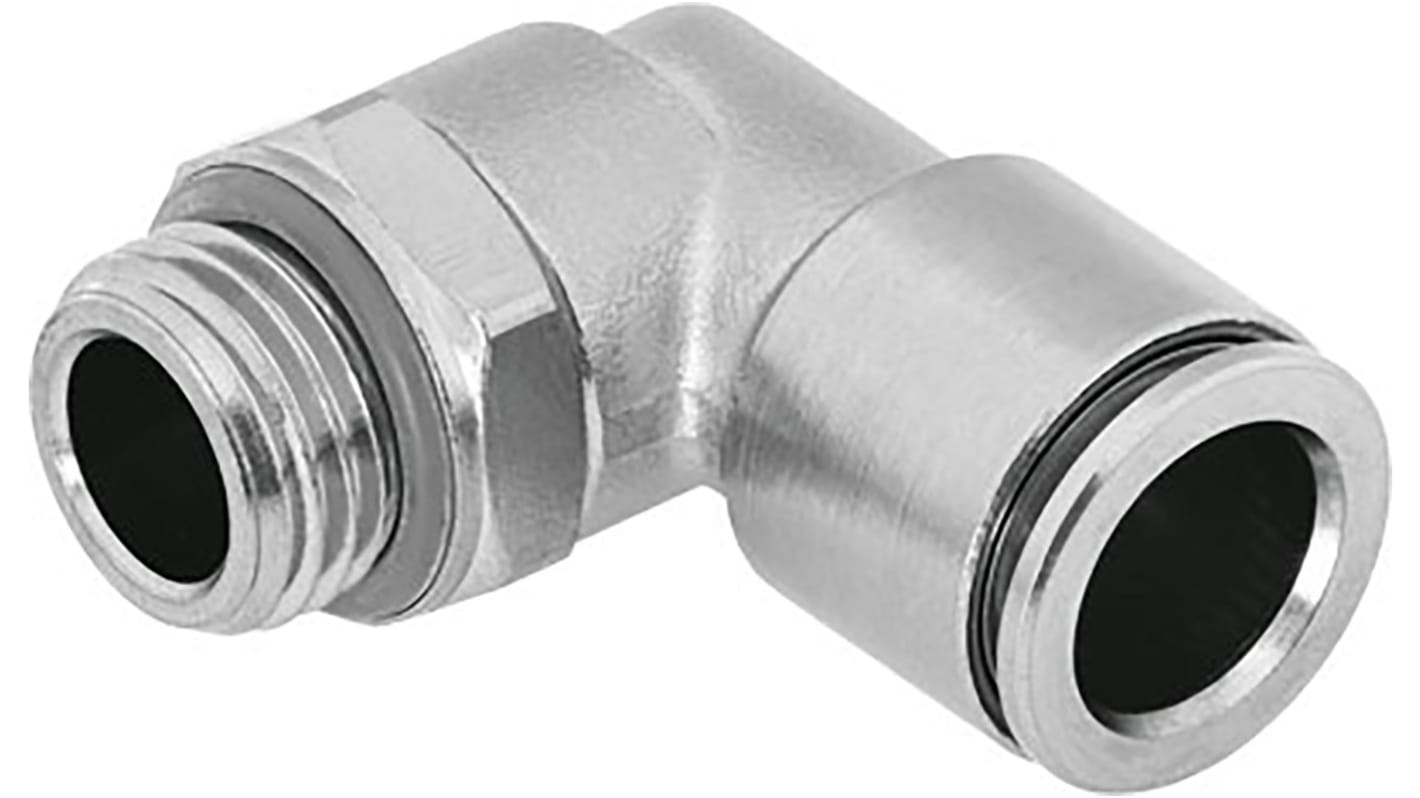

Festo NPQH Series Elbow Threaded Adaptor, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style, 578276
- RS Stock No.:
- 125-9782
- Mfr. Part No.:
- NPQH-L-M5-Q4-P10
- Brand:
- Festo
Subtotal (1 bag of 10 units)*
£40.46
(exc. VAT)
£48.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 15 unit(s) shipping from 27 October 2025
- Plus 10 unit(s) shipping from 27 October 2025
- Plus 999,999,984 unit(s) shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £40.46 | £4.046 |
*price indicative
- RS Stock No.:
- 125-9782
- Mfr. Part No.:
- NPQH-L-M5-Q4-P10
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Connector A | M5 Male | |
| Connector B | Push In 4 mm | |
| Pneumatic Fitting Type | Elbow Threaded Adaptor | |
| Connection Style | Threaded-to-Tube | |
| Threaded Connection | M5 Male | |
| Manufacturer Series | NPQH | |
| Number of Inlet Ports | 1 | |
| Model Number p | 578276 | |
| Thread Material | Brass | |
| Swivel Connection | Yes | |
| Chemical Resistant | Yes | |
| Body Material | Brass | |
| Minimum Operating Temperature | 0°C | |
| Food Grade | Yes | |
| Mounting Type | Inline | |
| Finish | Nickel Plated | |
| Maximum Operating Temperature | +150°C | |
| Angle | 90° | |
| Maximum Operating Pressure | 20 bar | |
| Standards Met | ANSI/NSF 51, FDA 21 CFR 177.1595, FDA 21 CFR 177.2600, NSF H1 Reg. No. 128787 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Connector A M5 Male | ||
Connector B Push In 4 mm | ||
Pneumatic Fitting Type Elbow Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection M5 Male | ||
Manufacturer Series NPQH | ||
Number of Inlet Ports 1 | ||
Model Number p 578276 | ||
Thread Material Brass | ||
Swivel Connection Yes | ||
Chemical Resistant Yes | ||
Body Material Brass | ||
Minimum Operating Temperature 0°C | ||
Food Grade Yes | ||
Mounting Type Inline | ||
Finish Nickel Plated | ||
Maximum Operating Temperature +150°C | ||
Angle 90° | ||
Maximum Operating Pressure 20 bar | ||
Standards Met ANSI/NSF 51, FDA 21 CFR 177.1595, FDA 21 CFR 177.2600, NSF H1 Reg. No. 128787 | ||
- COO (Country of Origin):
- IT
Festo Elbow Threaded Adaptor, M5 Male to Push-In 4 mm - NPQH Series - NPQH-L-M5-Q4-P10
When you're looking for a right-angle adaptor to connect pneumatic tube fittings, choose this Festo elbow threaded adaptor. It joins push-in and threaded fittings with a compact, 90-degree angle design, which lets you make changes to pressure direction where space is tight. The unit includes a swivel connection and inline mounting that, combined with a push-pull design principle, allows for quick and simple installation. The brass construction and non-corrosive nickel plating resists chemicals and cleaning agents, and the 2 mm tubing wall is able to withstand welding splatter.
• Maximum tightening torque of 1.5 Nm for secure fittings
• Versatile operating temperature range of 0°C to +150°C for multiple industrial applications
• Durable brass thread material
• Versatile operating temperature range of 0°C to +150°C for multiple industrial applications
• Durable brass thread material
Application Information
• Automotive production and repairs
• Industrial automation
• Food processing and production
• Industrial automation
• Food processing and production
What size of pneumatic fittings is this adaptor designed for?
This elbow threaded adaptor is used to connect M5 male fittings in port 1 and push-in 4 mm fittings in port 2.
Can this adaptor withstand high-pressure applications?
Yes, it's built for systems with pressures up to 20 bar and can be used in conjunction with a pressure booster.
