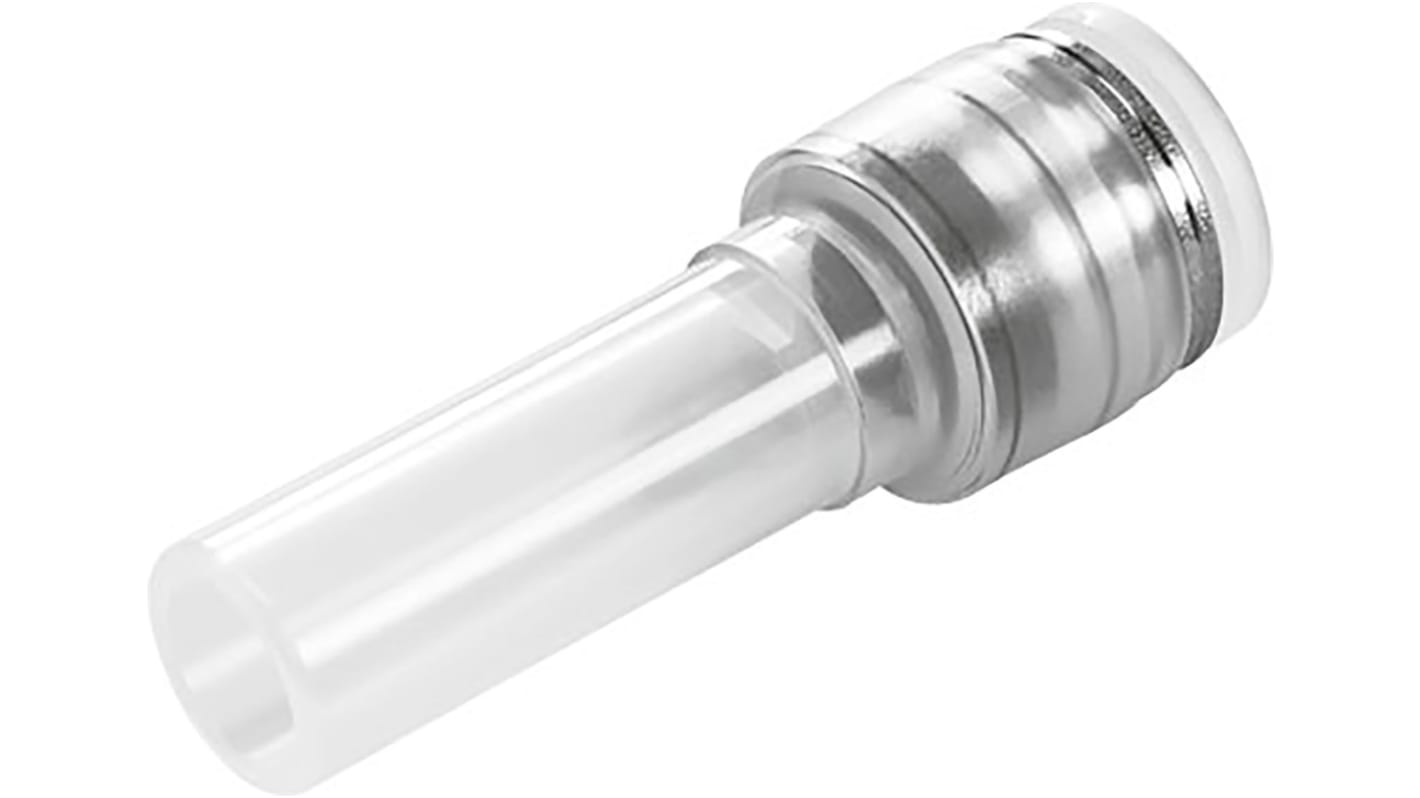

Festo NPQP Series Straight Tube-to-Tube Adaptor, Push In 8 mm to Push In 10 mm, Tube-to-Tube Connection Style, 133137
- RS Stock No.:
- 125-9756
- Mfr. Part No.:
- NPQP-D-Q8-S10-FD-P10
- Brand:
- Festo
Subtotal (1 bag of 10 units)*
£116.87
(exc. VAT)
£140.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £116.87 | £11.687 |
*price indicative
- RS Stock No.:
- 125-9756
- Mfr. Part No.:
- NPQP-D-Q8-S10-FD-P10
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Connector A | Push In 8 mm | |
| Connector B | Push In 10 mm | |
| Pneumatic Fitting Type | Straight Tube-to-Tube Adaptor | |
| Connection Style | Tube-to-Tube | |
| Manufacturer Series | NPQP | |
| Model Number p | 133137 | |
| Food Grade | Yes | |
| Maximum Operating Temperature | +60°C | |
| Maximum Operating Pressure | 10 bar | |
| Chemical Resistant | Yes | |
| Body Material | Polypropylene | |
| Minimum Operating Temperature | -20°C | |
| Standards Met | ANSI/NSF 51, FDA 21 CFR 177.1520, FDA 21 CFR 177.2600, NSF H1 Reg. No. 123949 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Connector A Push In 8 mm | ||
Connector B Push In 10 mm | ||
Pneumatic Fitting Type Straight Tube-to-Tube Adaptor | ||
Connection Style Tube-to-Tube | ||
Manufacturer Series NPQP | ||
Model Number p 133137 | ||
Food Grade Yes | ||
Maximum Operating Temperature +60°C | ||
Maximum Operating Pressure 10 bar | ||
Chemical Resistant Yes | ||
Body Material Polypropylene | ||
Minimum Operating Temperature -20°C | ||
Standards Met ANSI/NSF 51, FDA 21 CFR 177.1520, FDA 21 CFR 177.2600, NSF H1 Reg. No. 123949 | ||
- COO (Country of Origin):
- JP
NPQP Straight Push-in Connectors
Festo NPQP range of push in connectors that are designed to easily connect tubing and provide a reliable seal. Polypropylene fitting for use in applications with extreme media influences. For pneumatic applications with a temperature range up to 60°C and a pressure range up to 10 bar. Featuring high corrosion resistance (CRC3) and chemical resistance. The NPQP range is an alternative to stainless steel fittings for the food and beverage industry, biotechnology/pharmaceuticals, medical technology, clean rooms and process automation.
Features and Benefits
Quick and simple tube insertion
Polypropylene housing with stainless steel tubing retainer
Corrosion resistant
Resistant to chemicals
FDA compliant
Transparent for easy monitoring
