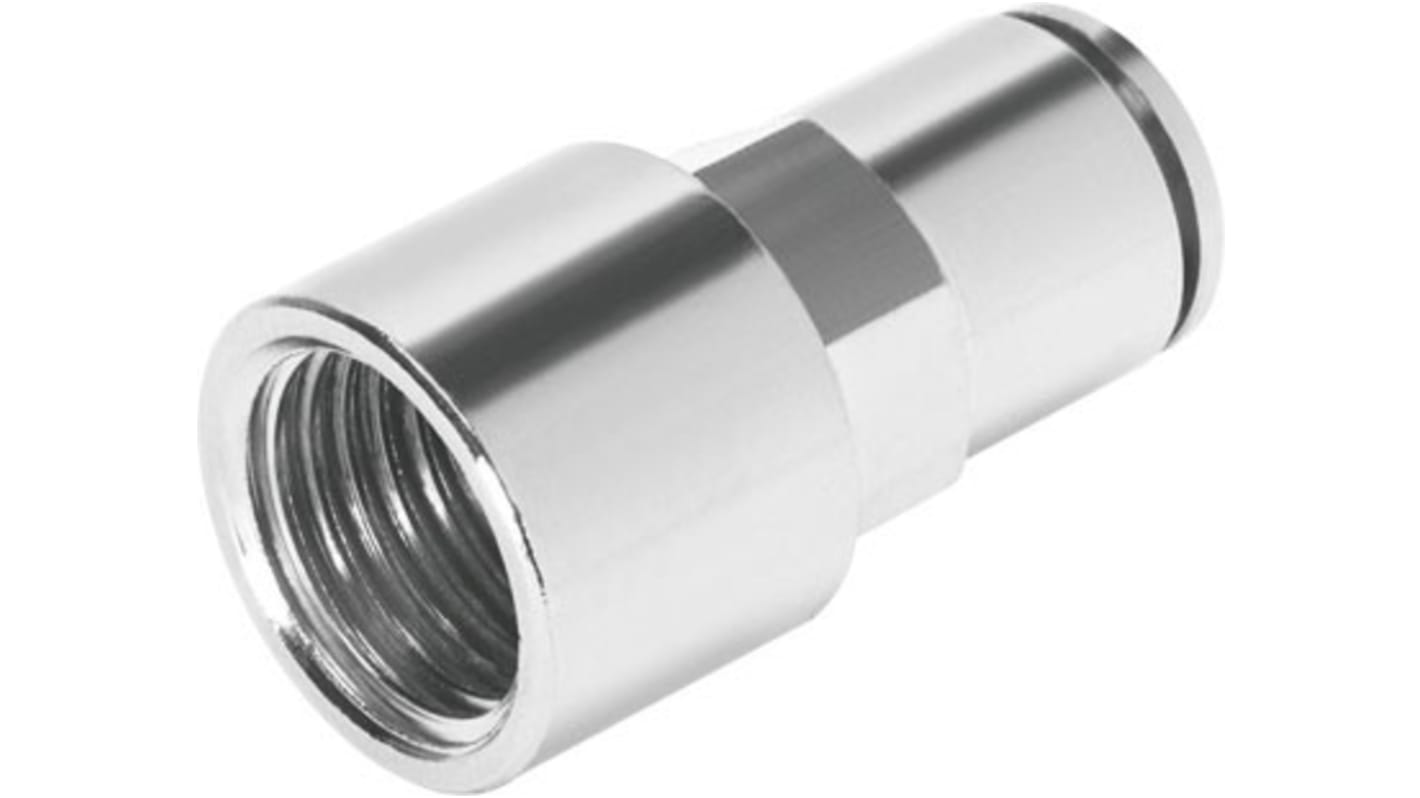

Festo NPQH Series Straight Threaded Adaptor, G 1/8 Female to Push In 6 mm, Threaded-to-Tube Connection Style, 578353

View all Pneumatic Fittings

Subtotal (1 bag of 10 units)*

£47.32

(exc. VAT)

£56.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£47.32£4.732

*price indicative

RS Stock No.:
125-9609
Mfr. Part No.:
NPQH-D-G18F-Q6-P10
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Connector A

G 1/8 Female

Connector B

Push In 6 mm

Pneumatic Fitting Type

Straight Threaded Adaptor

Connection Style

Threaded-to-Tube

Threaded Connection

G 1/8 Female

Manufacturer Series

NPQH

Inlet Port

G 1/8 Female

Number of Inlet Ports

1

Model Number p

578353

Outlet Port

Push In 6 mm

Number of Outlet Ports

1

Thread Material

Brass

Minimum Operating Temperature

0°C

Body Material

Brass

Chemical Resistant

Yes

Maximum Operating Pressure

20 bar

Maximum Operating Temperature

+150°C

Finish

Nickel Plated

Mounting Type

Inline

Angle

Straight

Food Grade

Yes

Standards Met

ANSI/NSF 51, FDA 21 CFR 177.1595, FDA 21 CFR 177.2600, NSF H1 Reg. No. 128787

COO (Country of Origin):
IT

Festo Pneumatic Fitting, Straight Threaded Adaptor, 20 Bar Maximum Operating Pressure - NPQH-D-G18F-Q6-P10


For seamless thread-to-tube links in your pneumatic system, go for this adaptor from Festo. It lets you link an air supply from a pipe to a hose outlet. Made entirely of durable nickel-plated brass, this unit is resistant to corrosion, meaning it performs reliably in damp or humid environments. The material also has a high temperature tolerance up to +150°C, so you can use it safely in heating units. Thanks to a maximum operating pressure of 20 bar, this adaptor is a practical choice for heavy-duty applications.

• FPM seal to prevent leakages and keep out contaminants for optimal performance
• Nickel-plated brass release ring for quick and simple detachment of tubes
• Installation doesn't need any complex tools, saving time and effort
• Low weight of 15.2g for easy handling

Applications


• Marine engineering
• Mining and construction vehicles
• Machine tools

What media is this adapter suited to?


You can use this adaptor to transmit both compressed air and water.

Is this adaptor resistant to chemicals?


Yes, the body is made of brass, so it can withstand use with common industrial chemicals.
