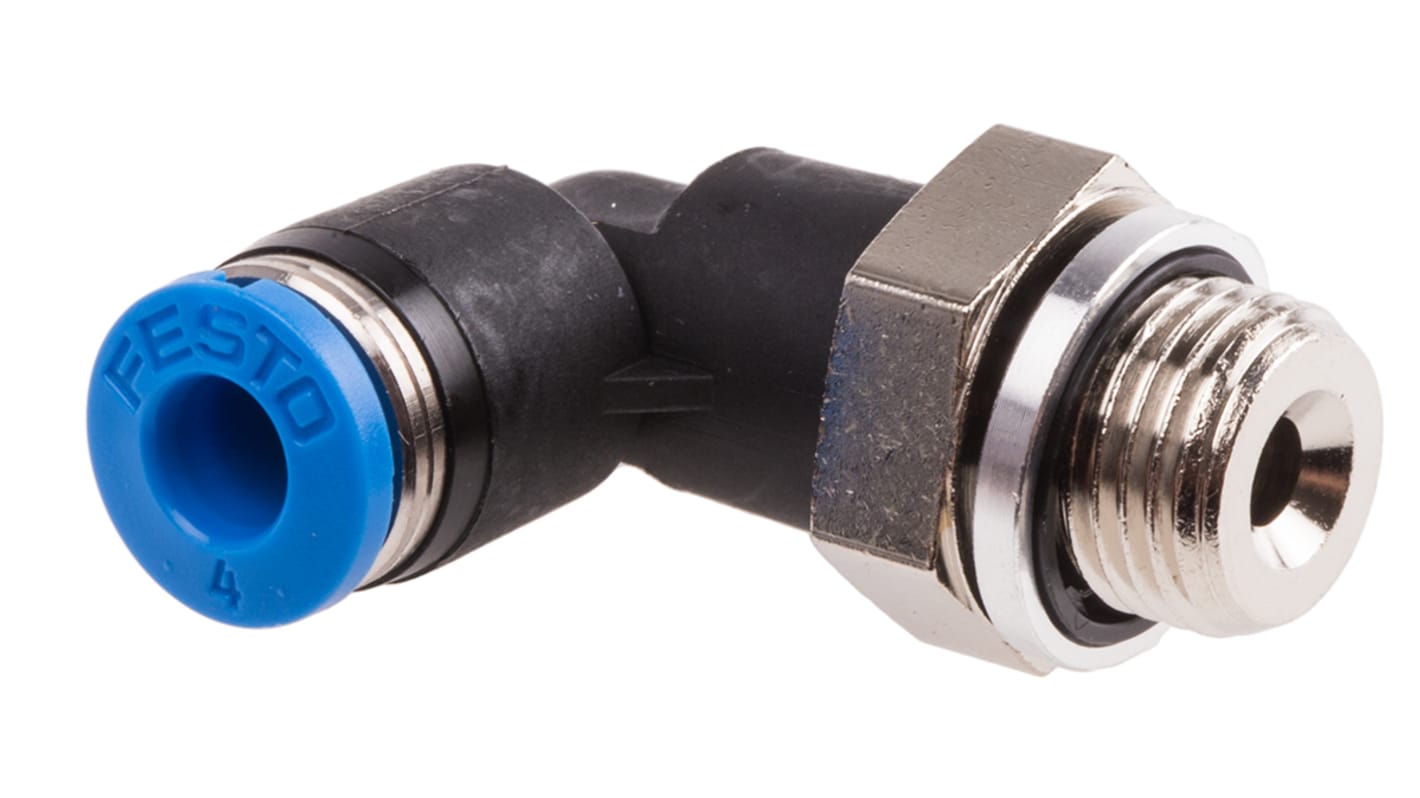

Festo QSL Series, 186116 Nickel Plated Brass Pneumatic Fitting, Male, G 1/8 in, G, 4mm Push-in
- RS Stock No.:
- 121-6132
- Distrelec Article No.:
- 304-30-398
- Mfr. Part No.:
- QSL-G1/8-4
- Brand:
- Festo
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
£33.70
(exc. VAT)
£40.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 98 unit(s) ready to ship
- Plus 34 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £33.70 | £3.37 |
| 5 - 9 | £32.35 | £3.235 |
| 10 + | £31.01 | £3.101 |
*price indicative
- RS Stock No.:
- 121-6132
- Distrelec Article No.:
- 304-30-398
- Mfr. Part No.:
- QSL-G1/8-4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Fitting | |
| Connection Thread Size | G 1/8 in | |
| Connection Thread Standard | G | |
| Connection Size A | G 1/8 Male | |
| Connection Type | Threaded-to-Tube | |
| Tube Connection Type | Push-in | |
| Tube Connection Size | 4mm | |
| Connection Size B | Push In 4 mm | |
| Series | QSL | |
| Connection Gender | Male | |
| Material | Nickel Plated Brass | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Chemical Resistant | Yes | |
| Maximum Operating Pressure | 14 bar | |
| Angle | 90° | |
| Food Grade | No | |
| Finish | Nickel | |
| Model Number | 186116 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Fitting | ||
Connection Thread Size G 1/8 in | ||
Connection Thread Standard G | ||
Connection Size A G 1/8 Male | ||
Connection Type Threaded-to-Tube | ||
Tube Connection Type Push-in | ||
Tube Connection Size 4mm | ||
Connection Size B Push In 4 mm | ||
Series QSL | ||
Connection Gender Male | ||
Material Nickel Plated Brass | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Chemical Resistant Yes | ||
Maximum Operating Pressure 14 bar | ||
Angle 90° | ||
Food Grade No | ||
Finish Nickel | ||
Model Number 186116 | ||
- COO (Country of Origin):
- TW
Festo QSL Series Pneumatic Fitting, G 1/8 Connection Thread size, 4mm Tube Connection size - QSL-G1/8-4, Numeric Part Number: 186116
This pneumatic fitting provides a Compact right-angled connection between a 4mm flexible tube and a G1/8 threaded port in industrial pneumatic systems. It is intended for use where a change of direction and a secure push-in tube Interface are required, particularly in automation and equipment assemblies that need a durable, metal-threaded link with a polymer tube retention.
Features & Benefits
• 90° orientation enables space-saving routing and reduced hose stress
• Push-in 4mm tube connection allows rapid, tool-free assembly
• Male G1/8 G-thread provides secure metal port engagement
• Nickel finish offers surface robustness in mechanical installations
• Polybutylene terephthalate body reduces weight and resists wear
• Rated to 80°C supports elevated-temperature pneumatic circuits
• Push-in 4mm tube connection allows rapid, tool-free assembly
• Male G1/8 G-thread provides secure metal port engagement
• Nickel finish offers surface robustness in mechanical installations
• Polybutylene terephthalate body reduces weight and resists wear
• Rated to 80°C supports elevated-temperature pneumatic circuits
**Applications**
• Suitable for machine automation pneumatic distribution manifolds
• Ideal for instrumentation panels with constrained routing
• Used with control valves requiring elbow tube connections
• Can be used for compressed Air lines in assembly fixtures
• Suitable for transfer lines in pneumatic actuators and grippers
• Ideal for instrumentation panels with constrained routing
• Used with control valves requiring elbow tube connections
• Can be used for compressed Air lines in assembly fixtures
• Suitable for transfer lines in pneumatic actuators and grippers
What material composes the body and how does that affect handling?
The main body is polybutylene terephthalate which gives a lightweight component with good dimensional stability and wear resistance suited to repetitive push-in connections.
How is the tube attached and removed during maintenance?
The tube uses a push-to-connect mechanism that permits quick insertion and release by depressing the retaining collet for straightforward servicing.
Which thread form is used and how does it Interface with ports?
A G standard male thread is supplied, compatible with parallel G1/8 ports and requiring appropriate sealing per installation practice.
What environmental or regulatory attribute is provided for installations?
The product conforms to RoHS requirements, ensuring restriction of specific hazardous substances in the component materials.
