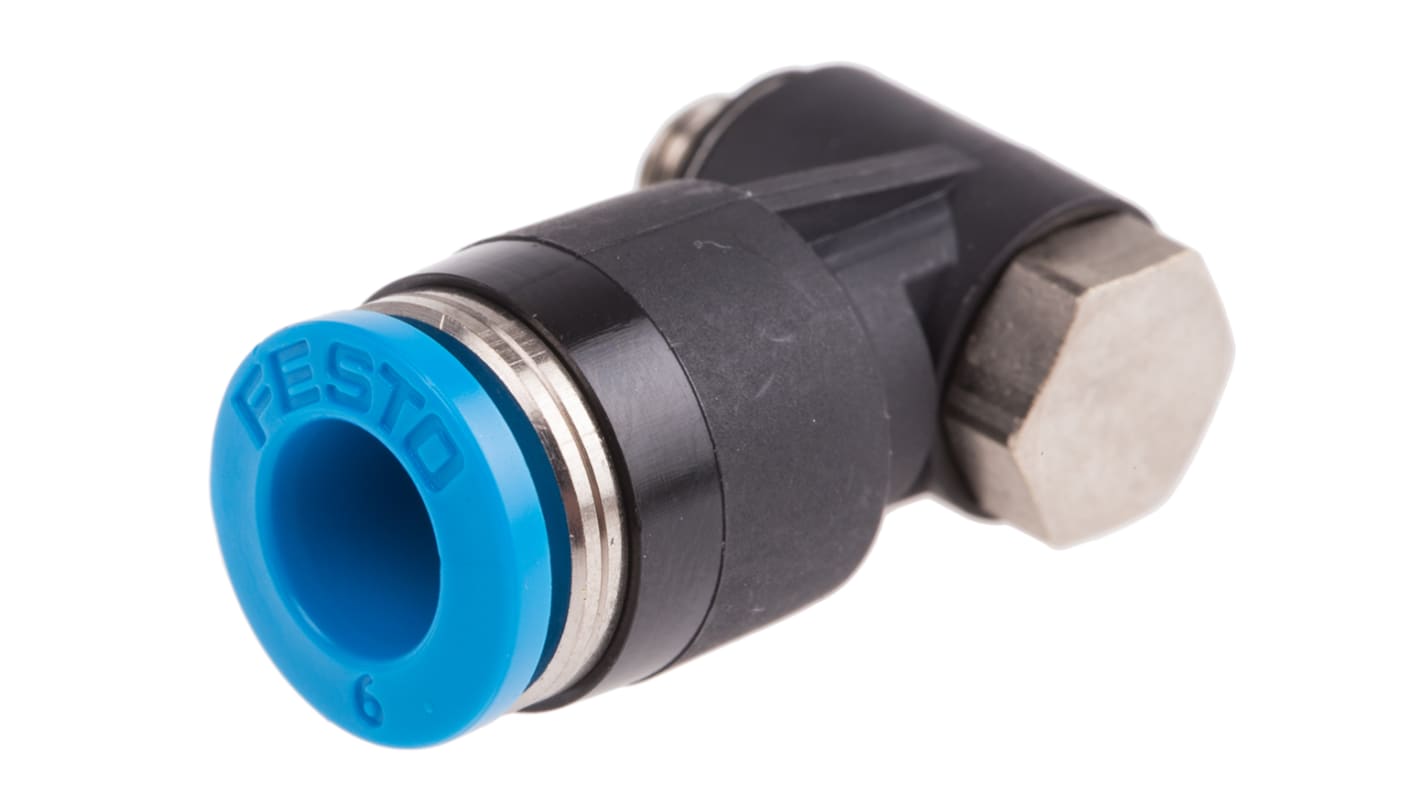

Festo QS Series Elbow Threaded Adaptor, M5 Male to Push In 6 mm, Threaded-to-Tube Connection Style, 190666
- RS Stock No.:
- 121-6092
- Mfr. Part No.:
- QSLV-M5-6
- Brand:
- Festo
Subtotal (1 bag of 10 units)*
£50.80
(exc. VAT)
£60.96
(inc. VAT)
FREE delivery for orders over £50.00
- 8 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 999,999,991 unit(s) shipping from 03 November 2025
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £50.80 | £5.08 |
5 - 9 | £48.77 | £4.877 |
10 + | £46.73 | £4.673 |
*price indicative
- RS Stock No.:
- 121-6092
- Mfr. Part No.:
- QSLV-M5-6
- Brand:
- Festo
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | M5 Male | |
Connector B | Push In 6 mm | |
Pneumatic Fitting Type | Elbow Threaded Adaptor | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | M5 Male | |
Manufacturer Series | QS | |
Inlet Port | M5 Male | |
Model Number p | 190666 | |
Number of Inlet Ports | 1 | |
Outlet Port | Push In 6 mm | |
Number of Outlet Ports | 1 | |
Thread Material | Nickel Plated Brass | |
Finish | Nickel Plated | |
Swivel Connection | Yes | |
Maximum Operating Pressure | 14 bar | |
Maximum Operating Temperature | +80°C | |
Body Material | PBT | |
Mounting Type | Inline | |
Chemical Resistant | No | |
Food Grade | No | |
Angle | 90° | |
Minimum Operating Temperature | -10°C | |
Standards Met | ISO8573-1:2010 | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A M5 Male | ||
Connector B Push In 6 mm | ||
Pneumatic Fitting Type Elbow Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection M5 Male | ||
Manufacturer Series QS | ||
Inlet Port M5 Male | ||
Model Number p 190666 | ||
Number of Inlet Ports 1 | ||
Outlet Port Push In 6 mm | ||
Number of Outlet Ports 1 | ||
Thread Material Nickel Plated Brass | ||
Finish Nickel Plated | ||
Swivel Connection Yes | ||
Maximum Operating Pressure 14 bar | ||
Maximum Operating Temperature +80°C | ||
Body Material PBT | ||
Mounting Type Inline | ||
Chemical Resistant No | ||
Food Grade No | ||
Angle 90° | ||
Minimum Operating Temperature -10°C | ||
Standards Met ISO8573-1:2010 | ||
- COO (Country of Origin):
- TW
Festo Pneumatic Elbow Fitting, Threaded-to-Tube Connection, M5 Male to Push-In 6mm - QSLV-M5-6
• Made from durable thermoplastic for a long service life
• Swivel connection can be rotated in any position
• Releasing ring allows tubing to be easily detached without causing damage to the fitting or a hose
Applications
• Heating and cooling systems
• Hoisting and lifting applications
Do I need to prepare tubing before attaching this fitting?
